SKU: QP301T/GX390E

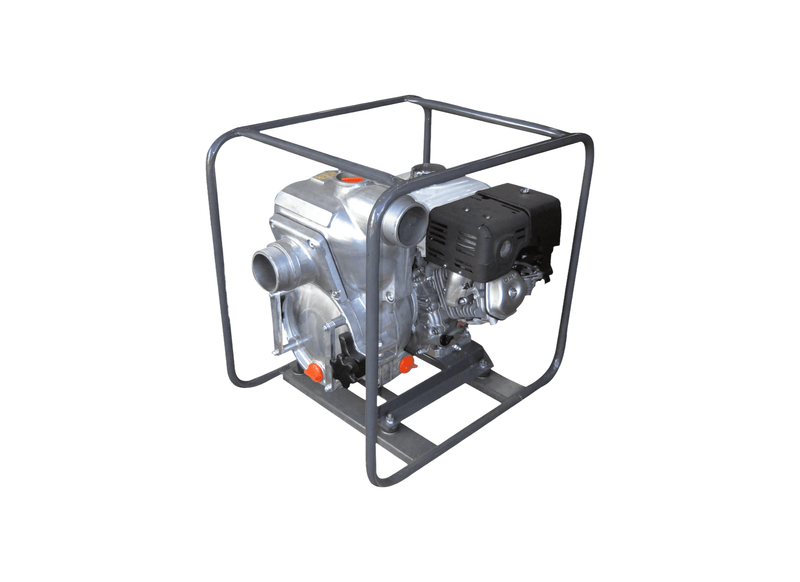

Aussie Pumps Quik Prime QP301T/GX390E Aluminium 13HP Trash Pump with Honda GX390E Petrol Electric Start Engine
Australia-Wide
(08) 9240 2992
Official Aussie Pumps
Peace of Mind
Product Overview
Major infrastructure contractors and sewer bypass teams station the Aussie Quik Prime (QP301T/GX390E) electric start high flow trash pump across deep stormwater excavations and emergency sewer bypasses. High engine output combined with large internal clearances passes coarse solids without clogging. Key-start ignition delivers fast activation when rising water threatens excavation progress.
Civil dewatering capacity achieves a maximum delivery rate of 1200 L/min and develops a maximum elevation head of 27 m. Internal casing clearances allow spherical solids up to 25 mm to travel directly through the pump body without clogging. The hydraulic assembly combines a cast casing, ductile iron open impeller, and silicon carbide mechanical seal faces with nitrile elastomers. Total equipment mass is 90 kg in standard operating trim.
Mechanical drive is provided by a Honda GX390 13HP electric start petrol engine (battery supplied separately) producing 13 HP. Plumbing connections incorporate 3" BSP male inlet & 3" BSP male outlet with front clean out port, and the self-priming wet end achieves 7.5 m vertical suction lift. Rapid self-priming internal dynamics pick up fluid swiftly without requiring manual foot valves on suction lines.
Structural fully welded steel carry frame with battery mounting tray encloses the equipment while isolating mechanical vibration and simplifying site movement. The structural mount provides balance during transport across field vehicles, trailers, and utility trays. Complete spare parts support and factory technical documentation are accessible through Aussie Pumps distribution networks across Australia.
Features
- High strength casing structure stands up to abrasive slurry season after season through 3-inch porting.
- A large internal liquid reservoir delivers fast self-priming from 7.5 m depth.
- Abrasion-proof ductile iron impeller clears 25 mm solids without binding.
- A quick-release front port allows rapid impeller chamber inspection without disconnecting lines.
- Silicon carbide seal faces keep muddy slurry from leaking at the shaft.
- Robust carry frame keeps the engine and pump safe around the site.
- Aussie Pumps covers the pump end for 5 years with 3-year Honda GX engine warranty support.
SPECIFICATIONS
| Max Flow | 1200 L/Min |
| Max Head | 27 m |
| Power | Honda GX390 Petrol Electric Start Engine |
| Suitable For | Mine Waste Pump Out |
| Body Material | Marine Grade Aluminium |
| Inlet Size | 80 mm |
| Outlet Size | 80 mm |
| Warranty | 5 Years |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What volumetric flow capacity and vertical elevation apply to this unit?
The Aussie Pumps Quik Prime Trash Pumps QP301T GX390E (QP301T/GX390E) delivers a maximum flow rate of 1200 L/min and develops a maximum head of 27 m, depending on site operating conditions.
What engine drive and starting mechanism power this assembly?
Mechanical power for the QP301T/GX390E is supplied by a Honda GX390 13HP electric start petrol engine, started via an electric key start ignition.
What plumbing connections and discharge port arrangements are fitted?
Plumbing connections for the QP301T-GX390E incorporate 80 mm BSP male intake and 80 mm BSP fittings, matching standard suction and delivery lines.
What solids clearance diameter and maintenance cleanout port are fitted?
Capable of passing up to 25 mm spherical solids, the QP301T GX390E includes a front cleanout inspection door that allows rapid chamber clearing without uncoupling suction lines.
What factory warranty protection and service support are provided?
Backed by a 5-year pump end warranty, 3-year Honda GX engine warranty, the Aussie QP301T/GX390E is supported by authorized service agents and genuine spare parts across Australia.
