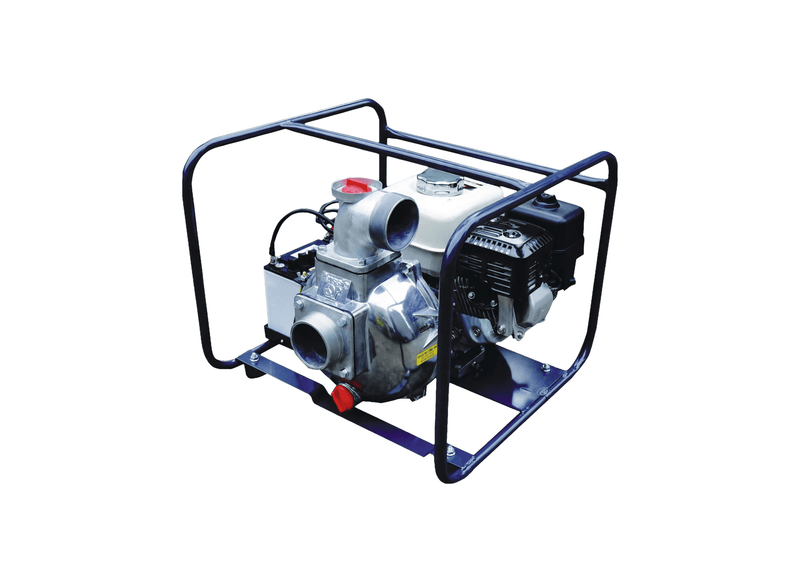

Aussie Pumps Quik Prime QP303/GX200E Aluminium Gusher Pump with Honda GX200E Petrol Electric Start Engine
Australia-Wide
(08) 9240 2992
Official Aussie Pumps
Peace of Mind
Product Overview
Vineyard managers and mobile water tanker contractors run the Aussie Quik Prime (QP303/GX200E) electric start gusher pump for rapid filling of dust suppression carts and overhead storage reservoirs. Turnkey electric starting allows operators to start pumping immediately upon arriving at water points. The cast aluminium casing architecture withstands intense field operation during dry summer conditions.
Bulk fluid delivery achieves a maximum delivery rate of 1,000 L/min and develops a maximum pressure of 45 psi. Internal hydraulic architecture features a marine grade aluminium casing, an open vane cast iron transfer impeller, and a carbon ceramic mechanical seal with nitrile elastomers. Total equipment mass measures 35 kg in dry operating trim.
Mechanical drive is provided by a Honda GX200 6.5HP electric start petrol engine (battery supplied separately) producing 6.5HP (4.8kW) Petrol. Plumbing connections incorporate 3" BSP male inlet & 3" BSP male outlet, and the self-priming wet end achieves 7.6 m vertical suction lift. Rapid self-priming internal dynamics pick up fluid swiftly without requiring manual foot valves on suction lines.
Full roll frame with battery tray & colour-coded battery leads encloses the equipment while isolating mechanical vibration and simplifying site movement. The structural mount provides balance during transport across field vehicles, trailers, and utility trays. Complete spare parts support and factory technical documentation are accessible through Aussie Pumps distribution networks across Australia.
Features
- High tensile marine grade aluminium casing resists corrosion through continuous water service.
- Big belly priming chamber picks up prime fast from 7.6 m.
- An open vane cast iron impeller moves 1000 L/min with low petrol fuel usage.
- Large diameter suction and discharge ports maximize bulk transfer rates through 3-inch porting.
- The serviceable suction valve holds prime in the casing between jobs.
- Site-proof roll frame guards the pump engine and pump on rough ground.
- Aussie Pumps covers the pump end for 5 years with 3-year Honda GX engine warranty support.
SPECIFICATIONS
| Max Flow | 1000 L/Min |
| Max Head | 32 m |
| Power | Honda GX200 Petrol Electric Start Engine |
| Suitable For | Construction Dewatering |
| Body Material | Marine Grade Aluminium |
| Inlet Size | 80 mm |
| Outlet Size | 80 mm |
| Warranty | 5 Years |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Which motor drive and ignition setup power this water pump?
Driven by a genuine Honda GX200 6.5HP electric start petrol engine, the Aussie Pumps Quik Prime QP303 Gusher Electric (QP303/GX200E) utilizes an electric key start ignition for reliable operation in the field.
How deep can this self priming pump draw water vertically?
The QP303/GX200E achieves rapid self-priming from up to 7.6 m vertical suction lift, drafting water from open sources without manual line filling once charged.
What maximum pumping volume and static head does this equipment develop?
Rated for a maximum flow of 1,000 L/min and a maximum head of 32 m, the QP303-GX200E adjusts volumetric output across its performance curve.
What factory warranty backing and technical support are included?
Equipment reliability for the QP303 GX200E is backed by a 5-year pump end warranty, 3-year Honda GX engine warranty, offering nationwide service agent and spare parts support.
Which pipe thread sizes and outlet options are featured?
Fitted with a 80 mm BSP suction port and 80 mm BSP discharge arrangement, the Aussie QP303/GX200E connects straightforwardly to field hoses.
