SKU: QP303/GX200E NF

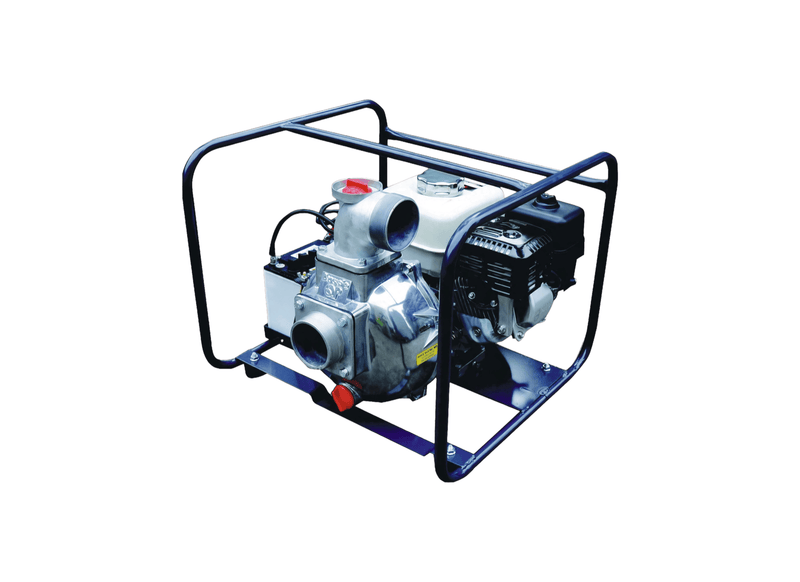

Aussie Pumps Quik Prime QP303/GX200E NF Aluminium 6.5HP Base Mount Transfer Pump with Honda Petrol Engine
Australia-Wide
(08) 9240 2992
Official Aussie Pumps
Peace of Mind
Product Overview
On farms, water carts, and mobile equipment skids, this frame-free base configuration is intended for high-volume water transfer. Its space-saving layout enables straightforward mounting in tight compartments. Built for proven fluid handling across demanding agricultural, civil, and commercial operations.
Hydraulic performance encompasses a maximum shut-off head of 32 m (45 PSI) at zero flow and an open-discharge flow capacity of up to 1,000 L/min at zero static head. Built with a marine-grade aluminium casing and volute, the wet end houses an open cast-iron impeller and carbon ceramic mechanical seal with nitrile elastomers. High-tensile body metallurgy resists outdoor weathering and operational casing wear.
Power is supplied by a commercial Honda GX200 (6.5 HP) petrol engine featuring electric start (battery kit not included). Plumbing connections incorporate full 3" x 3" BSP male ports, while the self-priming internal hydraulics pick up prime reliably from vertical suction depths up to 7.6 m. Commercial Honda engine drive provides Steady starting torque and proven operation.
Built with replaceable flanged suction ports, zinc-plated casing bolts, and polycarbonate drain plugs to streamline field maintenance during peak pumping operations. Technical assembly documentation, schematics, and genuine replacement parts are available nationwide through distributor networks.
Features- High-capacity 3-inch porting achieves a maximum flow rate of 1,000 L/min.
- Open cast-iron impeller paired with a marine-grade aluminium volute and casing.
- Electric-start Honda GX200 (6.5 HP) petrol engine delivers proven starting performance (battery kit not included).
- Frame-free base-mounted configuration (NF) fits space-constrained equipment compartments.
- Self-priming internal wet end draws fluid from vertical suction depths up to 7.6 m.
- Replaceable flanged suction port simplifies routine field inspection and maintenance.
- Includes a 5-year Aussie Pumps warranty on the pump body and a 3-year Honda GX engine warranty.
SPECIFICATIONS
| Max Flow | 1000 L/Min |
| Max Head | 32 m |
| Power | Honda GX200 Electric Start Petrol Engine |
| Suitable For | Bulk Water Transfer |
| Body Material | Marine Grade Aluminium |
| Inlet Size | 80 mm |
| Outlet Size | 80 mm |
| Warranty | 5 Years |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Which motor configuration and ignition system drive the pump?
Driven by a Honda GX200 6.5HP electric-start petrol engine, the Aussie Pumps Gusher QP303 (QP303/GX200E NF) utilizes turnkey electric start for dependable starting in field conditions.
What maximum water delivery and discharge head are developed?
Rated for a maximum flow of approximately 1,000 L/min and a maximum head of approximately 32 m, the QP303/GX200E NF adjusts volumetric output across its performance curve.
What vertical suction lift capability is available without line flooding?
Capable of vertical suction lift up to approximately 7.6 m, the QP303-GX200E-NF primes swiftly from low-lying dams and waterways once charged.
What installation advantage does the open frame-free base plate provide?
Built in an open base-mounted layout, the QP303 GX200E NF integrates directly into tight machinery compartments and service truck decks where full frames cannot fit.
How is this unit covered under manufacturer warranty terms?
Backed by a 5-year pump end warranty and a 3-year Honda GX engine warranty, the QP303/GX200E/NF is supported by authorized service agents and genuine spare parts across Australia.
