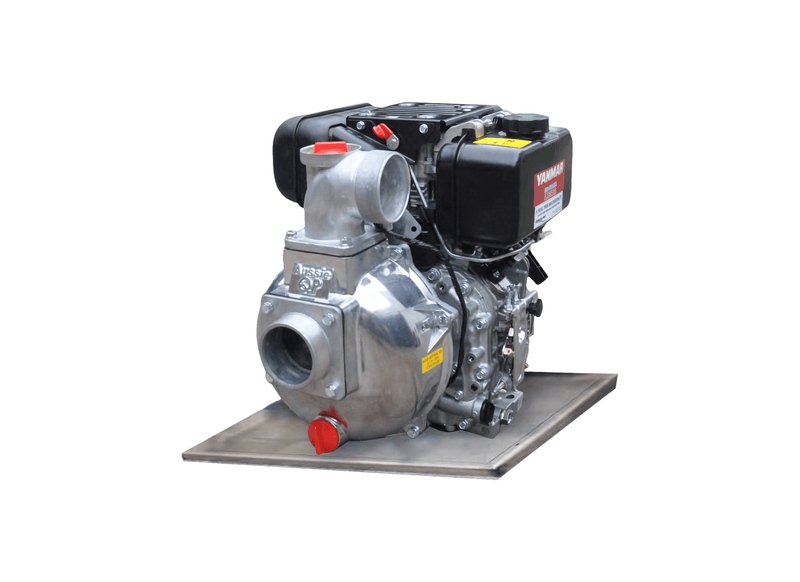

Aussie Pumps Quik Prime QP303/L48ENFSOL Aluminium 4.8HP Solenoid Base Mount Transfer Pump with Yanmar Diesel Engine
Australia-Wide
(08) 9240 2992
Official Aussie Pumps
Peace of Mind
Product Overview
High-volume transfer through a frame-free base configuration is the defining setup here, with a factory-fitted engine stop/start solenoid. Its compact structure simplifies installation on mobile service trucks and stationary pumping skids where frames are absent.
Hydraulic performance encompasses a maximum shut-off head of 30 m (43 PSI) at zero flow and an open-discharge flow capacity of up to 1,050 L/min at zero static head. Built with a marine-grade aluminium casing and volute, the wet end houses an open cast-iron impeller and carbon ceramic mechanical seal with nitrile elastomers. Mass: 45 kg. High-tensile body metallurgy resists outdoor weathering.
Powered by an electric-start Yanmar L48 (4.8 HP) diesel engine with stop/start solenoid (battery kit not included). Plumbing connections feature full 3" x 3" BSP male ports, while the self-priming internal wet end draws water from vertical suction depths up to 7.6 m. High-torque Yanmar diesel engine drive delivers strong fuel economy.
Built with replaceable flanged suction ports and polycarbonate priming/drain plugs for straightforward field servicing. Supported by complete technical assembly documentation, product schematics, and replacement component stockists through Aussie Pumps authorized distribution networks. Polycarbonate priming plugs and zinc-plated casing bolts simplify routine on-site servicing.
Features- Engine stop/start solenoid fitted for convenient key-switch starting and shutdown.
- High-capacity 3-inch porting achieves a maximum flow rate of 1,050 L/min.
- Open cast-iron impeller paired with a marine-grade aluminium volute and casing.
- Electric-start Yanmar L48 (4.8 HP) diesel engine (battery kit not included).
- Frame-free base-mounted configuration (NF) fits space-constrained equipment compartments.
- Self-priming internal wet end draws fluid from vertical suction depths up to 7.6 m.
- Includes a 5-year Aussie Pumps warranty on the pump body and a 2-year Yanmar diesel engine warranty.
SPECIFICATIONS
| Max Flow | 1050 L/Min |
| Max Head | 30 m |
| Power | Yanmar L48 Diesel Solenoid Start Engine |
| Suitable For | Dust Suppression |
| Body Material | Marine Grade Aluminium |
| Inlet Size | 80 mm |
| Outlet Size | 80 mm |
| Warranty | 5 Years |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What maximum throughput and vertical discharge height are rated?
Under peak operating conditions, the Aussie Pumps Gusher QP303 (QP303/L48ENFSOL) develops a maximum discharge head of approximately 30 m and provides a maximum flow rate of approximately 1,050 L/min.
What operational benefit does the integrated engine stop solenoid provide for tanker operations?
The QP303/L48ENFSOL integrates a 12-volt stop solenoid wired for automated or cab-mounted ignition cutoff, stopping fuel feed instantly when tank levels reach capacity.
How are the suction intake and discharge ports plumbed?
Connections provided on the QP303-L48ENFSOL include 3" BSP male threaded suction and discharge connections, accommodating standard irrigation and fire hoses.
What drive motor and ignition method are supplied with the pump?
Operating on a Yanmar L48 4.8HP electric-start diesel engine, the QP303 L48ENFSOL provides smooth rotational drive initiated through key-switch electric starting and stop solenoid.
From what vertical depth can this unit self prime?
The QP303/L48ENFSOL pulls fluid from vertical depths reaching up to approximately 7.6 m, making open trench dewatering straightforward.
