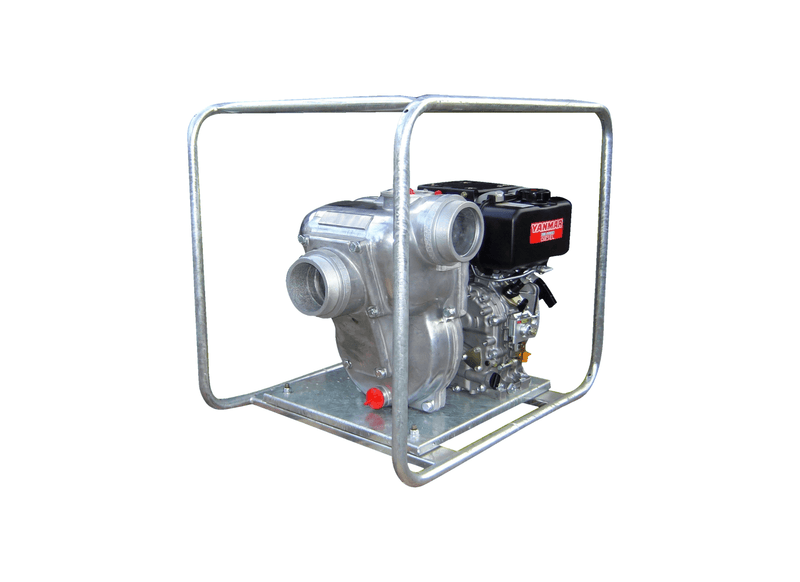

Aussie Pumps Quik Prime QP310/L100E Aluminium 10HP Gusher Pump with Yanmar L100E Diesel Engine
Australia-Wide
(08) 9240 2992
Official Aussie Pumps
Peace of Mind
Product Overview
Civil road contractors and commercial quarry operators deploy the Aussie Quik Prime (QP310/L100E) electric start diesel high flow gusher pump for rapid dust suppression cart refilling and site dewatering around active excavations. The diesel engine delivers steady hydraulic throughput to minimize tanker downtime. The self-priming casing clears suction line air quickly without manual priming pumps.
Bulk fluid delivery achieves a maximum delivery rate of 1,300 L/min and develops a maximum pressure of 43 psi. Internal hydraulic architecture features a marine grade aluminium casing, an open vane cast iron transfer impeller, and a carbon ceramic mechanical seal with nitrile elastomers. Total equipment mass measures 105 kg in dry operating trim.
Mechanical drive is provided by a Yanmar L100 10HP electric start diesel engine (battery supplied separately) producing 10HP (7.4kW) Diesel. Plumbing connections incorporate 3" BSP male inlet & 3" BSP male outlet, and the self-priming wet end achieves 8.2 m vertical suction lift. Rapid self-priming internal dynamics pick up fluid swiftly without requiring manual foot valves on suction lines.
Heavy duty roll frame with battery tray & leads encloses the equipment while isolating mechanical vibration and simplifying site movement. The structural mount provides balance during transport across field vehicles, trailers, and utility trays. Complete spare parts support and factory technical documentation are accessible through Aussie Pumps distribution networks across Australia.
Features
- High tensile marine grade aluminium casing resists corrosion through continuous water service.
- Big belly priming chamber picks up prime fast from 8.2 m.
- An open vane cast iron impeller moves 1300 L/min with low diesel fuel usage.
- Large diameter suction and discharge ports maximize bulk transfer rates through 3-inch porting.
- The serviceable suction valve holds prime in the casing between jobs.
- Site-proof roll frame guards the pump engine and pump on rough ground.
- Aussie Pumps covers the pump end for 5 years with 2-year Yanmar engine warranty support.
SPECIFICATIONS
| Max Flow | 1300 L/Min |
| Max Head | 30 m |
| Power | Yanmar L100 Diesel Electric Start Engine |
| Suitable For | High Volume Water Transfer |
| Body Material | Marine Grade Aluminium |
| Inlet Size | 80 mm |
| Outlet Size | 80 mm |
| Warranty | 5 Years |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What pipe connection sizes and manifold types come standard?
The Aussie Pumps Quik Prime QP310 Gusher (QP310/L100E) features 80 mm BSP intake threading and 80 mm BSP delivery ports for flexible pipe and hose connections.
How much liquid volume and elevation pressure can this pump provide?
The QP310/L100E provides up to 1,300 L/min in water flow and up to 30 m in elevation head, with actual delivery determined by the operating point.
What warranty terms and spare parts backing apply in Australia?
The QP310-L100E is covered by a 5-year pump end warranty, 2-year Yanmar engine warranty, with complete spare parts access and factory documentation available Australia-wide.
What type of power unit and starting method are fitted?
The QP310 L100E features a Yanmar L100 10HP electric start diesel engine, incorporating an electric key start ignition to get pumping quickly.
How deep can this self priming pump draw water vertically?
The Aussie QP310/L100E achieves rapid self-priming from up to 8.2 m vertical suction lift, drafting water from open sources without manual line filling once charged.
