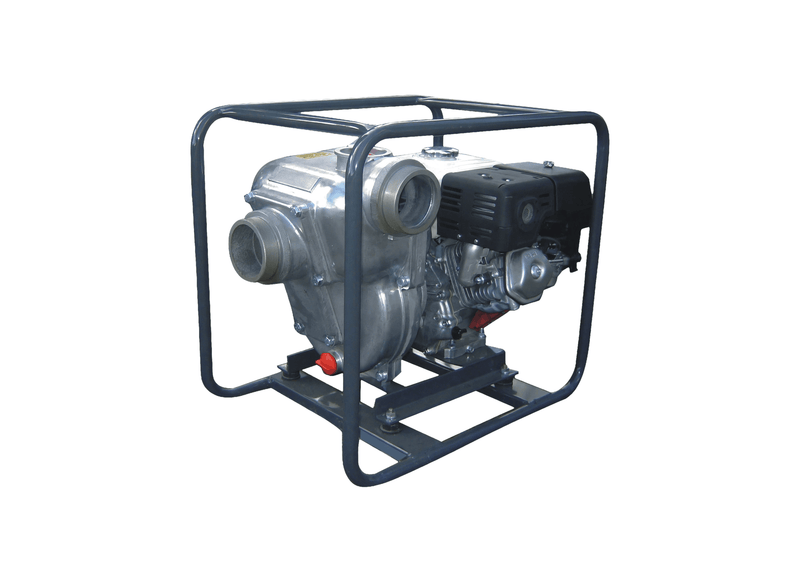

Aussie Pumps Quik Prime QP402/GX240 Aluminium 8HP Gusher Pump with Honda GX240 Petrol Engine
Australia-Wide
(08) 9240 2992
Official Aussie Pumps
Peace of Mind
Product Overview
Broadacre flood irrigators and civil engineering crews deploy the Aussie Quik Prime (QP402/GX240) high volume gusher pump with wide ports for moving vast volumes of water across agricultural irrigation bays and clearing flooded construction zones. Enlarged port connections minimize line friction to allow maximum volumetric delivery. The marine grade aluminium casting provides high structural integrity while keeping the unit mobile on site.
Bulk fluid delivery achieves a maximum delivery rate of 1,600 L/min and develops a maximum pressure of 43 psi. Internal hydraulic architecture features a marine grade aluminium casing, an open vane cast iron transfer impeller, and a carbon ceramic mechanical seal with nitrile elastomers. Total equipment mass measures 70 kg in dry operating trim.
Mechanical drive is provided by a Honda GX240 8HP recoil start petrol engine producing 8HP (5.9kW) Petrol. Plumbing connections incorporate 4" BSP male inlet & 4" BSP male outlet, and the self-priming wet end achieves 8.2 m vertical suction lift. Rapid self-priming internal dynamics pick up fluid swiftly without requiring manual foot valves on suction lines.
Heavy duty roll frame with anti-vibration mounts encloses the equipment while isolating mechanical vibration and simplifying site movement. The structural mount provides balance during transport across field vehicles, trailers, and utility trays. Complete spare parts support and factory technical documentation are accessible through Aussie Pumps distribution networks across Australia.
Features
- The 4-inch alloy body shrugs off corrosion across seasons of farm use.
- A large internal liquid reservoir delivers fast self-priming from 8.2 m depth.
- Big open vanes shift high fluid volumes economically through 4-inch porting.
- Large diameter suction and discharge ports maximize bulk transfer rates through 4-inch porting.
- A replaceable suction check valve retains liquid in the pump casing to avoid re-priming.
- Site-proof roll frame guards the pump engine and pump on rough ground.
- Backed by a 5-year pump end warranty from Aussie Pumps with 3-year Honda GX engine cover.
SPECIFICATIONS
| Max Flow | 1600 L/Min |
| Max Head | 30 m |
| Power | Honda GX240 Petrol Engine |
| Suitable For | Tanker Fill |
| Body Material | Marine Grade Aluminium |
| Inlet Size | 100 mm |
| Outlet Size | 100 mm |
| Warranty | 5 Years |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How are equipment warranty and Australian service support handled?
Coverage for the Aussie Pumps Quik Prime QP402 Gusher (QP402/GX240) includes a 5-year pump end warranty, 3-year Honda GX engine warranty, supported by certified service facilities and parts availability throughout Australia.
Which intake threading and discharge connections are provided?
The QP402/GX240 is plumbed with 100 mm BSP male suction threading and 100 mm BSP discharge ports, allowing fast hookup on site.
What suction lift performance and priming depth are achievable?
With vertical suction lift reaching up to 8.2 m, the QP402-GX240 draws water directly from dams and pits once the pump casing is charged.
What peak volumetric water displacement and head capacity apply?
The QP402 GX240 achieves a maximum flow capacity of 1,600 L/min and a maximum head limit of 30 m, varying across operating requirements.
Which mechanical engine drive and ignition arrangement are fitted?
The Aussie QP402/GX240 operates on a Honda GX240 8HP recoil start petrol engine, utilizing a manual recoil pull starter to drive the hydraulic pump assembly.
