SKU: QP402/L70

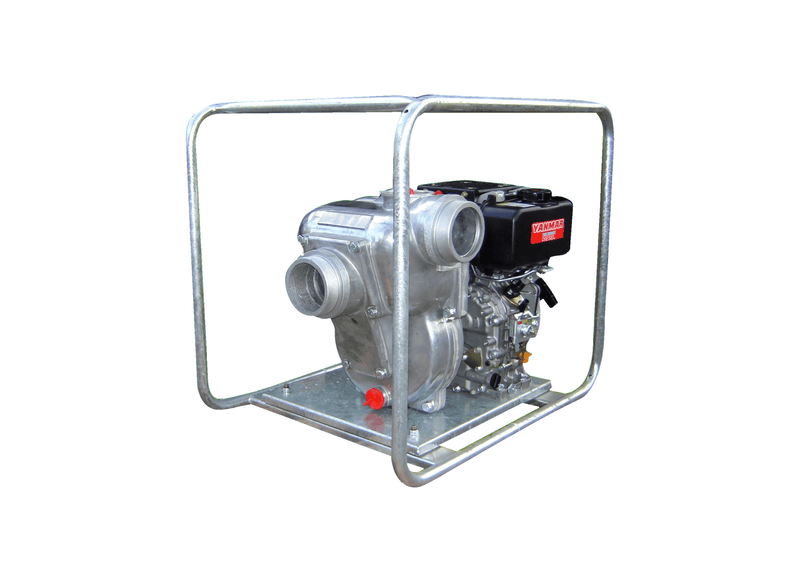

Aussie Pumps Quik Prime QP402/L70 Aluminium 7HP Gusher Pump with Yanmar L70 Diesel Engine
Australia-Wide
(08) 9240 2992
Official Aussie Pumps
Peace of Mind
Product Overview
Pastoral graziers and flood plain farmers operate the Aussie Quik Prime (QP402/L70) diesel recoil gusher pump with four-inch ports for moving vast volumes of surface water across agricultural paddocks and drainage swales. Diesel fuel economy allows long operating hours during seasonal drainage operations. Wide ports move substantial water volume quickly to reclaim inundated cropping land.
Bulk fluid delivery achieves a maximum delivery rate of 1,450 L/min and develops a maximum pressure of 43 psi. Internal hydraulic architecture features a marine grade aluminium casing, an open vane cast iron transfer impeller, and a carbon ceramic mechanical seal with nitrile elastomers. Total equipment mass measures 70 kg in dry operating trim.
Mechanical drive is provided by a Yanmar L70 7HP recoil start diesel engine producing 7HP (5.2kW) Diesel. Plumbing connections incorporate 4" BSP male inlet & 4" BSP male outlet, and the self-priming wet end achieves 8.2 m vertical suction lift. Rapid self-priming internal dynamics pick up fluid swiftly without requiring manual foot valves on suction lines.
Heavy duty roll frame with anti-vibration mounts encloses the equipment while isolating mechanical vibration and simplifying site movement. The structural mount provides balance during transport across field vehicles, trailers, and utility trays. Complete spare parts support and factory technical documentation are accessible through Aussie Pumps distribution networks across Australia.
Features
- High tensile marine grade aluminium casing resists corrosion through continuous water service.
- Big belly priming chamber picks up prime fast from 8.2 m.
- An open vane cast iron impeller moves 1450 L/min with low diesel fuel usage.
- Big ports keep 1450 L/min transfer rates flowing through 4-inch porting.
- The serviceable suction valve holds prime in the casing between jobs.
- Site-proof roll frame guards the pump engine and pump on rough ground.
- Aussie Pumps covers the pump end for 5 years with 2-year Yanmar engine warranty support.
SPECIFICATIONS
| Max Flow | 1450 L/Min |
| Max Head | 30 m |
| Power | Yanmar L70 Diesel Engine |
| Suitable For | Construction Dewatering |
| Body Material | Marine Grade Aluminium |
| Inlet Size | 100 mm |
| Outlet Size | 100 mm |
| Warranty | 5 Years |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What length of manufacturer warranty coverage protects this equipment?
Coverage for the Aussie Pumps Quik Prime QP402 Gusher (QP402/L70) includes a 5-year pump end warranty, 2-year Yanmar engine warranty, supported by certified service facilities and parts availability throughout Australia.
How is the plumbing connection arranged for intake and discharge lines?
The QP402/L70 is plumbed with 100 mm BSP male suction threading and 100 mm BSP discharge ports, allowing fast hookup on site.
How quickly does the pump establish prime from low water sources?
The QP402-L70 provides self-priming capability from up to 8.2 m vertical suction lift, picking up prime swiftly without requiring external line priming.
What are the discharge limits for volumetric flow and total head?
The QP402 L70 achieves a maximum flow capacity of 1,450 L/min and a maximum head limit of 30 m, varying across operating requirements.
Which engine package and start type are installed?
The Aussie QP402/L70 operates on a Yanmar L70 7HP recoil start diesel engine, utilizing a manual recoil pull starter to drive the hydraulic pump assembly.
