SKU: QP402/L70ENF

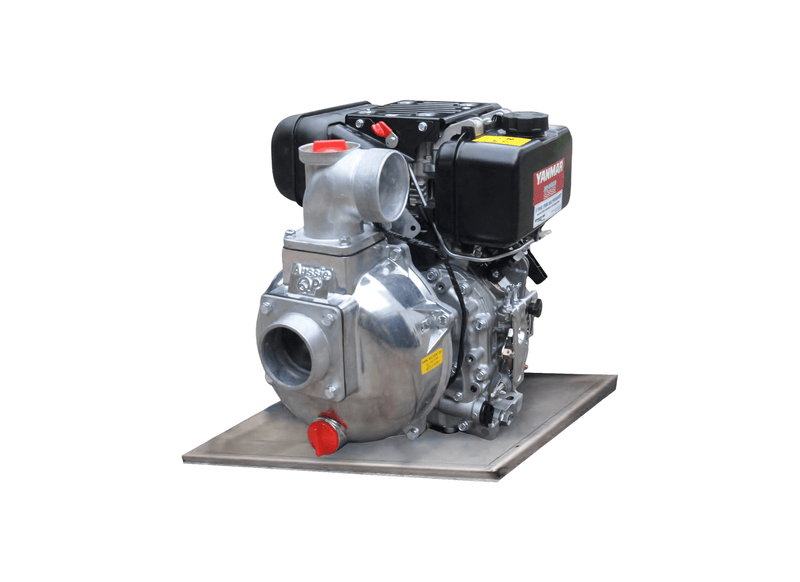

Aussie Pumps Quik Prime QP402/L70ENF Aluminium 7HP Base Mount Transfer Pump with Yanmar Diesel Engine
Australia-Wide
(08) 9240 2992
Official Aussie Pumps
Peace of Mind
Product Overview
Wide-port suction and discharge and a frame-free base trim suit this configuration to high-volume dewatering and bulk fluid transfer. Its compact footprint is designed for mounting directly onto service trailers, water carts, and pontoon skids.
Hydraulic performance encompasses a maximum shut-off head of 30 m (43 PSI) at zero flow and an open-discharge flow capacity of up to 1,450 L/min at zero static head. Constructed with a heavy marine-grade aluminium casing and high-capacity transfer impeller, dry boxed equipment mass measures 70 kg. High-tensile body metallurgy resists outdoor weathering and operational casing wear.
Driven by a high-torque Yanmar L70 (7 HP) electric-start diesel engine (battery kit not included). Plumbing connections incorporate large 4" x 4" BSP male inlet and outlet ports, supported by self-priming internal hydraulics drawing from vertical suction depths up to 8.2 m. High-torque Yanmar diesel engine drive delivers strong fuel economy and operating endurance on site.
Designed with replaceable flanged suction ports and polycarbonate drain plugs to streamline field maintenance during peak pumping operations. Technical assembly schematics, user guides, and genuine replacement parts are fully accessible through Aussie Pumps national distributor networks. Polycarbonate priming plugs and zinc-plated casing bolts simplify routine on-site servicing.
Features- Large-volume 4-inch porting delivers maximum flow rates up to 1,450 L/min.
- Yanmar L70 (7 HP) diesel engine provides high torque and operating endurance (battery kit not included).
- Self-primes from strong vertical suction depths up to 8.2 m without manual priming.
- Frame-free base-mounted layout (NF) engineered for vehicle and skid integration.
- Corrosion-resistant marine-grade aluminium casing and replaceable flanged ports.
- Electric-start ignition system delivers rapid site deployment.
- Includes a 5-year Aussie Pumps warranty on the pump body and a 2-year Yanmar diesel engine warranty.
SPECIFICATIONS
| Max Flow | 1450 L/Min |
| Max Head | 30 m |
| Power | Yanmar L70 Diesel Electric Start Engine |
| Suitable For | Flood Evacuation |
| Body Material | Marine Grade Aluminium |
| Inlet Size | 100 mm |
| Outlet Size | 100 mm |
| Warranty | 5 Years |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What connection fittings and manifold outlets are provided?
Intake and delivery ports for the Aussie Pumps Gusher High Flow QP402 (QP402/L70ENF) are configured with 4" BSP male threaded suction and discharge ports, simplifying pipe attachment.
Which engine option and starting system are installed?
Mechanical drive on the QP402/L70ENF is delivered by a Yanmar L70 6.7HP electric-start diesel engine, utilizing turnkey electric start.
Which fluid delivery rate and dynamic head are produced?
Operating across its performance curve, the QP402-L70ENF yields up to approximately 1,450 L/min in open discharge volume and up to approximately 30 m in shut-off head.
How effectively does the self priming casing draft water from low levels?
With an internal self-priming chamber, the QP402 L70ENF lifts water vertically from depths of up to approximately 7.6 m.
How does the compact frame-free footprint assist integration on bulk water trucks?
Supplied with a low-profile base mounting plate, the QP402/L70ENF secures flush onto tanker subframes and equipment decks without the height interference of an outer roll cage.
