SKU: QP40T/GX390E

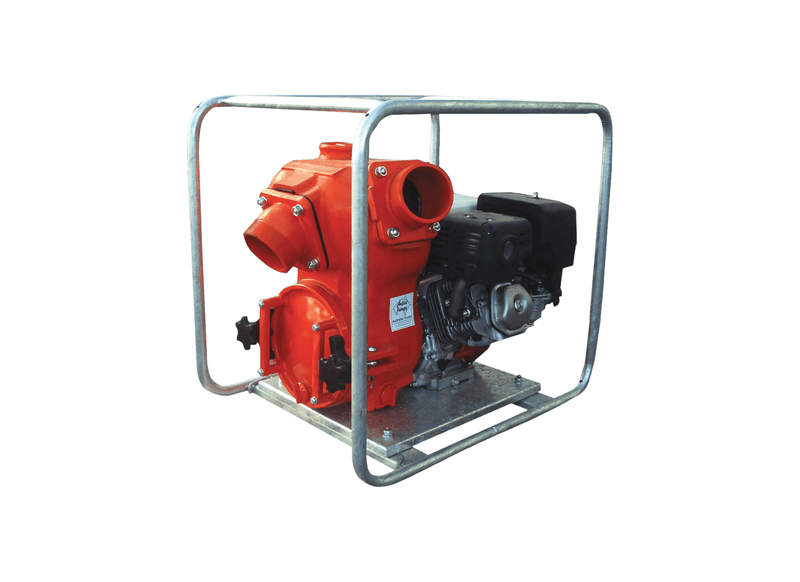

Aussie Pumps Quik Prime QP40T/GX390E Aluminium 13HP Trash Pump with Honda GX390E Petrol Electric Start Engine
Australia-Wide
(08) 9240 2992
Official Aussie Pumps
Peace of Mind
Product Overview
Mining contractors, civil tunneling teams, and port authorities deploy the Aussie Quik Prime (QP40T/GX390E) high volume trash pump for major pit dewatering and stormwater bypass operations carrying suspended debris. Wide four-inch hydraulic passages allow large spherical solids to pass directly through the pump body. Quick-release front cleanout handles enable immediate inspection without disconnecting pipework.
Civil dewatering capacity achieves a maximum delivery rate of 1,800 L/min and develops a maximum pressure of 34 psi. Total equipment mass is 90 kg in standard operating trim. Internal casing clearances allow spherical solids up to 38 mm to travel directly through the pump body without clogging. The hydraulic assembly combines a cast casing, ductile iron open impeller, and silicon carbide mechanical seal faces with nitrile elastomers.
Mechanical drive is provided by a Honda GX390 13HP electric start petrol engine (battery supplied separately) producing 13HP (9.7kW) Petrol. Plumbing connections incorporate 4" BSP male inlet & 4" BSP male outlet with front clean out port, and the self-priming wet end achieves 7.6 m vertical suction lift. Rapid self-priming internal dynamics pick up fluid swiftly without requiring manual foot valves on suction lines.
Heavy duty carry frame with battery tray & leads encloses the equipment while isolating mechanical vibration and simplifying site movement. The structural mount provides balance during transport across field vehicles, trailers, and utility trays. Complete spare parts support and factory technical documentation are accessible through Aussie Pumps distribution networks across Australia.
Features
- Abrasive slurry meets its match in this high strength cast alloy 4-inch casing.
- A large internal liquid reservoir delivers fast self-priming from 7.6 m depth.
- Abrasion-proof ductile iron impeller clears 38 mm solids without binding.
- A quick-release front port allows rapid impeller chamber inspection without disconnecting lines.
- Silicon carbide seal faces keep muddy slurry from leaking at the shaft.
- Robust carry frame keeps the engine and pump safe around the site.
- Aussie Pumps covers the pump end for 5 years with 3-year Honda GX engine warranty support.
SPECIFICATIONS
| Max Flow | 1800 L/Min |
| Max Head | 24 m |
| Power | Honda GX390 Petrol Electric Start Engine |
| Suitable For | Construction Dewatering |
| Body Material | Marine Grade Aluminium |
| Inlet Size | 100 mm |
| Outlet Size | 100 mm |
| Warranty | 5 Years |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Which motor configuration and ignition system drive the pump?
Driven by a genuine Honda GX390 13HP electric start petrol engine, the Aussie Pumps Quik Prime QP40T (QP40T/GX390E) utilizes an electric key start ignition for reliable operation in the field.
What size spherical debris can pass through the casing without clogging?
Capable of passing up to 38 mm spherical solids, the QP40T/GX390E includes a front cleanout inspection door that allows rapid chamber clearing without uncoupling suction lines.
What maximum water delivery and discharge head are developed?
Rated for a maximum flow of 1,800 L/min and a maximum head of 24 m, the QP40T-GX390E adjusts volumetric output across its performance curve.
How is this unit covered under manufacturer warranty terms?
Equipment reliability for the QP40T GX390E is backed by a 5-year pump end warranty, 3-year Honda GX engine warranty, offering nationwide service agent and spare parts support.
How are the inlet and outlet ports configured on this pump?
Fitted with a 100 mm BSP suction port and 100 mm BSP discharge arrangement, the Aussie QP40T/GX390E connects straightforwardly to field hoses.
