SKU: QP602/GX390ELRG

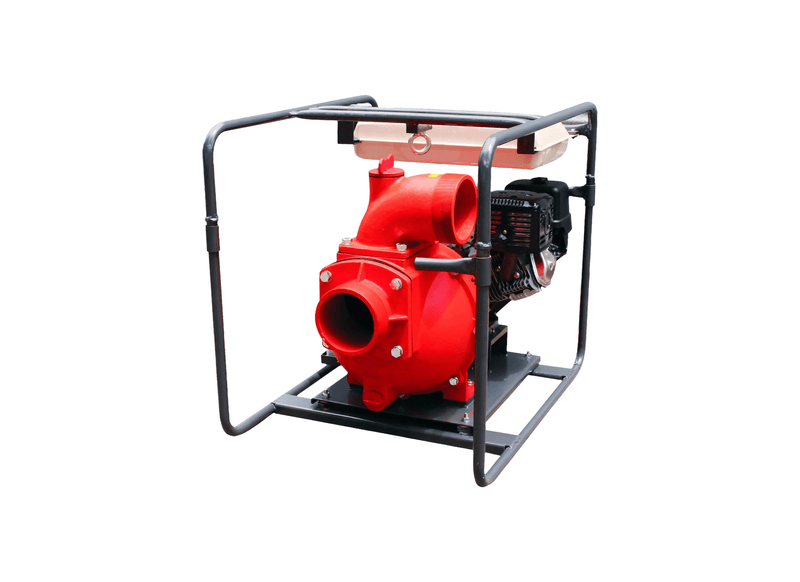

Aussie Pumps Quik Prime QP602/GX390ELRG Aluminium 13HP Water Transfer Pump with Honda GX390ELRG Petrol Engine
Australia-Wide
(08) 9240 2992
Official Aussie Pumps
Peace of Mind
Product Overview
Civil engineering contractors and regional drainage boards operate the Aussie Quik Prime (QP602/GX390ELRG) long-range gusher pump for continuous day-and-night floodwater evacuation and large civil dewatering projects. An integrated long-range fuel tank enables prolonged unattended pumping cycles without frequent refueling. The structural roll frame encloses engine and pump components to guard safety on busy construction sites.
Heavy duty roll frame with long range fuel tank & battery tray encloses the equipment while isolating mechanical vibration and simplifying site movement. The structural mount provides balance during transport across field vehicles, trailers, and utility trays. Complete spare parts support and factory technical documentation are accessible through Aussie Pumps distribution networks across Australia.
Bulk fluid delivery achieves a maximum delivery rate of 2,900 L/min and develops a maximum elevation head of 23 m. Internal hydraulic architecture features a marine grade aluminium casing, an open vane cast iron transfer impeller, and a carbon ceramic mechanical seal with nitrile elastomers. Total equipment mass measures 160 kg in dry operating trim.
Mechanical drive is provided by a Honda GX390 13HP electric start petrol engine with 18L long range fuel tank (battery supplied separately) producing 13HP (9.7kW) Petrol. Plumbing connections incorporate 6" BSP male inlet & 6" BSP male outlet, and the self-priming wet end achieves 7.4 m vertical suction lift. Rapid self-priming internal dynamics pick up fluid swiftly without requiring manual foot valves on suction lines.
Features
- The 6-inch alloy body shrugs off corrosion across seasons of farm use.
- A large internal liquid reservoir delivers fast self-priming from 7.4 m depth.
- Big open vanes shift high fluid volumes economically through 6-inch porting.
- Big ports keep 2900 L/min transfer rates flowing through 6-inch porting.
- A replaceable suction check valve retains liquid in the pump casing to avoid re-priming.
- Site-proof roll frame guards the pump engine and pump on rough ground.
- Backed by a 5-year pump end warranty from Aussie Pumps with 3-year Honda GX engine cover.
SPECIFICATIONS
| Max Flow | 2900 L/Min |
| Max Head | 23 m |
| Power | Honda GX390ELRG Petrol Electric Start Engine |
| Suitable For | Dust Suppression |
| Body Material | Marine Grade Aluminium |
| Inlet Size | 150 mm |
| Outlet Size | 150 mm |
| Warranty | 5 Years |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What vertical intake lift depth is supported during self priming?
With vertical suction lift reaching up to 7.4 m, the Aussie Pumps Quik Prime QP602 Long Range (QP602/GX390ELRG) draws water directly from dams and pits once the pump casing is charged.
Which warranty terms cover the pump casing and drive engine?
Protection for the QP602/GX390ELRG includes a 5-year pump end warranty, 3-year Honda GX engine warranty, providing verified Australian warranty backing and technical support.
How is the drive engine configured and started on this unit?
Power for the QP602-GX390ELRG comes from a Honda GX390 13HP electric start petrol engine with 16L long range fuel tank, equipped with an electric key start ignition for straightforward field deployment.
Which suction and delivery port fittings are included?
Suction intake on the QP602 GX390ELRG is provided via 150 mm BSP threading, with delivery directed through 150 mm BSP fittings.
What peak flow rate and pumping head are achievable?
Hydraulic output for the Aussie QP602/GX390ELRG reaches up to 2,900 L/min in volumetric flow and up to 23 m in total head, depending on system duty.
