SKU: QP301TED/L100E

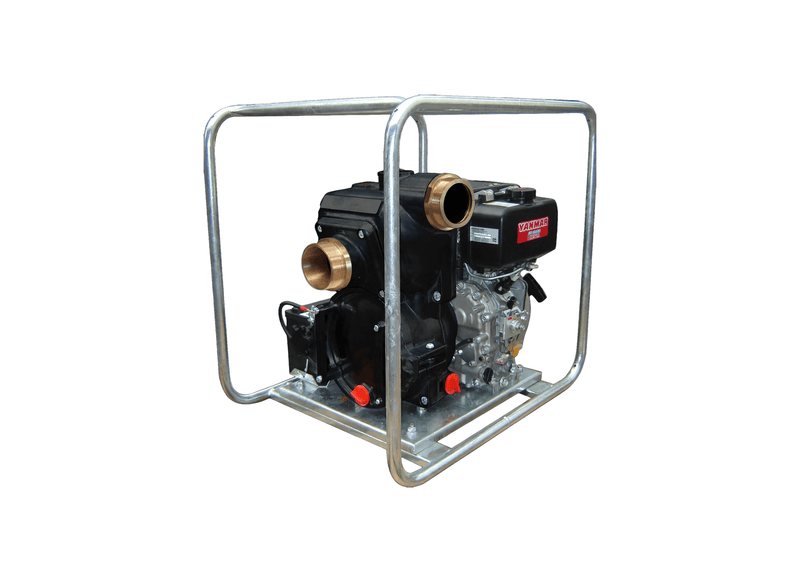

Aussie Pumps Quik Prime Skipper QP301TED/L100E Aluminium 10HP Marine Transfer Pump with Yanmar Diesel Engine
Australia-Wide
(08) 9240 2992
Official Aussie Pumps
Peace of Mind
Product Overview
NATO codification identifies this marine trash-pump configuration for defense forces, naval salvage crews, and commercial marine operators. Engineered for proven service in severe coastal and maritime.
Hydraulic performance encompasses a maximum shut-off head of 24 m (34 PSI) at zero flow and an open-discharge flow capacity of up to 1,200 L/min at zero static head. The epoxy-coated aluminium casing houses a bronze open trash impeller, bronze volute, ceramic/carbon mechanical seal, and sacrificial zinc anode protection. Equipment mass: 110 kg. High-tensile body metallurgy resists outdoor weathering and harsh operating environments.
Driven by an electric-start Yanmar L100 (10 HP) diesel engine (battery supplied separately). Plumbing connections feature 3" x 3" BSP male ports with stainless steel external fasteners, Geomet-treated couplings, and self-priming internal hydraulics drawing from suction depths up to 7.5 m. High-torque Yanmar diesel engine drive delivers strong starting reliability and fuel efficiency on site.
Built with replaceable flanged suction ports and stainless steel hardware for maritime durability in marine salvage operations. Complete technical assembly diagrams and replacement parts stockists support ongoing service through distributor networks across regional defense channels. Polycarbonate priming plugs and zinc-plated casing bolts simplify routine on-site servicing.
Features- Official NATO Codification (NSN 4320-66-165-6559) for military and commercial marine duty.
- Bronze open trash impeller and bronze volute pass solids in saltwater without binding.
- Full epoxy body coating inside and out with sacrificial zinc anode protection.
- Electric-start Yanmar L100 (10 HP) diesel engine delivers maximum operational reliability.
- High-capacity 3-inch porting moves up to 1,200 L/min of dirty saltwater effluent.
- Stainless steel external fasteners and Geomet-treated couplings included.
- Includes a 5-year Aussie Pumps warranty on the pump body and a 2-year Yanmar diesel engine warranty.
SPECIFICATIONS
| Max Flow | 1200 L/Min |
| Max Head | 24 m |
| Power | Yanmar L100 Diesel Electric Start Engine |
| Suitable For | Marine Salvage |
| Body Material | Marine Grade Aluminium |
| Inlet Size | 80 mm |
| Outlet Size | 80 mm |
| Warranty | 5 Years |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What solids handling and cleanout capabilities apply in marine salvage service?
Passing solids up to approximately 38 mm through an open impeller, the Aussie Pumps Sea Skipper Marine Trash QP301TED (QP301TED/L100E) features a quick-release front cleanout door, enabling salvage divers and deck crew to clear seaweed and debris in minutes.
How is mechanical rotation powered and started on this assembly?
The QP301TED/L100E incorporates a Yanmar L100 10HP electric-start diesel engine, set up with electric key start for field tasks.
What corrosion protection shields this marine trash unit from salt spray?
Marine epoxy coatings and sacrificial zinc anodes defend the QP301TED-L100E from harsh salt air and corrosive bilge runoff during salvage duties.
What liquid volume and dynamic elevation are developed across field duties?
Hydraulic delivery from the QP301TED L100E spans up to approximately 1,200 L/min in liquid volume and up to approximately 24 m in total elevation head.
Which warranty terms cover the pump casing and drive engine?
The QP301TED/L100E includes warranty terms comprising a 3-year Aussie Pumps trash wet end warranty and a 2-year Yanmar engine warranty, with full spare parts availability nationwide.
