SKU: RISP2BGV/4KW

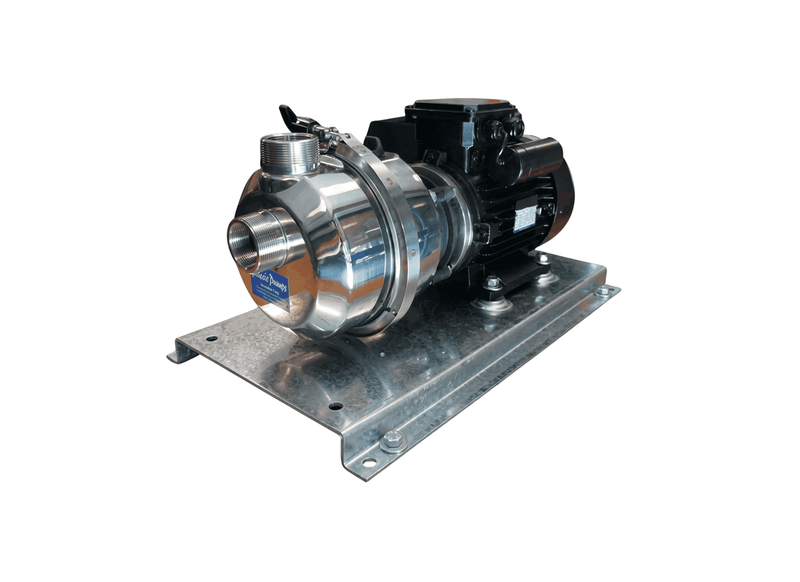

Aussie Pumps RISP2BGV/4KW 316 Stainless Steel 2" Ports Three Phase Chemical Pump with Silicon-Carbide Seal
Australia-Wide
(08) 9240 2992
Official Aussie Pumps
Peace of Mind
Product Overview
Three-phase stainless process transfer moves up to 660 litres a minute, shutting off at 23 metres in this 415 V RISP2 pump, pairing a 316 stainless casing with silicon-carbide sealing for the toughest plant chemistry. The stainless process answer. Toughest-plant stainless transfer is RISP2BGV/4KW with silicon-carbide sealing on 415 V.
Maximum flow holds 660 L/min open discharge, shutting off at 23 m head (33 PSI). The 316 stainless steel casing with polypropylene internals carries the 683 impeller with a silicon-carbide seal and Viton elastomers.
Toughest plant chemistry meets stainless process transfer on the 4 kW three-phase 415 V Protek motor in the 29 kg pump, wired without cable or plug. Silicon-carbide sealing with Viton elastomers faces chemical transfer, diesel transfer and water transfer.
Use this electric configuration for fixed chemical transfer, diesel movement and general water-transfer work. It is suited to permanent shed, workshop, plant and tank-transfer layouts where different liquids must be moved through a dedicated electrically powered pumping point.
Features
- Process-tough 4 kW 415 V three-phase Protek motor answers the toughest plant chemistry in stainless.
- Pressurised aggressive process liquids peak at 660 L/min, shutting off at 23 m (33 PSI).
- Chemistry-proof silicon-carbide seal leads resistance where standard seals surrender quickly under attack.
- Elastomer-tough Viton backup in 316 stainless keeps the process pump sealed continuously.
- Plug-free dual BSP porting at 29 kg installs into stainless process lines directly.
- Process-tough cover with 5 years pump and 1 year Melegari backs toughest-plant transfer.
- Covered by the 5 year Aussie Pumps pump end warranty and 1 year Melegari motor warranty.
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What maximum delivery throughput and dynamic elevation pressure are produced across open site lines?
Operating across its performance curve, the Aussie Pumps Stainless Steel Chemical RISP2 (RISP2BGV-4KW) discharges a maximum flow rate of approximately 660 L/min and develops a maximum elevation head of approximately 23 m.
Can the wet end clear solids laden water without jamming the rotating assembly in everyday paddock dewatering?
The 683 impeller on RISP2BGV 4KW transfers clean chemical solutions, liquid fertilizers and diesel.
What electrical specifications govern the motor connection on site during fixed installation wiring?
The close-coupled electric drive on the RISP2BGV/4KW operates with a motor rated at 4 kW 415V 3-Phase, providing steady operating torque across site duties.
What vertical intake reach does the priming chamber provide when drafting from low sumps without requiring an external foot valve?
Vertical suction capability on the RISP2BGV/4KW reaches up to 7.6 m, evacuating intake line air swiftly without requiring a flooded suction inlet.
What fluid compatibility advantages does cast stainless steel provide on site during agricultural chemical batching?
Cast 316 stainless steel wetted surfaces suit the RISP2 (RISP2BGV/4KW) for demanding transfer duties.
