SKU: RSE2BRB/2.2/240

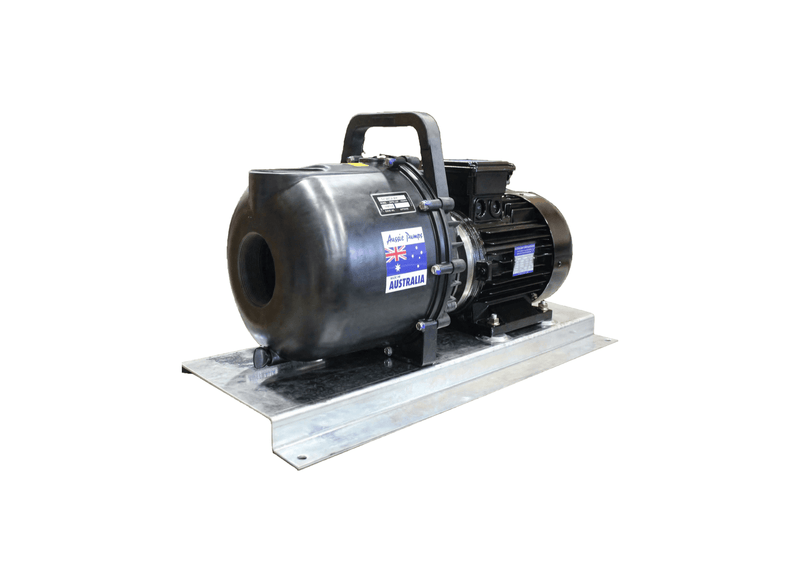

Aussie Pumps RSE2BRB/2.2/240 Polyester 2" Ports Single Phase High-Flow Chemical Transfer Pump with Protek Motor
Australia-Wide
(08) 9240 2992
Official Aussie Pumps
Peace of Mind
Product Overview
Diesel and light-oil bulk transfer on household current runs through Buna N seals in this single-phase 2-inch high-flow electric poly pump at 660 litres a minute. Fuel-grade flow without the electrician. Electrician-free fuel-grade flow is RSE2BRB/2.2/240 with Buna N seals on single phase.
Delivery holds 660 L/min open discharge, shutting off at 16 m head (23 PSI). The glass-filled polyester wet end spins the 975 impeller with Buna N seals through 50 mm ports.
Zero electrician callout is needed for the 2.2 kW single-phase 240 V Protek-protected motor in the 28 kg unit, shifting fuel-grade flow from ordinary supply. Buna N seals handle the hydrocarbon side of chemical transfer, diesel transfer and water transfer.
This electric pump is intended for chemical, diesel and general water-transfer duties in fixed installations. The application range suits sheds, workshops, plants and tank areas where a dedicated transfer point is needed for routine liquid movement between storage, process and service locations.
Features
- Callout-free 2.2 kW 240 V single-phase drive with Protek guarding moves fuel-grade flow from ordinary supply.
- Maximum flow of 660 L/min, shutting off at 16 m (23 PSI) serves diesel and oil transfer at working pace.
- Ordinary-supply 975 high-flow impeller clears bulk fuel volumes quickly on household current.
- Side-proof Buna N fuel-grade sealing handles the hydrocarbon side, with EPDM and Viton options for other liquids.
- Portable-proof 28 kg outlet unit relocates between fuel points without lifting gear.
- Callout-free backing with 5 years pump and 1 year Melegari covers fuel-grade outlet duty.
- Covered by the 5 year Aussie Pumps pump end warranty and 1 year Melegari motor warranty.
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Which maximum flow throughput and dynamic elevation head are achieved under full operating speed?
Operating across its performance curve, the Aussie Pumps Electric Chemical RSE2 (RSE2BRB-2.2-240) discharges a maximum flow rate of approximately 660 L/min and develops a maximum elevation head of approximately 16 m.
What size particulate matter can travel through the casing without clogging internal passages during dirty liquid transfer?
The 975 impeller on RSE2BRB 2.2 240 transfers clean chemical solutions, liquid fertilizers and diesel.
What electrical supply parameters are specified for connecting this motor package to initiate shaft rotation?
The close-coupled electric drive on the RSE2BRB/2.2/240 operates with a motor rated at 2.2 kW 240V 1-Phase, providing steady operating torque across site duties.
Is an auxiliary priming pump required to pull liquid from sub surface holding tanks across unflooded suction setups?
Vertical suction capability on the RSE2BRB/2.2/240 reaches up to 7.6 m, evacuating intake line air swiftly without requiring a flooded suction inlet.
How does the corrosion proof plastic wet end perform when pumping agricultural sprays across high throughput chemical transfer runs?
Molded from glass-reinforced polypropylene, the RSE2 (RSE2BRB/2.2/240) withstands harsh agricultural chemicals, liquid feeds, and corrosive fertilizers.
