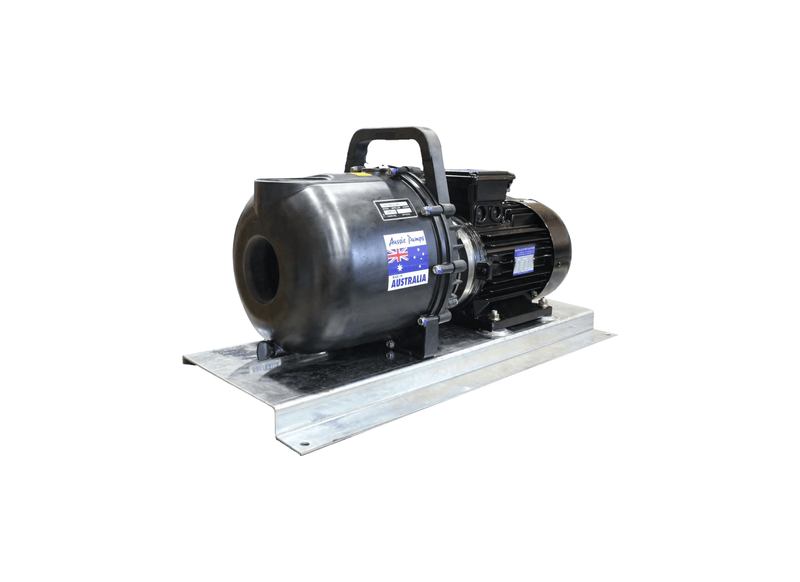

Aussie Pumps RSE2BRL/4/415 Polyester 2" Ports Three Phase High-Flow Chemical Transfer Pump with Protek Motor
Australia-Wide
(08) 9240 2992
Official Aussie Pumps
Peace of Mind
Product Overview
Process-scale 660-litre transfer on 415 V runs EPDM-sealed in this three-phase 2-inch high-flow electric poly pump, holding high-flow output for continuous chemical plants. Hard-wired volume around the clock. Round-the-clock process flow is RSE2BRL/4/415, the 415 V high-flow unit with EPDM seals.
Open-discharge capacity peaks at 660 L/min, shutting off at 16 m head (23 PSI). The glass-filled polyester high-flow wet end carries the 975 impeller with EPDM seals through 50 mm ports in a 37 kg frame.
Around-the-clock process flow uses the 4 kW three-phase 415 V Protek motor, arriving without power cable or plug for hard-wired installation in the 37 kg frame. EPDM seals hold high-flow output across chemical transfer, diesel transfer and water transfer.
Chemical transfer, diesel transfer and water transfer are the stated duties for this electric pump. It suits fixed shed, workshop, plant and tank-transfer installations where operators need an electrically driven configuration for moving process liquids, fuel or general water through dedicated transfer lines.
Features
- Clock-proof 4 kW 415 V three-phase motor with Protek drive runs process flow around the clock.
- Open flow of 660 L/min, shutting off at 16 m (23 PSI) holds high-flow output for continuous chemical plants.
- Output-proof EPDM seals with the 975 impeller suit oxidising process flows, with Buna N and Viton options available.
- Installation-ready hard-wired frame at 37 kg meets strict continuous-duty plant standards easily.
- Process-rated three-duty cover spans chemical transfer, diesel transfer and water transfer fully.
- The 30% glass-filled polyester body provides a durable wet end for fixed liquid-transfer installations.
- Covered by the 5 year Aussie Pumps pump end warranty and 1 year Melegari motor warranty.
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Is an auxiliary priming pump required to pull liquid from sub surface holding tanks across routine site transfer duties?
Built-in priming passages on the Aussie Pumps Electric Chemical RSE2 (RSE2BRL-4-415) draw fluid vertically from depths up to 7.6 m without requiring an external foot valve once the casing is filled.
Which maximum flow throughput and dynamic elevation head are achieved when discharging into storage tanks?
Across open pipeline runs, the RSE2BRL 4 415 pushes fluid at a maximum throughput of approximately 660 L/min while attaining a shut-off head ceiling of approximately 16 m.
What size particulate matter can travel through the casing without clogging internal passages across demanding site dewatering duties?
With the 975 impeller, RSE2BRL/4/415 batches clean chemicals without particulate solids.
What chemical advantages do specialized elastomer seals provide when transferring crop sprays without corroding from harsh liquid fertilizers?
Molded from glass-reinforced polypropylene, the RSE2BRL/4/415 withstands harsh agricultural chemicals, liquid feeds, and corrosive fertilizers.
Which phase connection and voltage feed are required at the terminal box during fixed installation wiring?
Incoming electrical supply operates the RSE2 (RSE2BRL/4/415) through an electric motor delivering 4 kW 415V 3-Phase.
