SKU: RSE2BRV/2.2/240

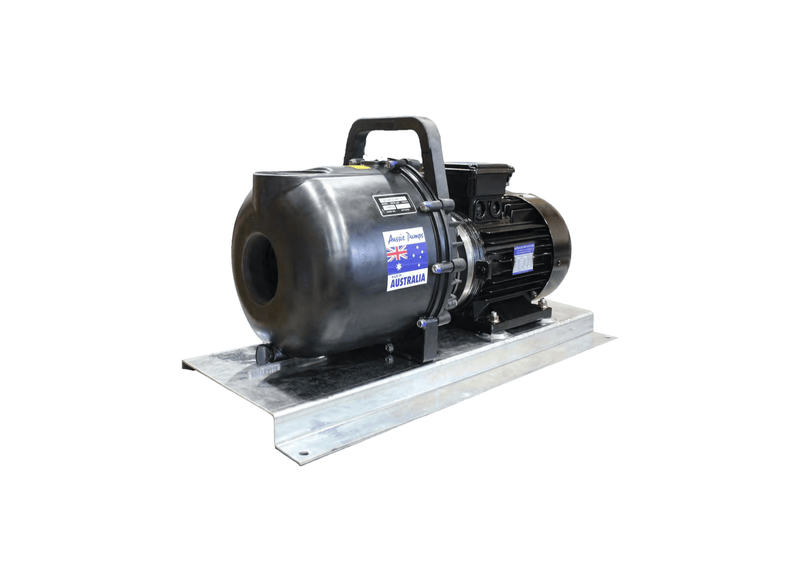

Aussie Pumps RSE2BRV/2.2/240 Polyester 2" Ports Single Phase High-Flow Chemical Transfer Pump with Protek Motor
Australia-Wide
(08) 9240 2992
Official Aussie Pumps
Peace of Mind
Product Overview
Single-phase aggressive chemical transfer at 660 litres a minute relies on Viton in this 240 V 2-inch high-flow electric poly pump, pairing volume with the toughest seal compound. Throughput that resists everything. Toughest-seal single-phase volume is RSE2BRV/2.2/240, pairing Viton with 660 litres a minute.
Maximum flow reaches 660 L/min, shutting off at 16 m head (23 PSI). The 30% glass-filled polyester wet end runs the high-flow 975 impeller with Viton seals and 50 mm waterways.
Toughest-compound volume runs on the 2.2 kW single-phase 240 V motor with Protek as standard, powering the 28 kg pump for aggressive single-phase chemistry. Viton seals pair with throughput across chemical transfer, diesel transfer and water transfer.
Use this electric configuration for fixed chemical transfer, diesel movement and general water-transfer work. It is suited to permanent shed, workshop, plant and tank-transfer layouts where different liquids must be moved through a dedicated electrically powered pumping point.
Features
- Volume-tough 2.2 kW 240 V single-phase motor with Protek standard powers aggressive single-phase chemistry.
- Toughest-compound volume peaks at 660 L/min, shutting off at 16 m (23 PSI).
- Chemistry-proof Viton seals with the 975 impeller outlast standard compounds in aggressive service.
- Aggressive-media 30% glass-filled polyester build resists chemical attack across the wet end.
- Standard-power 28 kg package delivers premium sealing on ordinary single-phase supply anywhere.
- Volume-tough cover with 5 years pump and 1 year Melegari backs toughest-seal transfer.
- Covered by the 5 year Aussie Pumps pump end warranty and 1 year Melegari motor warranty.
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What chemical advantages do specialized elastomer seals provide when transferring crop sprays across bulk liquid fertilizer tanks?
The chemical-resistant polyester housing on the Aussie Pumps Electric Chemical RSE2 (RSE2BRV-2.2-240) tolerates corrosive crop chemicals and liquid fertilizers.
What electrical supply parameters are specified for connecting this motor package across local power connections?
Incoming electrical supply operates the RSE2BRV 2.2 240 through an electric motor delivering 2.2 kW 240V 1-Phase.
Which maximum flow throughput and dynamic elevation head are achieved across long transfer runs?
Discharge performance for the RSE2BRV/2.2/240 yields an open flow volume of approximately 660 L/min and reaches a maximum shut-off elevation of approximately 16 m.
Is an auxiliary priming pump required to pull liquid from sub surface holding tanks when drafting from deep sumps?
Built-in priming passages on the RSE2BRV/2.2/240 draw fluid vertically from depths up to 7.6 m without requiring an external foot valve once the casing is filled.
What size particulate matter can travel through the casing without clogging internal passages when pumping slurry runoff?
The 975 impeller on RSE2BRV/2.2/240 transfers clean chemical solutions, liquid fertilizers and diesel.
