SKU: RSE2BRV/L48

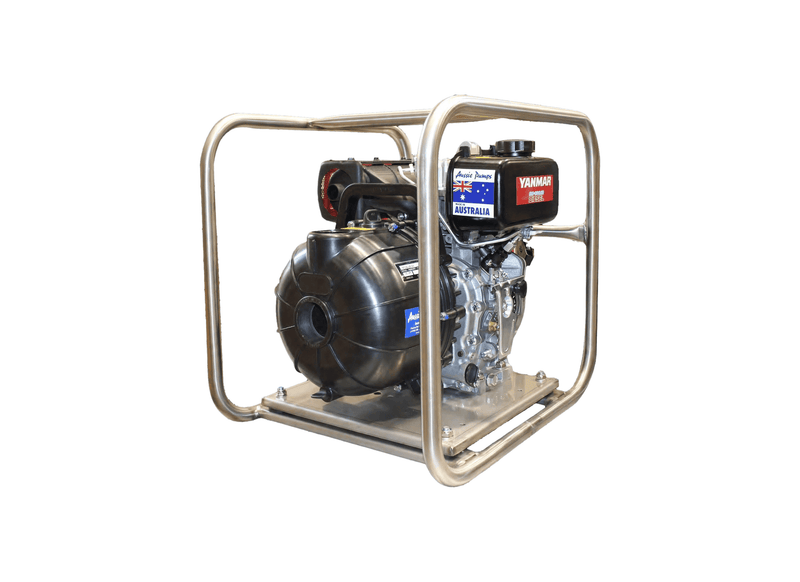

Aussie Pumps RSE2BRV/L48 Polyester High-Flow Chemical Transfer Pump with Yanmar Diesel Recoil Start Engine
Australia-Wide
(08) 9240 2992
Official Aussie Pumps
Peace of Mind
Product Overview
High-volume diesel and brine transfer on skid rails runs through this Yanmar recoil-start 2-inch high-flow poly pump, pushing up to 835 litres a minute with the 975 impeller and Viton seal. Big water, simple starting. Big-water diesel and brine transfer is RSE2BRV/L48 on Yanmar recoil skids.
Open-discharge flow tops 835 L/min, shutting off at 25 m head (36 PSI). The polyester high-flow wet end runs the 975 impeller with a Viton seal through 50 mm ports.
Simple starting meets big water in the 4.8 HP Yanmar L48 recoil-start diesel, driving the 40 kg skids-and-handles package for high-volume diesel and brine transfer. Liquid fertilizer, agricultural chemicals, diesel fuel, brine or salt water, high-volume water transfer and aquaculture are all rated.
Use this configuration for liquid-fertiliser dosing, agricultural chemical transfer, diesel movement, brine or salt-water pumping, water transfer and aquaculture. Its listed duties fit practical farm and rural liquid-handling work across paddocks, sheds, tanks, water points and aquaculture systems.
Features
- Straightforward 4.8 HP Yanmar L48 recoil-start diesel drives high-volume transfer with simple starting.
- Open flow of 835 L/min, shutting off at 25 m (36 PSI) moves diesel and brine at paddock scale. Self-priming suction comes standard.
- Big-water 975 high-flow impeller trades head for throughput where tanks sit low.
- Transfer-grade Viton seal with 50 mm waterways handles diesel, brine and ag chemicals.
- Handle-equipped 40 kg mobile package travels between tanks, dams and transfer points.
- Polyester construction is selected to suit the listed liquid-transfer application.
- Covered by the 5 year Aussie Pumps pump end warranty and 2 year Yanmar engine warranty.
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Can this pumping unit pass stringy solids and suspended grit without jamming across high volume transfer lines?
The 975 chemical impeller on RSE2BRV-L48 transfers clean solutions without suspended particles across pipework runs.
What maximum suction height is supported when drafting from below ground retention basins once the casing is charged?
The self-priming wet end on RSE2BRV L48 lifts liquid automatically from depths down to 7.6 m.
How do polypropylene wet end surfaces tolerate harsh herbicides and pesticides across high throughput chemical transfer runs?
Molded from glass-reinforced polypropylene, the RSE2BRV/L48 withstands harsh agricultural chemicals, liquid feeds, and corrosive fertilizers.
How much fluid volume per minute and static elevation height are developed when discharging into storage tanks?
Operating across its performance curve, the RSE2BRV/L48 discharges a maximum flow rate of approximately 835 L/min and develops a maximum elevation head of approximately 25 m.
What engine horsepower and ignition systems are supplied on this pumping package across mobile agricultural spray setups?
Driven by a diesel engine, the RSE2 (RSE2BRV/L48) operates independently across remote paddocks and civil sites without mains electricity.
