SKU: RSE2BRV/L48E

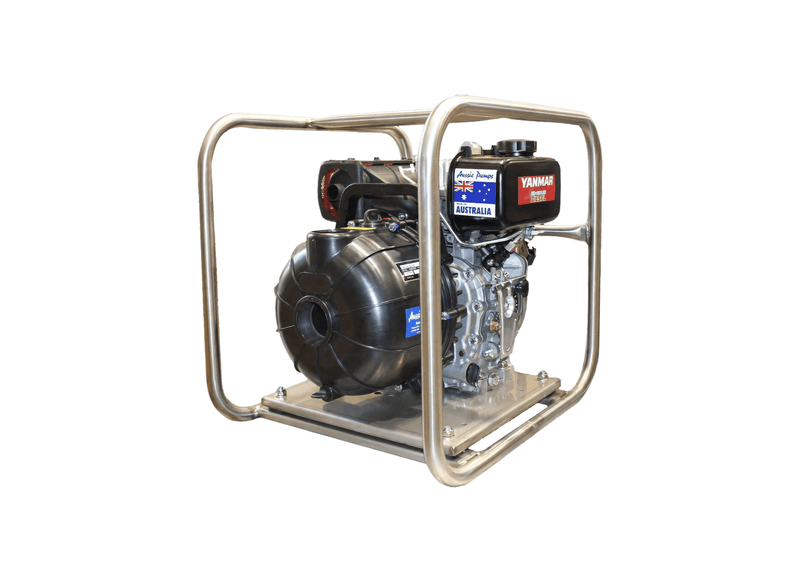

Aussie Pumps RSE2BRV/L48E Polyester Full-Frame High-Flow Chemical Pump with Yanmar Diesel Electric Start Engine
Australia-Wide
(08) 9240 2992
Official Aussie Pumps
Peace of Mind
Product Overview
Full-frame Yanmar power with push-button starting moves up to 835 litres a minute of farm chemicals in this electric-start 2-inch high-flow poly pump, pairing the 975 impeller with Viton sealing for daily transfer rounds. Key start, big flow. Push-button farm chemical rounds run RSE2BRV/L48E with full-frame Yanmar electric starting.
Maximum flow reaches 835 L/min open discharge, shutting off at 25 m head (36 PSI). The polyester wet end carries the high-flow 975 impeller with a Viton seal and 50 mm ports.
Transfer rounds run on push-button Yanmar power: the 4.8 HP L48 electric-start diesel works inside a full frame at 40 kg for key-start farm chemical duty. The rated set covers liquid fertilizer, agricultural chemicals, diesel fuel, brine or salt water, high-volume water transfer and aquaculture.
Liquid-fertiliser dosing is the lead application, with agricultural chemical transfer, diesel movement, brine or salt-water pumping, water transfer and aquaculture also listed. This gives farm and rural operators a single pump configuration for a broad spread of liquid-handling duties across paddocks, sheds and water systems.
Features
- Round-ready 4.8 HP Yanmar L48 electric start with key starting suits daily transfer rounds.
- Peak flow of 835 L/min, shutting off at 25 m (36 PSI) moves farm chemicals at station tempo. Built-in self-priming lift included.
- Key-start 975 high-flow impeller with a Viton seal pairs volume with push-button ease.
- Frame-guarded polyester wet end with 50 mm ports shrugs off round-after-round handling.
- Round-proof 40 kg protected package keeps pump and engine aligned under crew use.
- Electric start supports rapid deployment of the engine-driven package at paddock, quarry and marine sites.
- Covered by the 5 year Aussie Pumps pump end warranty and 2 year Yanmar engine warranty.
SPECIFICATIONS
| Max Flow | 835 L/Min |
| Max Head | 25 m |
| Power | Yanmar L48 Diesel Electric Start Engine |
| Suitable For | Agricultural Chemical Transfer |
| Body Material | Polyester |
| Inlet Size | 50 mm |
| Outlet Size | 50 mm |
| Warranty | 5 Years |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What open discharge capacity and total shut off head are generated through connected piping?
Operating across its performance curve, the Aussie Pumps Diesel Engine-Drive Chemical RSE2 (RSE2BRV-L48E) discharges a maximum flow rate of approximately 835 L/min and develops a maximum elevation head of approximately 25 m.
What solid particle dimensions are permitted through the internal water channels during dirty liquid transfer?
The 975 impeller on RSE2BRV L48E transfers clean chemical solutions, liquid fertilizers and diesel.
Which mechanical drive arrangement couples the engine to the pump wet end across remote field operations?
Shaft rotation on the RSE2BRV/L48E is supplied by a diesel engine package, delivering extended run times and high torque for remote dewatering.
What maximum suction height is supported when drafting from below ground retention basins across routine site transfer duties?
Vertical suction capability on the RSE2BRV/L48E reaches up to 7.6 m, evacuating intake line air swiftly without requiring a flooded suction inlet.
Why is reinforced polymer casing construction ideal for liquid fertilizer decanting during crop spraying batch operations?
Molded from glass-reinforced polypropylene, the RSE2 (RSE2BRV/L48E) withstands harsh agricultural chemicals, liquid feeds, and corrosive fertilizers.
