SKU: RSE2BUB/2.2/240

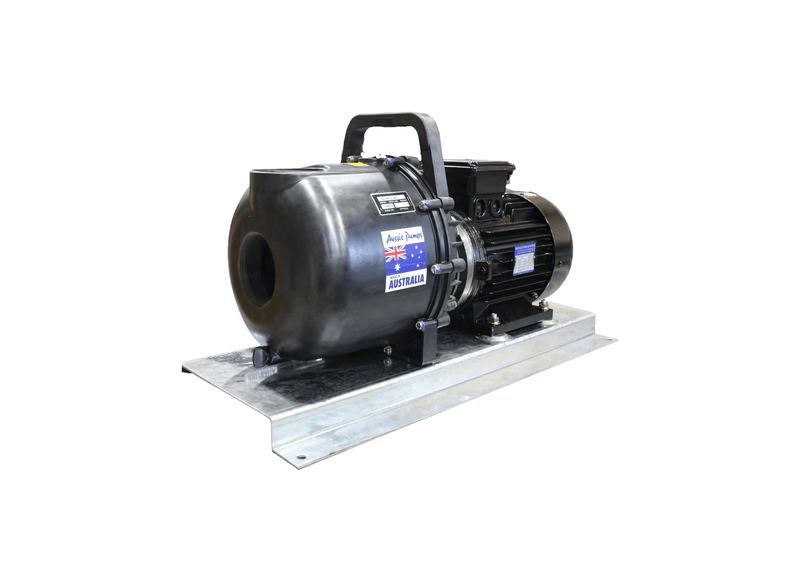

Aussie Pumps RSE2BUB/2.2/240 Polyester 2" Ports Single Phase High-Head Chemical Transfer Pump with Protek Motor
Australia-Wide
(08) 9240 2992
Official Aussie Pumps
Peace of Mind
Product Overview
Fuel-grade single-phase transfer runs through Buna N seals in this 240 V 2-inch high-head electric poly pump, moving up to 580 litres a minute, shutting off at 22.5 metres for diesel and oil duties. The Buna N variant for hydrocarbon service. Household-current hydrocarbon transfer is RSE2BUB/2.2/240 with Buna N seals fitted.
Delivery peaks at 580 L/min open flow, shutting off at 22.5 m head (32 PSI). The glass-filled polyester wet end spins the 706 impeller with Buna N seals through 50 mm waterways.
Hydrocarbon service on household current runs through the 2.2 kW single-phase 240 V motor with standard Protek protection in the 28 kg unit. The Buna N variant serves chemical transfer, diesel transfer and water transfer from ordinary outlets.
This electric pump is intended for chemical, diesel and general water-transfer duties in fixed installations. The application range suits sheds, workshops, plants and tank areas where a dedicated transfer point is needed for routine liquid movement between storage, process and service locations.
Features
- Household-current 2.2 kW 240 V single-phase drive with Protek fitted moves fuel-grade liquids from ordinary outlets.
- Maximum flow of 580 L/min, shutting off at 22.5 m (32 PSI) serves diesel and oil duties at working pressure.
- Outlet-friendly Buna N fuel-grade sealing handles hydrocarbons, with EPDM and Viton options available across the range.
- 706-impeller flow in glass-filled polyester balances pressure with a light 28 kg build.
- Variant-proof 28 kg outlet package makes the Buna N variant the hydrocarbon choice.
- Outlet backing with 5 years pump end and 1 year Melegari covers household fuel transfer.
- Covered by the 5 year Aussie Pumps pump end warranty and 1 year Melegari motor warranty.
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What maximum diameter suspended debris can pass across the pump housing across high volume transfer lines?
Designed for chemical decanting and liquid transfer, the Aussie Pumps Electric Chemical RSE2 (RSE2BUB-2.2-240) uses the 706 impeller built for clean liquids and agricultural solutions without suspended solids.
How does internal casing geometry evacuate suction line air during dry starts without requiring an external foot valve?
No foot valve is needed on the RSE2BUB 2.2 240 with a self-priming lift of up to 7.6 m once the casing is filled.
Why do agricultural spray operators select polypropylene for chemical decanting setups during crop spraying batch operations?
Molded from glass-reinforced polypropylene, the RSE2BUB/2.2/240 withstands harsh agricultural chemicals, liquid feeds, and corrosive fertilizers.
What peak fluid displacement volume and vertical head are developed through connected piping?
Discharge performance for the RSE2BUB/2.2/240 yields an open flow volume of approximately 580 L/min and reaches a maximum shut-off elevation of approximately 22.5 m.
How is electrical drive power delivered to turn the pump shaft on site during fixed installation wiring?
Incoming electrical supply operates the RSE2 (RSE2BUB/2.2/240) through an electric motor delivering 2.2 kW 240V 1-Phase.
