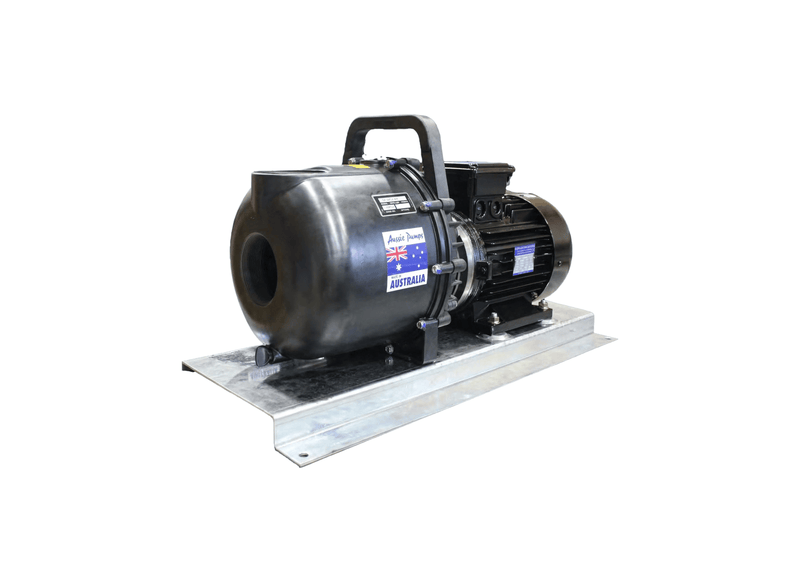

Aussie Pumps RSE2BUB/4/415 Polyester 2" Ports Three Phase High-Head Chemical Transfer Pump with Protek Motor
Australia-Wide
(08) 9240 2992
Official Aussie Pumps
Peace of Mind
Product Overview
Continuous hydrocarbon transfer on 415 V runs through Buna N seals in this three-phase 2-inch high-head electric poly pump, holding up to 580 litres a minute, shutting off at 22.5 metres for diesel day-tank service. Wired for non-stop duty. Non-stop diesel day-tank circulation is RSE2BUB/4/415 with Buna N seals on 415 V.
Delivery reaches 580 L/min open flow, shutting off at 22.5 m head (32 PSI). The glass-filled polyester wet end spins the high-head 706 impeller with Buna N seals and 50 mm waterways.
Non-stop diesel day-tank service draws on the 4 kW three-phase 415 V Protek-protected motor in the 37 kg unit, delivered without power cable or plug for panel wiring. Buna N seals face the hydrocarbon brief across chemical transfer, diesel transfer and water transfer.
This electric pump is intended for chemical, diesel and general water-transfer duties in fixed installations. The application range suits sheds, workshops, plants and tank areas where a dedicated transfer point is needed for routine liquid movement between storage, process and service locations.
Features
- Non-stop 4 kW 415 V three-phase drive with Protek protection circulates day-tank diesel around the clock.
- Open flow of 580 L/min, shutting off at 22.5 m (32 PSI) holds circulation pressure across long pipe runs.
- Brief-proof Buna N seals for day-tank diesel handle hydrocarbons continuously, with EPDM and Viton options for other media.
- Panel-wired 706 high-head hydraulics with 50 mm ports connect directly to day-tank manifolds.
- Service-proof 37 kg continuous unit withstands non-stop operation in demanding plant environments.
- The 30% glass-filled polyester body provides a durable wet end for fixed liquid-transfer installations.
- Covered by the 5 year Aussie Pumps pump end warranty and 1 year Melegari motor warranty.
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Is an auxiliary priming pump required to pull liquid from sub surface holding tanks during everyday operations?
Vertical suction capability on the Aussie Pumps Electric Chemical RSE2 (RSE2BUB-4-415) reaches up to 7.6 m, evacuating intake line air swiftly without requiring a flooded suction inlet.
What peak fluid displacement volume and vertical head are developed when discharging into storage tanks?
Under full operating throttle, the RSE2BUB 4 415 generates a maximum fluid displacement rate of approximately 580 L/min and reaches a maximum shut-off head of approximately 22.5 m.
How do the wide internal waterways clear slurry runoff without choking the suction eye during routine excavation drainage?
The 706 impeller geometry on RSE2BUB/4/415 transfers particulate-free chemical liquids.
How does the corrosion proof plastic wet end perform when pumping agricultural sprays during crop spraying batch operations?
Molded from glass-reinforced polypropylene, the RSE2BUB/4/415 withstands harsh agricultural chemicals, liquid feeds, and corrosive fertilizers.
What electrical supply parameters are specified for connecting this motor package during fixed installation wiring?
Mechanical power on the RSE2 (RSE2BUB/4/415) is delivered by an electric drive rated at 4 kW 415V 3-Phase, built for direct connection to site power.
