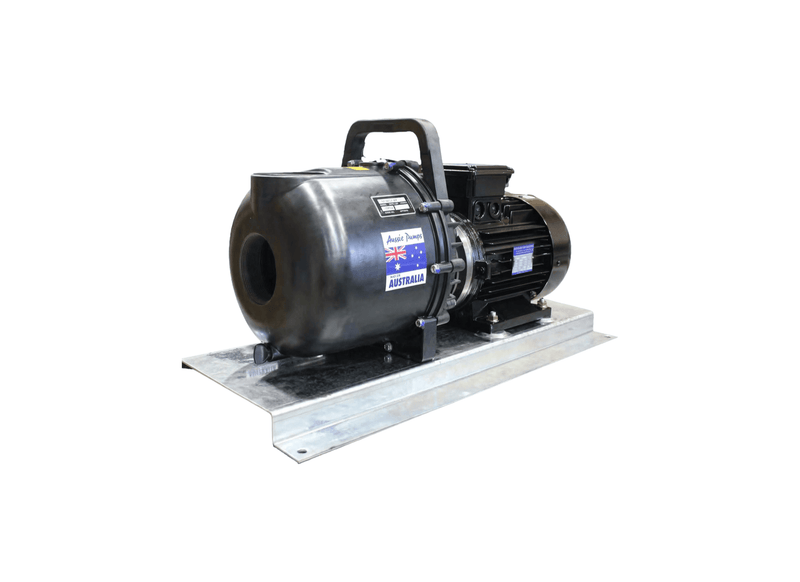

Aussie Pumps RSE2BUL/2.2/240 Polyester 2" Ports Single Phase High-Head Chemical Transfer Pump with Protek Motor
Australia-Wide
(08) 9240 2992
Official Aussie Pumps
Peace of Mind
Product Overview
Chemical sheds on standard240-volt supply dose and transfer with this single-phase 2-inch high-head electric poly pump, lifting up to 580 litres a minute, shutting off at 22.5 metres with EPDM sealing for oxidising chemicals. Plug-in power for fixed installations. Fixed-installation chemical dosing on 240 V is RSE2BUL/2.2/240 with EPDM seals fitted.
Open flow reaches 580 L/min, shutting off at 22.5 m head (32 PSI). The 30% glass-filled polyester wet end runs the high-head 706 impeller with EPDM seals through 50 mm ports in a 28 kg package.
Fixed installations gain plug-in power from the 2.2 kW single-phase 240 V motor, running Protek protection as standard in the 28 kg package. Chemical transfer, diesel transfer and water transfer form the rated application trio.
Chemical transfer, diesel transfer and water transfer are the stated duties for this electric pump. It suits fixed shed, workshop, plant and tank-transfer installations where operators need an electrically driven configuration for moving process liquids, fuel or general water through dedicated transfer lines.
Features
- Plug-in 2.2 kW 240 V single-phase motor with Protek as standard runs fixed installations from ordinary supply.
- Flow of 580 L/min, shutting off at 22.5 m (32 PSI) lifts chemicals to dosing height from the 706 impeller.
- Oxidant-tolerant EPDM seals in the 706 impeller pump suit oxidising chemicals, with Buna N and Viton options in the range.
- Installation-ready 30% glass-filled polyester with 50 mm ports gives a strong, light fixed package.
- Trio-rated 28 kg fixed package covers chemical transfer, diesel transfer and water transfer.
- 30% glass-filled polyester construction is selected to suit the listed liquid-transfer application.
- Covered by the 5 year Aussie Pumps pump end warranty and 1 year Melegari motor warranty.
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What terminal enclosure protection seals the electric motor against moisture across local power connections?
Electric power drives the Aussie Pumps Electric Chemical RSE2 (RSE2BUL-2.2-240) via a close-coupled unit rated at 2.2 kW 240V 1-Phase, wired into fixed switchboard connections.
Why do agricultural spray operators select polypropylene for chemical decanting setups across bulk liquid fertilizer tanks?
Glass-reinforced polypropylene construction on the RSE2BUL 2.2 240 resists chemical corrosion from liquid fertilizers, herbicides, pesticides, and agricultural sprays.
What vertical distance can the suction chamber draft fluid without external line charging across routine site transfer duties?
Automatic priming action on the RSE2BUL/2.2/240 drafts liquid from vertical depths down to 7.6 m without needing a foot valve.
What maximum diameter suspended debris can pass across the pump housing in everyday paddock dewatering?
Designed for chemical decanting and liquid transfer, the RSE2BUL/2.2/240 uses the 706 impeller built for clean liquids and agricultural solutions without suspended solids.
What peak fluid displacement volume and vertical head are developed across open site lines?
At peak operational capacity, the wet end of the RSE2 (RSE2BUL/2.2/240) produces up to approximately 580 L/min in open flow and reaches a maximum elevation head of approximately 22.5 m.
