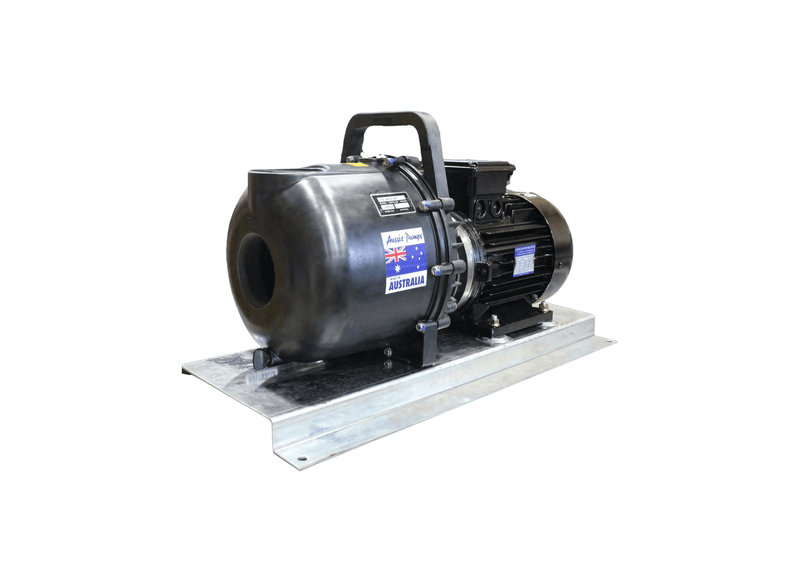

Aussie Pumps RSE2BUL/4/415 Polyester 2" Ports Three Phase High-Head Chemical Transfer Pump with Protek Motor
Australia-Wide
(08) 9240 2992
Official Aussie Pumps
Peace of Mind
Product Overview
Three-phase process lines standardise on this 415 V 2-inch high-head electric poly pump, lifting up to 580 litres a minute, shutting off at 22.5 metres with EPDM seals for continuous chemical duty. Hard-wired for the plant room. Plant-room hard-wired transfer is RSE2BUL/4/415, the 415 V three-phase unit with EPDM seals.
Open-discharge capacity holds 580 L/min, shutting off at 22.5 m head (32 PSI). The 30% glass-filled polyester wet end carries the 706 impeller with EPDM seals through 50 mm ports in a 37 kg frame.
Plant-room hard wiring meets the 4 kW three-phase 415 V motor, running Protek protection as standard and arriving without power cable or plug in the 37 kg frame. Continuous chemical duty spans chemical transfer, diesel transfer and water transfer.
Chemical transfer, diesel transfer and water transfer are the stated duties for this electric pump. It suits fixed shed, workshop, plant and tank-transfer installations where operators need an electrically driven configuration for moving process liquids, fuel or general water through dedicated transfer lines.
Features
- Room-ready 4 kW 415 V three-phase motor with Protek standard wires into plant-room panels without cable or plug.
- Flow of 580 L/min, shutting off at 22.5 m (32 PSI) sustains continuous chemical duty at working pressure.
- Duty-proof EPDM seals in the 706 impeller pump suit oxidising process chemicals, with Buna N and Viton options in the range.
- Cable-free hard-wired install in a 37 kg process frame meets fixed-plant standards.
- Continuously rated for three transfer duties: chemical transfer, diesel transfer and water transfer.
- The 30% glass-filled polyester body provides a durable wet end for fixed liquid-transfer installations.
- Covered by the 5 year Aussie Pumps pump end warranty and 1 year Melegari motor warranty.
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How does the corrosion proof plastic wet end perform when pumping agricultural sprays across bulk liquid fertilizer tanks?
The chemical-resistant polyester housing on the Aussie Pumps Electric Chemical RSE2 (RSE2BUL-4-415) tolerates corrosive crop chemicals and liquid fertilizers.
How is electrical drive power delivered to turn the pump shaft on site without requiring phase converters?
Mechanical power on the RSE2BUL 4 415 is delivered by an electric drive rated at 4 kW 415V 3-Phase, built for direct connection to site power.
What peak fluid displacement volume and vertical head are developed across long transfer runs?
Operating across its performance curve, the RSE2BUL/4/415 discharges a maximum flow rate of approximately 580 L/min and develops a maximum elevation head of approximately 22.5 m.
How does internal casing geometry evacuate suction line air during dry starts across routine site transfer duties?
Vertical suction capability on the RSE2BUL/4/415 reaches up to 7.6 m, evacuating intake line air swiftly without requiring a flooded suction inlet.
How do the wide internal waterways clear slurry runoff without choking the suction eye across demanding site dewatering duties?
Built for clean chemical and water transfer, internal waterways on the RSE2 (RSE2BUL/4/415) are optimized for liquid solutions free of abrasive solid debris.
