SKU: RSE2BUV/L48

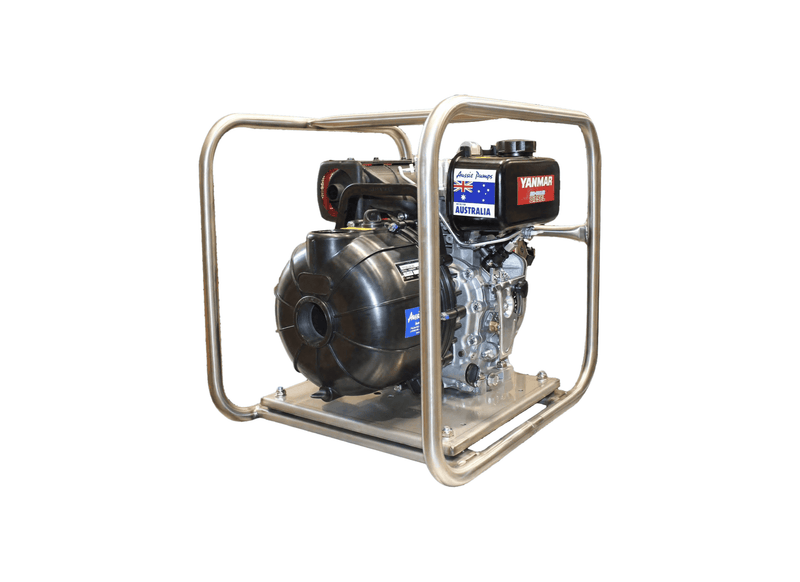

Aussie Pumps RSE2BUV/L48 Polyester High-Head Chemical Transfer Pump with Yanmar Diesel Recoil Start Engine
Australia-Wide
(08) 9240 2992
Official Aussie Pumps
Peace of Mind
Product Overview
Remote farms beyond the power lines dose fertiliser and shift diesel with this Yanmar-driven 2-inch high-head poly pump, throwing up to 720 litres a minute, shutting off at 37 metres on skid rails with grab handles. Diesel autonomy for chemical work. Off-grid fertiliser dosing on skids is RSE2BUV/L48 with Yanmar L48 recoil diesel.
Open flow reaches 720 L/min, shutting off at 37 m head (53 PSI). The polyester wet end runs the high-head 706 impeller with a Viton seal through 50 mm ports in a 40 kg skid-mounted package.
Rugged off-grid drive comes from the 4.8 HP Yanmar L48 diesel with recoil start, freeing chemical transfer from electricity on skid rails with grab handles. Liquid fertilizer, agricultural chemicals, diesel fuel, brine or salt water, high-volume water transfer and aquaculture form the rated application set.
Liquid-fertiliser dosing is the lead application, with agricultural chemical transfer, diesel movement, brine or salt-water pumping, water transfer and aquaculture also listed. This gives farm and rural operators a single pump configuration for a broad spread of liquid-handling duties across paddocks, sheds and water systems.
Features
- Grid-free 4.8 HP Yanmar L48 recoil-start diesel doses fertiliser far beyond the power lines.
- Flow of 720 L/min, shutting off at 37 m (53 PSI) lifts farm liquids to height from the high-head 706 impeller. Self-priming operation is standard.
- Rail-mounted high-head 706 impeller on skids travels the farm on grab handles.
- Ag-proof Viton seal in polyester with 50 mm ports resists fertiliser and ag chemicals daily.
- Handle-fitted 40 kg skid mobility lets one operator reposition between paddocks and tanks.
- Polyester construction is selected to suit the listed liquid-transfer application.
- Covered by the 5 year Aussie Pumps pump end warranty and 2 year Yanmar engine warranty.
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What maximum suction height is supported when drafting from below ground retention basins during everyday operations?
Vertical suction capability on the Aussie Pumps Diesel Engine-Drive Chemical RSE2 (RSE2BUV-L48) reaches up to 7.6 m, evacuating intake line air swiftly without requiring a flooded suction inlet.
How much fluid volume per minute and static elevation height are developed under full operating speed?
Under full operating throttle, the RSE2BUV L48 generates a maximum fluid displacement rate of approximately 720 L/min and reaches a maximum shut-off head of approximately 37 m.
Can this pumping unit pass stringy solids and suspended grit without jamming during routine excavation drainage?
The 706 impeller geometry on RSE2BUV/L48 transfers particulate-free chemical liquids.
How do polypropylene wet end surfaces tolerate harsh herbicides and pesticides across paddock chemical transfer setups?
Molded from glass-reinforced polypropylene, the RSE2BUV/L48 withstands harsh agricultural chemicals, liquid feeds, and corrosive fertilizers.
What engine horsepower and ignition systems are supplied on this pumping package without requiring electrical mains hookups?
Mechanical power for the RSE2 (RSE2BUV/L48) is delivered by a diesel engine for standalone off-grid operation.
