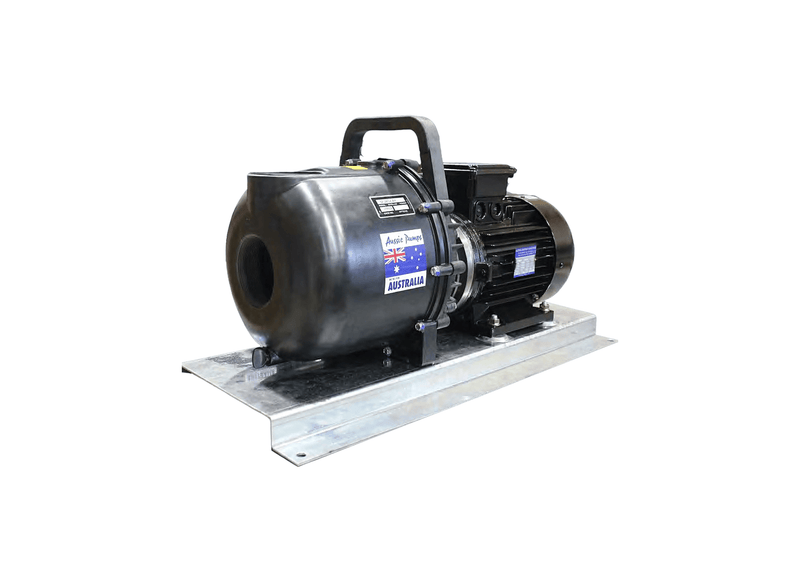

Aussie Pumps RSE3BSV/4/415 Polyester 3" Ports Three Phase High-Flow Chemical Pump with Protek Motor
Australia-Wide
(08) 9240 2992
Official Aussie Pumps
Peace of Mind
Product Overview
Three-inch high-flow electric transfer peaks at 800 litres a minute in this 415 V poly pump, pairing the 975 impeller with Viton seals for maximum-volume chemical headers. The electric volume flagship short of stainless. Peak electric poly volume is RSE3BSV/4/415, flowing 800 litres a minute on 415 V.
Maximum flow touches 800 L/min open discharge, shutting off at 16 m head (23 PSI). The glass-filled polyester 3-inch high-flow wet end runs the 975 impeller with Viton seals and 80 mm waterways.
Maximum-volume chemical headers run on the 4 kW three-phase 415 V Protek motor in the 38 kg unit, supplied without power cable or plug for 800-litre wiring. Viton seals face the volume brief across chemical transfer, diesel transfer and water transfer.
This electric pump is intended for chemical, diesel and general water-transfer duties in fixed installations. The application range suits sheds, workshops, plants and tank areas where a dedicated transfer point is needed for routine liquid movement between storage, process and service locations.
Features
- Volume-wired 4 kW 415 V three-phase Protek motor powers peak electric flow from process supply.
- Peak electric flow of 800 L/min, shutting off at 16 m (23 PSI) tops all polyester electric transfer.
- Brief-proof 975 high-flow impeller with Viton seals gives peak volume full chemical cover.
- Wiring-ready 3-inch polyester wet end with 80 mm ports handles header volumes directly.
- Volume-brief three-duty performance spans chemical, diesel and water headers at full flow.
- Volume-wired backing with 5 years pump and 1 year Melegari covers peak electric volume.
- Covered by the 5 year Aussie Pumps pump end warranty and 1 year Melegari motor warranty.
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Which elastomer seal compounds are fitted to resist chemical swelling from solvents across bulk liquid fertilizer tanks?
The chemical-resistant polyester housing on the Aussie Pumps Electric Chemical RSE3 (RSE3BSV-4-415) tolerates corrosive crop chemicals and liquid fertilizers.
How is incoming electrical power wired to drive this close-coupled wet end during fixed installation wiring?
Mechanical power on the RSE3BSV 4 415 is delivered by an electric drive rated at 4 kW 415V 3-Phase, built for direct connection to site power.
What volume of fluid per minute is delivered at peak speed when discharging into storage tanks?
Operating across its performance curve, the RSE3BSV/4/415 discharges a maximum flow rate of approximately 800 L/min and develops a maximum elevation head of approximately 16 m.
From what vertical elevation below the inlet can this self priming unit draft fluid across unflooded suction setups?
Vertical suction capability on the RSE3BSV/4/415 reaches up to 7.6 m, evacuating intake line air swiftly without requiring a flooded suction inlet.
Can the wet end clear solids laden water without jamming the rotating assembly during dirty liquid transfer?
Built for clean chemical and water transfer, internal waterways on the RSE3 (RSE3BSV/4/415) are optimized for liquid solutions free of abrasive solid debris.
