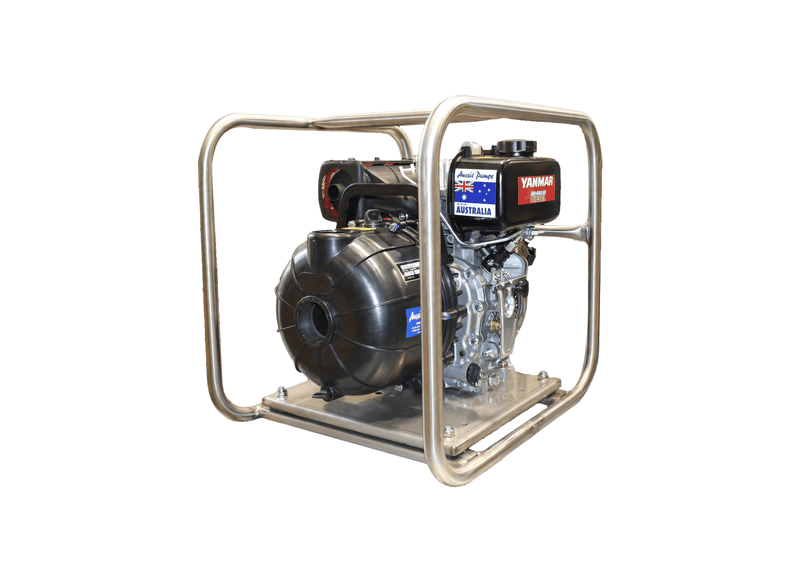

Aussie Pumps RSE3BSV/L48E Polyester 3" Ports Full-Frame High-Flow Pump with Yanmar Diesel Electric Start Engine
Australia-Wide
(08) 9240 2992
Official Aussie Pumps
Peace of Mind
Product Overview
Push-button thousand-litre diesel transfer comes in this full-frame Yanmar electric-start 3-inch high-flow poly pump, holding up to 1,010 litres a minute with Viton sealing for the full chemical spectrum. Peak volume, minimum effort. Minimum-effort thousand-litre diesel transfer is RSE3BSV/L48E with full-frame electric starting.
Open-discharge capacity holds 1,010 L/min, shutting off at 25 m head (36 PSI). The polyester high-flow wet end carries the 975 impeller with a Viton seal and 80 mm ports.
Minimum effort for maximum volume flows from the 4.8 HP Yanmar L48 electric-start diesel, working inside a full protective frame at 40 kg for push-button thousand-litre transfer. Liquid fertilizer, agricultural chemicals, diesel fuel, brine or salt water, high-volume water transfer and aquaculture are covered.
This diesel pump is intended for liquid fertiliser, agricultural chemicals, diesel, brine, salt water, general water transfer and aquaculture. The application range suits farm operations that move several liquid types, from fertiliser and crop inputs to water supply, brine handling and aquaculture circulation.
Features
- Effort-free 4.8 HP Yanmar L48 electric-start diesel delivers peak volume at a key turn.
- Maximum flow of 1,010 L/min, shutting off at 25 m (36 PSI) moves the most diesel-skid water available. Self-priming lift built into the design.
- Thousand-litre 975 high-flow impeller with a Viton seal pairs peak flow with chemical resistance.
- Effort-proof full-frame polyester build with 80 mm ports protects peak-volume alignment permanently.
- Grade-protected 40 kg station package earns its place in permanent transfer stations.
- Effort-free backing with 5 years pump and 2 years Yanmar covers peak-volume stations.
- Covered by the 5 year Aussie Pumps pump end warranty and 2 year Yanmar engine warranty.
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What solid particle dimensions are permitted through the internal water channels in everyday paddock dewatering?
Designed for chemical decanting and liquid transfer, the Aussie Pumps Diesel Engine-Drive Chemical RSE3 (RSE3BSV-L48E) uses the 975 impeller built for clean liquids and agricultural solutions without suspended solids.
How does built-in priming dynamics lift fluid from lower collection trenches across unflooded suction setups?
No foot valve is needed on the RSE3BSV L48E with a self-priming lift of up to 7.6 m once the casing is filled.
What fluid compatibility benefits does the glass filled polyester volute provide during crop spraying batch operations?
Molded from glass-reinforced polypropylene, the RSE3BSV/L48E withstands harsh agricultural chemicals, liquid feeds, and corrosive fertilizers.
What maximum hydraulic output and vertical elevation ceiling are rated across open site lines?
Discharge performance for the RSE3BSV/L48E yields an open flow volume of approximately 1010 L/min and reaches a maximum shut-off elevation of approximately 25 m.
Which mechanical drive arrangement couples the engine to the pump wet end for standalone pumping in remote paddocks?
Driven by a diesel engine, the RSE3 (RSE3BSV/L48E) operates independently across remote paddocks and civil sites without mains electricity.
