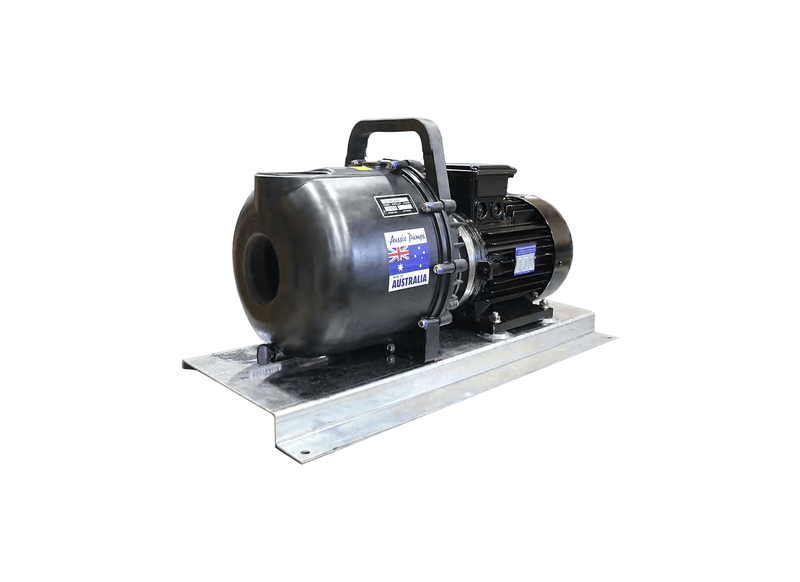

Aussie Pumps RSE3BXV/4/415 Polyester 3" Ports Three Phase High-Head Chemical Pump with Protek Motor
Australia-Wide
(08) 9240 2992
Official Aussie Pumps
Peace of Mind
Product Overview
Three-inch electric chemical transfer, shutting off at 22.5 metres runs up to 700 litres a minute through this 415 V high-head poly pump, stepping pipe size up for process headers on Viton seals. Big-port electric transfer. Big-port 3-inch electric transfer is RSE3BXV/4/415 with Viton seals on 415 V power.
Open flow holds 700 L/min, shutting off at 22.5 m head (32 PSI). The 30% glass-filled polyester 3-inch high-head wet end carries the 706 impeller with Viton seals through 80 mm ports at 38 kg.
Big-port electric transfer steps up through the 4 kW three-phase 415 V motor with Protek as standard, driving without cable or plug for process-header wiring. The 38 kg unit moves up to 700 litres a minute across chemical transfer, diesel transfer and water transfer.
Chemical transfer, diesel transfer and water transfer are the stated duties for this electric pump. It suits fixed shed, workshop, plant and tank-transfer installations where operators need an electrically driven configuration for moving process liquids, fuel or general water through dedicated transfer lines.
Features
- Header-wired 4 kW 415 V three-phase motor with Protek standard drives big-port transfer from process panels.
- Flow of 700 L/min, shutting off at 22.5 m (32 PSI) lifts 3-inch volume to dosing and header height.
- Ported-up 706 high-head impeller with Viton seals pairs big water with full chemical resistance.
- Process-header 80 mm waterways at 38 kg move header volumes without bottlenecks.
- Minute-moving three-duty rating covers chemical, diesel and water transfer at 700 litres.
- Buna N seals are specified for the pump’s listed marine, fuel and general liquid-transfer duties.
- Covered by the 5 year Aussie Pumps pump end warranty and 1 year Melegari motor warranty.
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What volume of fluid per minute is delivered at peak speed across long transfer runs?
Discharge performance for the Aussie Pumps Electric Chemical RSE3 (RSE3BXV-4-415) yields an open flow volume of approximately 700 L/min and reaches a maximum shut-off elevation of approximately 22.5 m.
What size particulate matter can travel through the casing without clogging internal passages across high volume transfer lines?
Built for clean chemical and water transfer, internal waterways on the RSE3BXV 4 415 are optimized for liquid solutions free of abrasive solid debris.
Which phase connection and voltage feed are required at the terminal box across local power connections?
Direct electrical drive on the RSE3BXV/4/415 features a motor rated at 4 kW 415V 3-Phase, built for steady site connection.
From what vertical elevation below the inlet can this self priming unit draft fluid once the casing is charged?
Built-in priming passages on the RSE3BXV/4/415 draw fluid vertically from depths up to 7.6 m without requiring an external foot valve once the casing is filled.
How do chemical grade mechanical seals protect the drive shaft against corrosive leakage without corroding from harsh liquid fertilizers?
Molded from glass-reinforced polypropylene, the RSE3 (RSE3BXV/4/415) withstands harsh agricultural chemicals, liquid feeds, and corrosive fertilizers.
