SKU: RSE3BXV/GX200

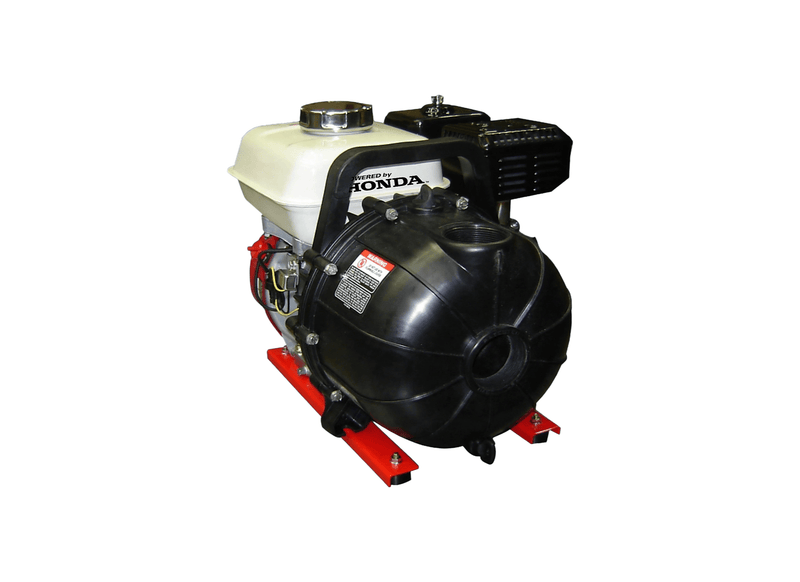

Aussie Pumps RSE3BXV/GX200 Polyester 3" Ports High-Head Chemical Transfer Pump with Honda Petrol Recoil Start Engine
Australia-Wide
(08) 9240 2992
Official Aussie Pumps
Peace of Mind
Product Overview
Three-inch high-head chemical transfer, shutting off at 37 metres runs on Honda recoil power in this 23 kg polyester pump, lifting a guided 870 litres a minute through 80 mm ports. Bigger pipe, same paddock portability. Bigger-pipe high-head transfer, shutting off at 37 metres is RSE3BXV/GX200 with 80 mm ports.
Guide-only figures quote 870 L/min open flow, shutting off at 37 m head (53 PSI). The 3-inch high-head polyester wet end runs the 706 impeller with Viton seals through 80 mm waterways.
Battery independence defines the 6.5 HP Honda GX200 recoil-start engine, keeping 3-inch high-head transfer free of electrics in a 23 kg portable frame. The chemical brief spans chemical transfer, diesel transfer, salt water pumping, water transfer and aquaculture with Viton seals.
For chemical, diesel, salt-water, water-transfer and aquaculture duties, this configuration provides a flexible engine-driven option. It is intended for practical liquid movement around farms, fish systems, storage areas and service points where different transfer tasks occur during the same working day.
Features
- Electrics-free 6.5 HP Honda GX200 recoil start keeps 3-inch high-head transfer free of power points.
- Guide flow of 870 L/min, shutting off at 37 m head (53 PSI) lifts chemical volume to real elevation.
- Pipe-up 3-inch 706 high-head impeller moves bigger water while holding full pressure.
- Brief-proof Viton seals in polyester cover the full chemical, diesel and saltwater brief.
- Portable-frame 23 kg high-head build stays manageable for two-person positioning anywhere onsite.
- Polyester construction is selected to suit the listed liquid-transfer application.
- Covered by the 5 year Aussie Pumps pump end warranty and 3 year Honda GX engine warranty.
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How does the impeller geometry clear heavy sediment without plugging the casing across demanding site dewatering duties?
The 706 chemical impeller on RSE3BXV-GX200 transfers clean solutions without suspended particles across pipework runs.
Does this self priming assembly require flooded intake manifolds to initiate liquid flow across unflooded suction setups?
The self-priming wet end on RSE3BXV GX200 lifts liquid automatically from depths down to 7.6 m.
How does chemical grade plastic construction resist corrosive agricultural liquids without corroding from harsh liquid fertilizers?
Molded from glass-reinforced polypropylene, the RSE3BXV/GX200 withstands harsh agricultural chemicals, liquid feeds, and corrosive fertilizers.
Which peak fluid volume and vertical elevation pressure does this package deliver when discharging into storage tanks?
Operating across its performance curve, the RSE3BXV/GX200 discharges a maximum flow rate of approximately 870 L/min and develops a maximum elevation head of approximately 37 m.
Which starting method and engine configuration power this portable pump package without requiring electrical mains hookups?
Driven by a Honda GX200 6.5HP petrol engine, the RSE3 (RSE3BXV/GX200) delivers independent field pumping power without requiring electrical connections.
