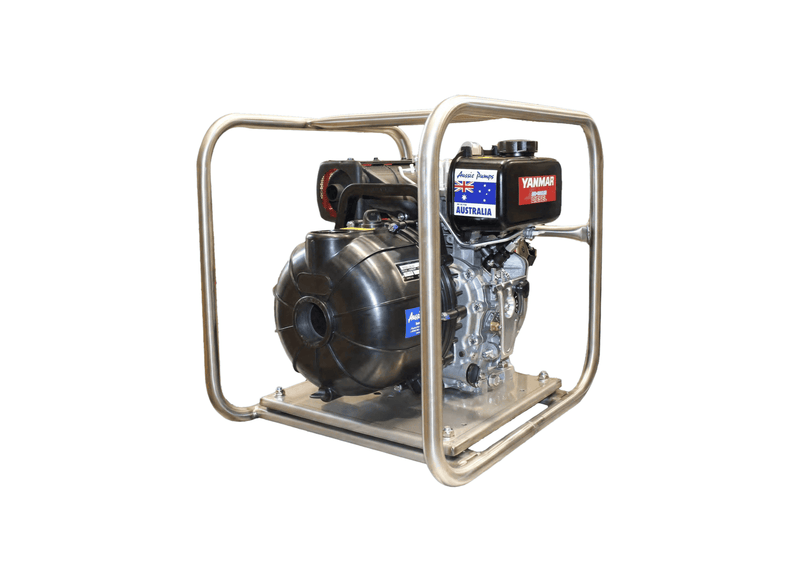

Aussie Pumps RSE3BXV/L48E Polyester 3" Ports Full-Frame High-Head Pump with Yanmar Diesel Electric Start Engine
Australia-Wide
(08) 9240 2992
Official Aussie Pumps
Peace of Mind
Product Overview
Station crews key-start 870 litres a minute of chemical transfer, shutting off at 37 metres with this full-frame Yanmar electric-start 3-inch high-head poly pump, wrapping diesel reliability in rollover protection. Serious lift, civilised starting. Civilised 3-inch station transfer is RSE3BXV/L48E with full-frame Yanmar electric starting.
Open flow peaks at 870 L/min, shutting off at 37 m head (53 PSI). The polyester high-head wet end spins the 706 impeller with a Viton seal through 80 mm ports.
Civilised starting for serious lift comes from the 4.8 HP Yanmar L48 electric-start diesel, sitting in a full frame at 40 kg for station-crew chemical transfer. Liquid fertilizer, agricultural chemicals, diesel fuel, brine or salt water, high-volume water transfer and aquaculture complete the duty picture.
Use this configuration for liquid-fertiliser dosing, agricultural chemical transfer, diesel movement, brine or salt-water pumping, water transfer and aquaculture. Its listed duties fit practical farm and rural liquid-handling work across paddocks, sheds, tanks, water points and aquaculture systems.
Features
- Civilised-start 4.8 HP Yanmar L48 electric-start diesel brings key starting to station crews.
- Open discharge of 870 L/min, shutting off at 37 m (53 PSI) moves station chemicals at working pressure. Standard self-priming suction throughout.
- Crew-friendly 706 impeller with a Viton seal holds up to daily multi-operator use.
- Station-crew polyester wet end with 80 mm ports handles crew handling and hose changes.
- Picture-complete 40 kg protected package guards alignment and fittings in station life.
- Electric start supports quick deployment of the diesel-driven package at paddock, quarry and marine sites.
- Covered by the 5 year Aussie Pumps pump end warranty and 2 year Yanmar engine warranty.
SPECIFICATIONS
| Max Flow | 870 L/Min |
| Max Head | 37 m |
| Power | Yanmar L48 Diesel Electric Start Engine |
| Suitable For | Brine Or Salt-Water Pumping |
| Body Material | Polyester |
| Inlet Size | 80 mm |
| Outlet Size | 80 mm |
| Warranty | 5 Years |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How does built-in priming dynamics lift fluid from lower collection trenches without requiring an external foot valve?
Built-in priming passages on the Aussie Pumps Diesel Engine-Drive Chemical RSE3 (RSE3BXV-L48E) draw fluid vertically from depths up to 7.6 m without requiring an external foot valve once the casing is filled.
What open discharge capacity and total shut off head are generated across long transfer runs?
Across open pipeline runs, the RSE3BXV L48E pushes fluid at a maximum throughput of approximately 870 L/min while attaining a shut-off head ceiling of approximately 37 m.
What solid particle dimensions are permitted through the internal water channels across demanding site dewatering duties?
With the 706 impeller, RSE3BXV/L48E batches clean chemicals without particulate solids.
Why is reinforced polymer casing construction ideal for liquid fertilizer decanting across high throughput chemical transfer runs?
Molded from glass-reinforced polypropylene, the RSE3BXV/L48E withstands harsh agricultural chemicals, liquid feeds, and corrosive fertilizers.
Which mechanical drive arrangement couples the engine to the pump wet end during off-grid dewatering duties?
Mechanical power for the RSE3 (RSE3BXV/L48E) is delivered by a diesel engine for standalone off-grid operation.
