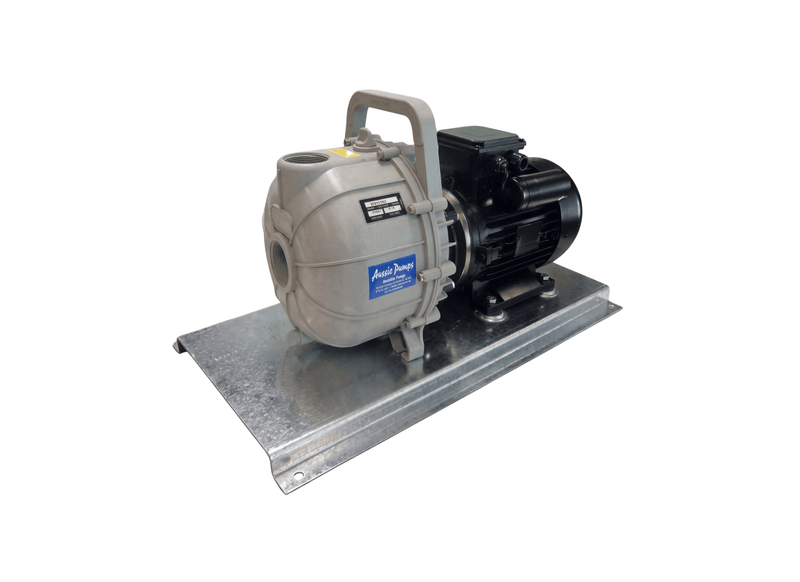

Aussie Pumps RSPRY2BRV/2.2K Polypropylene 2" Ports Single Phase Chemical Pump with Halar Seal
Australia-Wide
(08) 9240 2992
Official Aussie Pumps
Peace of Mind
Product Overview
Single-phase polypropylene transfer with Halar-sealed precision moves up to 600 litres a minute in this 240 V RSPRY2 pump, pairing broad chemical compatibility with a siliconised graphite seal face. Refined sealing for sensitive chemistry. Sensitive-chemistry precision transfer is RSPRY2BRV/2.2K with Halar sealing on single phase.
Open flow reaches 600 L/min, shutting off at 16 m head (23 PSI). The polypropylene wet end runs the 975 impeller with a Halar siliconised graphite mechanical seal and Viton elastomers through 50 mm ports.
Sensitive chemistry gains refined sealing through the 2.2 kW single-phase 240 V motor with Protek standard in the 28 kg pump. The Halar siliconised graphite face with Viton elastomers serves chemical transfer, diesel transfer and water transfer with precision.
Use this electric configuration for fixed chemical transfer, diesel movement and general water-transfer work. It is suited to permanent shed, workshop, plant and tank-transfer layouts where different liquids must be moved through a dedicated electrically powered pumping point.
Features
- Precision-graded 2.2 kW 240 V single-phase Protek motor meters sensitive chemistry at 600 litres a minute.
- Flow of 600 L/min, shutting off at 16 m (23 PSI) suits precision dosing and careful transfer work.
- Face-refined Halar siliconised graphite seal meters chemistry precisely where standard faces wear.
- Elastomer-proof Viton backup in polypropylene keeps the Halar face sealed in broad chemistry.
- Precision-duty 28 kg single-phase build places refined sealing on ordinary supply without upgrades.
- Precision cover with 5 years pump end and 1 year Melegari backs sensitive-chemistry transfer.
- Covered by the 5 year Aussie Pumps pump end warranty and 1 year Melegari motor warranty.
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
From what vertical elevation below the inlet can this self priming unit draft fluid when drafting from deep sumps?
Vertical suction capability on the Aussie Pumps Polypropylene Chemical RSPRY2 (RSPRY2BRV-2.2K) reaches up to 7.6 m, evacuating intake line air swiftly without requiring a flooded suction inlet.
How high can this unit elevate liquid during open flow transfer through connected piping?
Under full operating throttle, the RSPRY2BRV 2.2K generates a maximum fluid displacement rate of approximately 600 L/min and reaches a maximum shut-off head of approximately 16 m.
Can the wet end clear solids laden water without jamming the rotating assembly when pumping slurry runoff?
The 975 impeller geometry on RSPRY2BRV/2.2K transfers particulate-free chemical liquids.
Which elastomer seal compounds are fitted to resist chemical swelling from solvents during crop spraying batch operations?
Molded from glass-reinforced polypropylene, the RSPRY2BRV/2.2K withstands harsh agricultural chemicals, liquid feeds, and corrosive fertilizers.
How is incoming electrical power wired to drive this close-coupled wet end within outdoor switchboard setups?
Mechanical power on the RSPRY2 (RSPRY2BRV/2.2K) is delivered by an electric drive rated at 2.2 kW 240V 1-Phase, built for direct connection to site power.
