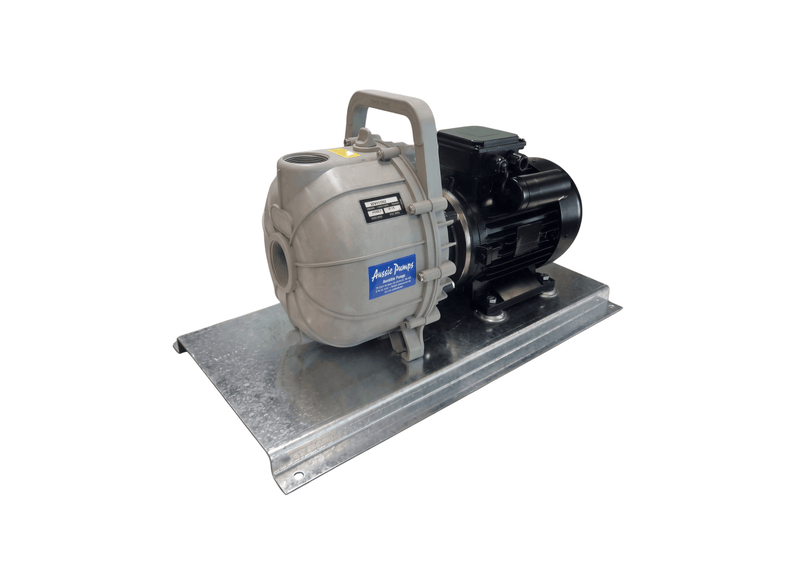

Aussie Pumps RSPRY2BRV/4/415 Polypropylene 2" Ports Three Phase Chemical Pump with Halar Seal
Australia-Wide
(08) 9240 2992
Official Aussie Pumps
Peace of Mind
Product Overview
Continuous polypropylene chemical circulation at 600 litres a minute runs on 415 V in this three-phase RSPRY2 pump, holding Halar-sealed precision for process loops that never sleep. Compatibility plus continuity. Sleepless-loop process circulation is RSPRY2BRV/4/415 with Halar precision on three phases.
Delivery peaks at 600 L/min open flow, shutting off at 16 m head (23 PSI). The polypropylene wet end spins the 975 impeller with a Halar siliconised graphite mechanical seal and Viton elastomers through 50 mm waterways.
Process loops that never sleep run on the 4 kW three-phase 415 V Protek motor in the 37 kg unit, delivered without cable or plug for continuity wiring. Halar-sealed precision with Viton elastomers covers chemical transfer, diesel transfer and water transfer.
Chemical transfer, diesel transfer and water transfer are the stated duties for this electric pump. It suits fixed shed, workshop, plant and tank-transfer installations where operators need an electrically driven configuration for moving process liquids, fuel or general water through dedicated transfer lines.
Features
- Sleepless-loop 4 kW 415 V three-phase Protek motor circulates process chemistry without stopping.
- Flow of 600 L/min, shutting off at 16 m (23 PSI) holds loop circulation at working pressure continuously.
- Continuity-grade Halar siliconised graphite sealing withstands non-stop process exposure for many years.
- Viton-elastomer backup in polypropylene keeps the precision face sealed around the clock.
- Wiring-ready 37 kg loop unit installs into panels without cable or plug.
- Polypropylene construction is selected to suit the listed liquid-transfer application.
- Covered by the 5 year Aussie Pumps pump end warranty and 1 year Melegari motor warranty.
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How is incoming electrical power wired to drive this close-coupled wet end without requiring phase converters?
Shaft propulsion for the Aussie Pumps Polypropylene Chemical RSPRY2 (RSPRY2BRV-4-415) is supplied by an electric motor rated at 4 kW 415V 3-Phase, protected by a weatherproof terminal enclosure.
Which elastomer seal compounds are fitted to resist chemical swelling from solvents without corroding from harsh liquid fertilizers?
Glass-reinforced polypropylene construction on the RSPRY2BRV 4 415 resists chemical corrosion from liquid fertilizers, herbicides, pesticides, and agricultural sprays.
From what vertical elevation below the inlet can this self priming unit draft fluid across routine site transfer duties?
Operating with built-in priming dynamics, the RSPRY2BRV/4/415 draws water from vertical depths up to 7.6 m without external priming equipment.
Can the wet end clear solids laden water without jamming the rotating assembly across demanding site dewatering duties?
The 975 chemical impeller on RSPRY2BRV/4/415 transfers clean solutions without suspended particles across pipework runs.
How high can this unit elevate liquid during open flow transfer under full operating speed?
Rated performance on the RSPRY2 (RSPRY2BRV/4/415) generates an open discharge of approximately 600 L/min and achieves a total shut-off elevation of approximately 16 m.
