SKU: RSE3BXB/L48E

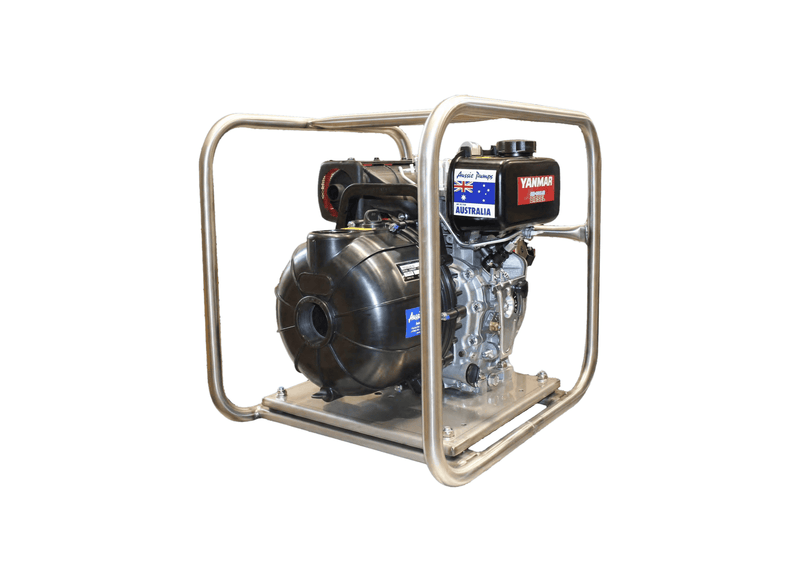

Aussie Pumps Seamaster RSE3BXB/L48E Polyester 3" Ports Marine Transfer Pump with Yanmar Diesel Electric Start Engine
Australia-Wide
(08) 9240 2992
Official Aussie Pumps
Peace of Mind
Product Overview
Flagship marine transfer pairs 3-inch 870-litre volume with electric starting in this key-start Seamaster, moving seawater or diesel, shutting off at 37 metres from inside full roll-frame armour. Maximum marine convenience. Flagship key-start marine transfer is RSE3BXB/L48E, the electric-start 3-inch Seamaster.
Maximum flow reaches 870 L/min open discharge, shutting off at 37 m head (53 PSI). The polyester high-head wet end carries the 706 impeller with Buna N salt-water and diesel-compatible seals through 80 mm ports.
Maximum marine convenience pairs key starting with full armour: the 4.8 HP Yanmar diesel with electric start works in the 60 kg galvanised or stainless roll frame for flagship transfer duty. Marine salvage, fire fighting, salt-water transfer and diesel transfer run from the same protected unit.
Marine salvage, fire-fighting response, salt-water transfer and diesel transfer define the stated duties for this diesel-driven package. It is intended for workboats, quaysides and marine-service crews that need a mobile pump for clearing water, moving salt water, supplying fire-water and transferring diesel.
Features
- Convenience-max 4.8 HP Yanmar diesel with electric start brings key starting to flagship marine duty.
- Peak flow of 870 L/min, shutting off at 37 m (53 PSI) delivers maximum marine convenience at full volume. Flagship self-priming action included.
- Armour-grade 3-inch 706 impeller with Buna N sealing moves seawater or diesel equally well.
- Flagship-duty 80 mm ports in roll-frame armour handle full-volume salvage flows safely.
- Same-unit 60 kg protected transfer serves salvage, fire, salt water and diesel from one pump.
- Electric start supports rapid deployment of the engine-driven package at paddock, quarry and marine sites.
- Covered by the 5 year Aussie Pumps pump end warranty and 2 year Yanmar engine warranty.
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What vertical distance can the suction chamber draft fluid without external line charging when drafting from deep sumps?
Built-in priming passages on the Aussie Pumps Diesel Engine-Drive Chemical RSE3 (RSE3BXB-L48E) draw fluid vertically from depths up to 7.6 m without requiring an external foot valve once the casing is filled.
How many litres per minute of open discharge does this unit push when discharging into storage tanks?
Across open pipeline runs, the RSE3BXB L48E pushes fluid at a maximum throughput of approximately 870 L/min while attaining a shut-off head ceiling of approximately 37 m.
What maximum diameter suspended debris can pass across the pump housing during routine excavation drainage?
With the 706 impeller, RSE3BXB/L48E batches clean chemicals without particulate solids.
How does molded polymer casing construction withstand caustic chemical fertilizers during crop spraying batch operations?
Molded from glass-reinforced polypropylene, the RSE3BXB/L48E withstands harsh agricultural chemicals, liquid feeds, and corrosive fertilizers.
How is engine torque transmitted to turn the pump impeller in the field across mobile agricultural spray setups?
Mechanical power for the RSE3 (RSE3BXB/L48E) is delivered by a diesel engine for standalone off-grid operation.
