SKU: QP205SED-L48

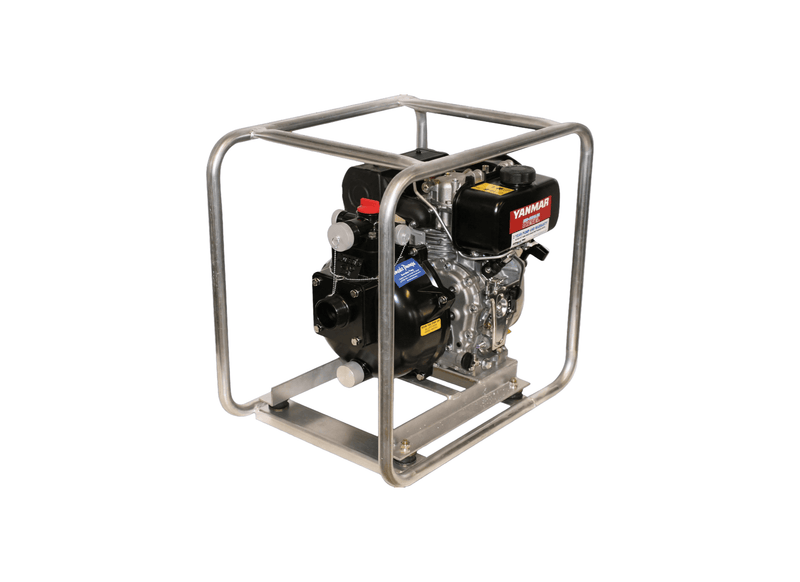

Aussie Pumps Skipper QP205SED-L48 Aluminium 4.8HP Marine Transfer Pump with Yanmar Diesel Engine
Australia-Wide
(08) 9240 2992
Official Aussie Pumps
Peace of Mind
Product Overview
Marine fire protection, deck washdown, and diesel transfer are the stated duties for this Skipper pump configuration. Engineered for proven service in severe coastal and maritime duties.
Hydraulic performance encompasses a maximum shut-off head of 60 m (85 PSI) at zero flow and an open-discharge flow capacity of up to 400 L/min at zero static head. The epoxy-coated aluminium casing houses a bronze closed impeller, bronze volute, ceramic/carbon seal, and zinc anode drain plug. Mass: 45 kg. High-tensile body metallurgy resists outdoor weathering and operational casing wear.
Driven by a fuel-efficient Yanmar L48 (4.8 HP) recoil-start diesel engine. Plumbing features a 2" inlet with 3-way discharge manifold (2 x 1" & 1 x 1.5"), replaceable flanged ports, stainless steel external fasteners, free Geomet couplings, and self-priming lift to 7.6 m. High-torque Yanmar diesel engine drive delivers strong fuel economy and operating endurance on site.
Built with stainless steel external hardware and sacrificial zinc anode protection for long service life on coastal vessels. Technical assembly schematics, user manuals, and replacement component stockists are available nationwide through Aussie Pumps distributor networks. Complete technical assembly schematics and spare parts stockists support ongoing field servicing.
Features- Epoxy-coated marine aluminium body with heavy bronze impeller and bronze volute.
- Sacrificial zinc anode in drain plug actively inhibits galvanic corrosion in sea water.
- High-pressure output generates 60 m maximum elevation head (85 PSI) and 400 L/min flow.
- Multi-port 3-way discharge manifold (2 x 1-inch and 1 x 1.5-inch) for multi-hose setups.
- Yanmar L48 (4.8 HP) recoil-start diesel engine provides low fuel consumption.
- Includes free Geomet-treated couplings, suction strainer, and stainless steel hardware.
- Includes a 5-year Aussie Pumps warranty on the pump body and a 2-year Yanmar diesel engine warranty.
SPECIFICATIONS
| Max Flow | 400 L/Min |
| Max Head | 60 m |
| Power | Yanmar L48 Diesel Recoil Start Engine |
| Suitable For | Fire Defense |
| Body Material | Marine Grade Aluminium |
| Inlet Size | 50 mm |
| Outlet Size | 3-way (2 x 25 mm, 1 x 40 mm) |
| Warranty | 5 Years |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What suction performance applies when pulling water from low dams and sumps?
The Aussie Pumps Sea Skipper Marine QP205SED (QP205SED-L48) achieves rapid self-priming from vertical depths up to approximately 7.6 m, drafting fluid without line flooding.
What makes this recoil-start marine pump suitable for dead-ship emergency duties?
Operating without batteries or electrical supply, the QP205SED-L48 starts via manual recoil rope, providing immediate firefighting and salvage pumping during total onboard electrical blackouts.
Which power source drives the impeller and how is it engaged?
The QP205SED-L48 utilizes a Yanmar L48 4.8HP recoil diesel engine, incorporating manual recoil rope starter to support rapid deployment.
How much fluid volume and dynamic head are produced during full throttle?
Depending on discharge piping resistance, the QP205SED L48 provides up to approximately 400 L/min in flow and up to approximately 60 m in head.
How are the suction inlet and discharge manifold configured for hose hookup?
Standard connection threading for the QP205SED/L48 comprises 2" BSP intake with a 3-way discharge manifold (two 1" and one 1.5" outlets), suiting standard line layouts.
