SKU: QP310ED-L100E

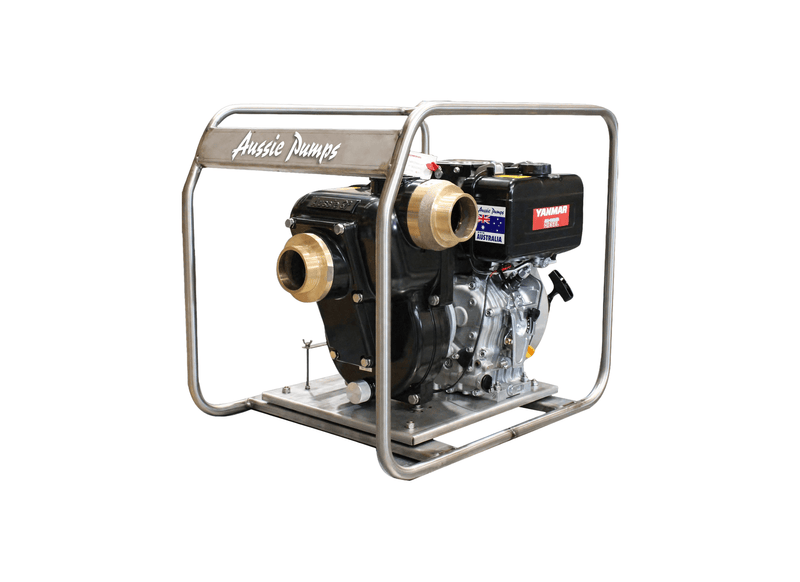

Aussie Pumps Skipper QP310ED-L100E Aluminium 10HP Marine Transfer Pump with Yanmar Diesel Engine
Australia-Wide
(08) 9240 2992
Official Aussie Pumps
Peace of Mind
Product Overview
Ballast pumping, aquaculture supply, and high-volume saltwater transfer are the applications associated with this large-port marine setup. Engineered for proven service in severe coastal and maritime duties.
Hydraulic performance encompasses a maximum shut-off head of 30 m (43 PSI) at zero flow and an open-discharge flow capacity of up to 1,300 L/min at zero static head. Built with an epoxy-coated marine aluminium casing, bronze impeller, bronze volute, ceramic/carbon mechanical seal, and zinc anode drain plug. Boxed weight: 110 kg. High-tensile body metallurgy resists outdoor weathering and harsh operating environments.
Powered by an electric-start Yanmar L100 (10 HP) diesel engine in a free stainless steel full roll frame with anti-vibration mounts (battery supplied separately). Plumbing features 3" x 3" BSP male ports, self-priming to 8.2 m vertical suction depth. High-torque Yanmar diesel engine drive delivers strong fuel economy on site.
Supplied with free Geomet-treated couplings, suction strainer, and stainless steel external hardware for long-term marine durability. Complete technical assembly diagrams, user manuals, and replacement component stockists are available through Aussie Pumps distributor networks. Complete technical assembly schematics and spare parts are available nationwide through Aussie Pumps distribution networks.
Features- Epoxy-coated marine aluminium casing with bronze impeller and bronze volute.
- Sacrificial zinc anode in drain plug actively combats saltwater galvanic decay.
- Hydraulic limits: maximum shut-off head of 30 m (43 PSI) at zero flow, with open-discharge flow capacity up to 1,300 L/min at zero head.
- Electric-start Yanmar L100 (10 HP) diesel engine mounted in a stainless steel roll frame.
- Includes free Geomet-treated couplings, suction strainer, and stainless hardware.
- Self-primes reliably from vertical suction depths up to 8.2 m.
- Includes a 5-year Aussie Pumps warranty on the pump body and a 2-year Yanmar diesel engine warranty.
SPECIFICATIONS
| Max Flow | 1300 L/Min |
| Max Head | 30 m |
| Power | Yanmar L100 Diesel Electric Start Engine |
| Suitable For | Farm Water Supply |
| Body Material | Marine Grade Aluminium |
| Inlet Size | 80 mm |
| Outlet Size | 80 mm |
| Warranty | 5 Years |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What marine features make this unit suitable for high-volume sea water transfer?
The Aussie Pumps Sea Skipper Marine QP310ED (QP310ED-L100E) combines marine-inhibited internal passages with zinc anode sacrificial protection, allowing high-volume seawater pumping without accelerated galvanic decay.
Which volumetric displacement and discharge height are delivered?
Discharge limits specified for the QP310ED-L100E include a maximum flow rate of approximately 1,300 L/min and a maximum head of approximately 30 m.
How are intake lines and discharge pipework connected to the pump?
Equipped for fast deployment, the QP310ED-L100E utilizes 3" x 3" BSP male suction and discharge ports for intake and discharge.
What drive motor is fitted and which ignition method applies?
Mechanical propulsion on the QP310ED L100E comes from a Yanmar L100 10HP electric-start diesel engine, initiated through electric key start with recoil backup.
From what intake depth can the pump re prime during field operations?
Operating with deep suction capability, the QP310ED/L100E lifts water vertically from depths reaching up to approximately 7.6 m.
