Roll over image to zoom
SKU: QP310SLEDL100E

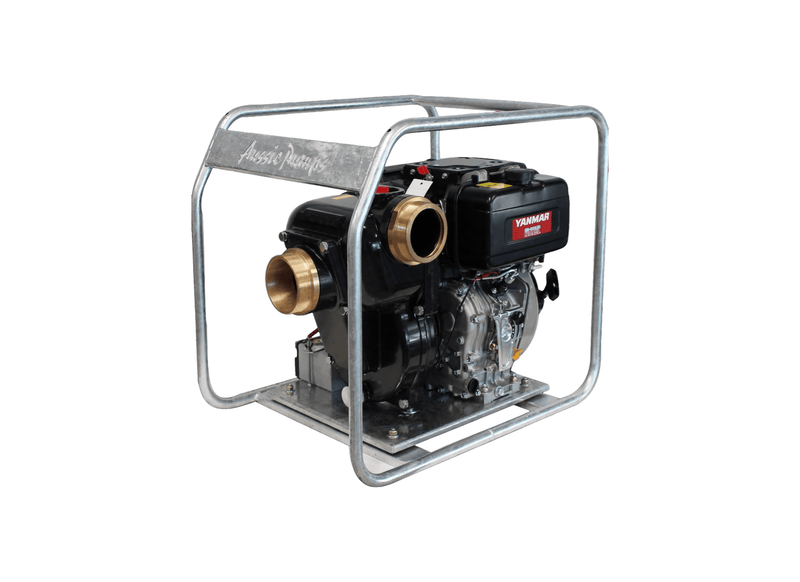

Aussie Pumps Skipper QP310SLEDL100E Aluminium 10HP Marine Transfer Pump with Yanmar Diesel Engine
Australia-Wide
(08) 9240 2992
Official Aussie Pumps
Peace of Mind
Product Overview
High-volume transfer and tanker refilling are supported by this large-port diesel pump configuration, housed in a protective roll frame. Ideal for broadacre stations, highway depots, and civil water supply. Configured for deliver proven water transfer across demanding rural and industrial properties.
Hydraulic performance encompasses a maximum shut-off head of 50 m (71 PSI) at zero flow and an open-discharge flow capacity of up to 1,150 L/min at zero static head. Constructed with a marine-grade aluminium casing, closed bronze marine impeller, carbon ceramic mechanical seal, and nitrile elastomers. Mass: 110 kg in roll frame. High-tensile body metallurgy resists outdoor weathering and harsh operating environments.
Powered by an electric-start Yanmar L100 (10 HP) diesel engine in a steel roll frame with battery tray (battery supplied separately). Plumbing incorporates 3" x 3" BSP male ports, supported by self-priming internal wet end passages drawing from depths up to 8 m. High-torque Yanmar diesel engine drive delivers strong fuel economy and operating endurance on site.
Equipped with replaceable flanged suction ports and polycarbonate drain plugs for easy site servicing. Supported by factory technical assembly diagrams, user manuals, and genuine replacement component stockists across Aussie Pumps distribution channels nationwide. Polycarbonate priming plugs and zinc-plated casing bolts simplify routine field maintenance.
Features- High-capacity 3-inch porting achieves a maximum flow rate of 1,150 L/min.
- Electric-start Yanmar L100 (10 HP) diesel engine in a steel roll frame with battery tray.
- Generates 50 m maximum pressure head (71 PSI) for long-distance fluid transfer.
- Marine-grade aluminium pump body with replaceable flanged suction ports.
- Self-priming internal wet end picks up prime from vertical suction depths up to 8 m.
- Roll frame with anti-vibration mounts protects components during transport.
- Includes a 5-year Aussie Pumps warranty on the pump body and a 2-year Yanmar diesel engine warranty.
SPECIFICATIONS
| Max Flow | 1150 L/Min |
| Max Head | 50 m |
| Power | Yanmar L100 Diesel Electric Start Engine |
| Suitable For | Tank Flushing |
| Body Material | Marine Grade Aluminium |
| Inlet Size | 80 mm |
| Outlet Size | 80 mm |
| Warranty | 5 Years |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What physical protection does the heavy steel roll frame provide aboard workboats?
Enclosed in a full perimeter steel roll frame with vibration isolators, the Aussie Pumps Sea Skipper Marine Roll Frame QP310SLED (QP310SLEDL100E) withstands impact from shifting deck cargo and allows safe tiedown during rough ocean crossings.
What vertical draw capability is provided by the self priming passages?
The QP310SLEDL100E self-primes effectively from up to approximately 7.6 m vertical lift depth, drawing water without auxiliary equipment.
What flow throughput and elevation capabilities are provided?
Fluid output capacity for the QP310SLEDL100E is rated at up to approximately 1,150 L/min in volume and up to approximately 50 m in elevation head.
What power unit and starting equipment are paired with this wet end?
The QP310SLEDL100E operates with a Yanmar L100 10HP electric-start diesel engine, equipped with electric key ignition for straightforward operation.
What connection threads and outlet fittings are standard on this pump?
The QP310SLEDL100E utilizes 3" x 3" BSP male threaded suction and discharge ports, allowing quick attachment to standard delivery assemblies.
