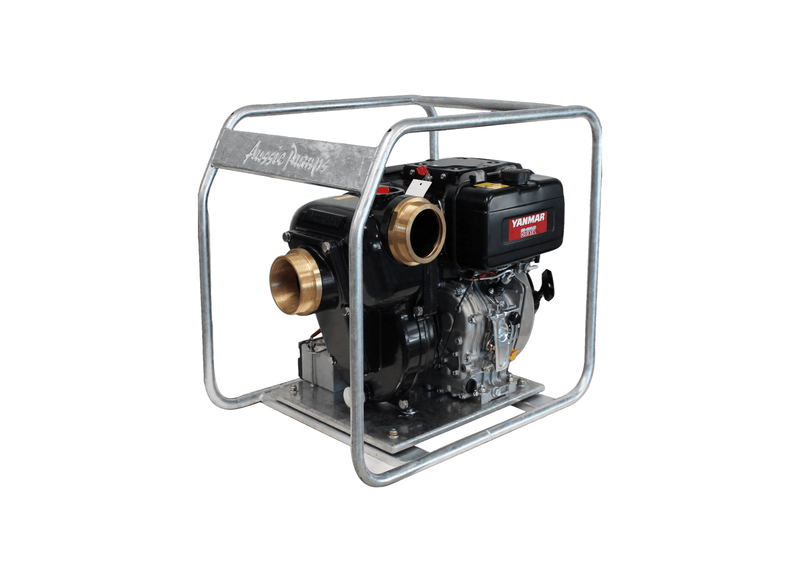

Aussie Pumps Skipper QP310SXED/L100E Aluminium 10HP Marine Transfer Pump with Yanmar Diesel Engine
Australia-Wide
(08) 9240 2992
Official Aussie Pumps
Peace of Mind
Product Overview
Where water must be transferred over long distances or elevated terrain, this large-port diesel configuration provides high-head pressure in a full roll frame. Configured for deliver proven water transfer across demanding rural and industrial properties.
Hydraulic performance encompasses a maximum shut-off head of 70 m (100 PSI) at zero flow and an open-discharge flow capacity of up to 700 L/min at zero static head. The marine-grade aluminium casing houses a closed bronze marine impeller, carbon ceramic mechanical seal, and nitrile elastomers. Boxed mass: 125 kg. High-tensile body metallurgy resists outdoor weathering and harsh operating environments.
Driven by an electric-start Yanmar L100 (10 HP) diesel engine in a steel roll frame with battery mounting tray (battery supplied separately). Plumbing connections feature 3" x 3" BSP male ports, self-priming reliably from vertical suction depths up to 7.8 m. High-torque Yanmar diesel engine drive delivers strong fuel economy on site.
Built with replaceable flanged suction ports and zinc-plated casing bolts for straightforward field maintenance. Supported by complete technical assembly documentation, product schematics, and replacement component stockists through Aussie Pumps distributor networks. Polycarbonate priming plugs and zinc-plated casing bolts simplify routine field maintenance.
Features- High-pressure closed impeller generates 70 m maximum elevation head (100 PSI).
- High-capacity 3-inch porting delivers fluid throughput up to 700 L/min.
- Electric-start Yanmar L100 (10 HP) diesel engine mounted in a steel roll frame with battery tray.
- Marine-grade aluminium pump body with replaceable flanged suction ports.
- Self-primes from strong vertical suction depths up to 7.8 m.
- Wrap-around steel roll frame with anti-vibration mounts for rough transport.
- Includes a 5-year Aussie Pumps warranty on the pump body and a 2-year Yanmar diesel engine warranty.
SPECIFICATIONS
| Max Flow | 700 L/Min |
| Max Head | 70 m |
| Power | Yanmar L100 Diesel Electric Start Engine |
| Suitable For | Slipway Drainage |
| Body Material | Marine Grade Aluminium |
| Inlet Size | 80 mm |
| Outlet Size | 80 mm |
| Warranty | 5 Years |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How does the drive motor start and what horsepower does it deliver?
Installed on the Aussie Pumps Sea Skipper Marine High Head QP310SXED (QP310SXED/L100E) is a Yanmar L100 10HP electric-start diesel engine, started effortlessly via turnkey electric start.
How much fluid displacement and total discharge head are rated?
Operating within factory tolerances, the QP310SXED/L100E delivers a maximum flow rate of approximately 700 L/min and develops a maximum head of approximately 70 m.
What application advantage does the extra-high head impeller provide in dry docks?
The high-head hydraulic profile of the QP310SXED-L100E overcomes vertical piping friction, lifting seawater from deep dry dock floors and pumping it up to dockside treatment channels.
From what vertical depth does the pump establish dependable suction prime?
From vertical suction depths of up to approximately 7.6 m, the QP310SXED L100E pulls water smoothly from holding tanks and sumps.
Which factory warranty terms and replacement parts support apply nationwide?
Factory coverage for the QP310SXED/L100E encompasses a 5-year pump end warranty backed by a 2-year Yanmar engine warranty, backed by authorized service workshops across Australia.
