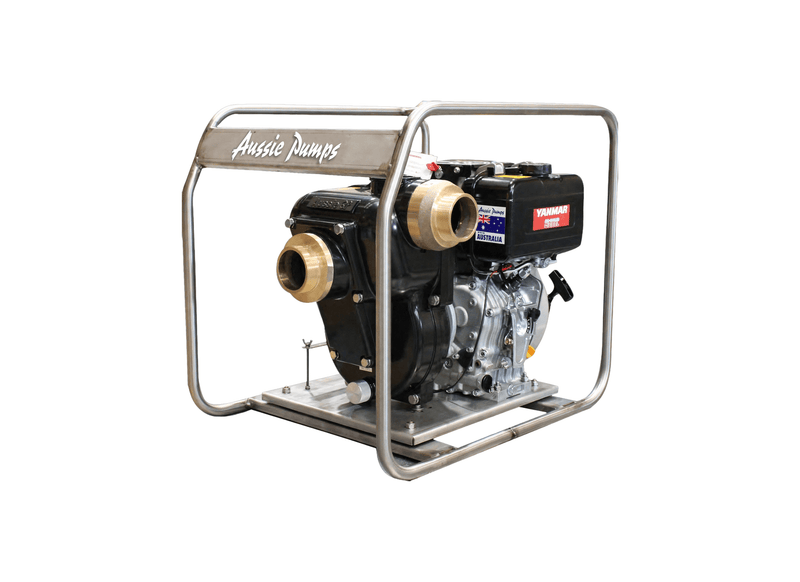

Aussie Pumps Skipper QP402ED-L100E Aluminium 10HP Marine Transfer Pump with Yanmar Diesel Engine
Australia-Wide
(08) 9240 2992
Official Aussie Pumps
Peace of Mind
Product Overview
Four-inch porting allows high-volume saltwater transfer for barge dewatering, aquaculture supply, and port washing in this marine configuration. Features full epoxy body coating inside and out, bronze impeller, bronze volute, and sacrificial zinc anode protection.
Hydraulic performance encompasses a maximum shut-off head of 32 m (45 PSI) at zero flow and an open-discharge flow capacity of up to 1,500 L/min at zero static head. The marine aluminium casing houses a heavy bronze impeller, bronze volute, ceramic/carbon mechanical seal, and zinc anode in drain plug. Dry weight: 110 kg. High-tensile body metallurgy resists outdoor weathering and harsh operating environments.
Powered by an electric-start Yanmar L100 (10 HP) diesel engine in a free stainless steel full roll frame with anti-vibration mounts (battery supplied separately). Plumbing incorporates 4" x 4" BSP male ports, with self-priming passages lifting fluid up to 8.2 m. High-torque Yanmar diesel engine drive delivers strong fuel economy and operating endurance on site.
Includes free Geomet-treated couplings, suction strainer, and stainless steel external fasteners for complete saltwater defense. Supported by factory technical assembly schematics, user guides, and genuine replacement component stockists across distributor channels. Complete technical assembly schematics and spare parts stockists support ongoing field operations.
Features- Large-volume 4-inch porting moves high-volume sea water up to 1,500 L/min.
- Full epoxy body coating with heavy bronze impeller, bronze volute, and zinc anode.
- Sacrificial zinc anode in drain plug actively stops electrolysis in saltwater.
- Electric-start Yanmar L100 (10 HP) diesel engine in a stainless steel roll frame.
- Includes free Geomet-treated couplings, suction strainer, and stainless fasteners.
- Self-primes from strong vertical suction depths up to 8.2 m.
- Includes a 5-year Aussie Pumps warranty on the pump body and a 2-year Yanmar diesel engine warranty.
SPECIFICATIONS
| Max Flow | 1500 L/Min |
| Max Head | 32 m |
| Power | Yanmar L100 Diesel Electric Start Engine |
| Suitable For | Offshore Supply |
| Body Material | Marine Grade Aluminium |
| Inlet Size | 100 mm |
| Outlet Size | 100 mm |
| Warranty | 5 Years |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Which connection threads and delivery ports are standard equipment?
Fittings supplied on the Aussie Pumps Sea Skipper Marine QP402ED (QP402ED-L100E) incorporate 4" x 4" BSP male threaded inlet and outlet ports, allowing direct hose coupling.
What maximum flow delivery and vertical lift pressure are engineered?
The QP402ED-L100E produces up to approximately 1,500 L/min in volumetric throughput and develops a maximum head of approximately 32 m.
How does the corrosion-inhibited casing perform in offshore marine transfer?
Protected by marine conversion coatings and sacrificial zinc anodes, the QP402ED-L100E maintains casing integrity while shifting broad volumes of brine between boat hulls and holding tanks.
How deep can this unit draft water from unpressurized storage sources?
Suction lift depth for the QP402ED L100E spans up to approximately 7.6 m vertically, enabling convenient drafting from open trenches.
What engine propulsion system and startup control are included?
Powering the hydraulic wet end of the QP402ED/L100E is a Yanmar L100 10HP electric-start diesel engine, started by key-switch electric start.
