SKU: QP402SXEDL100E

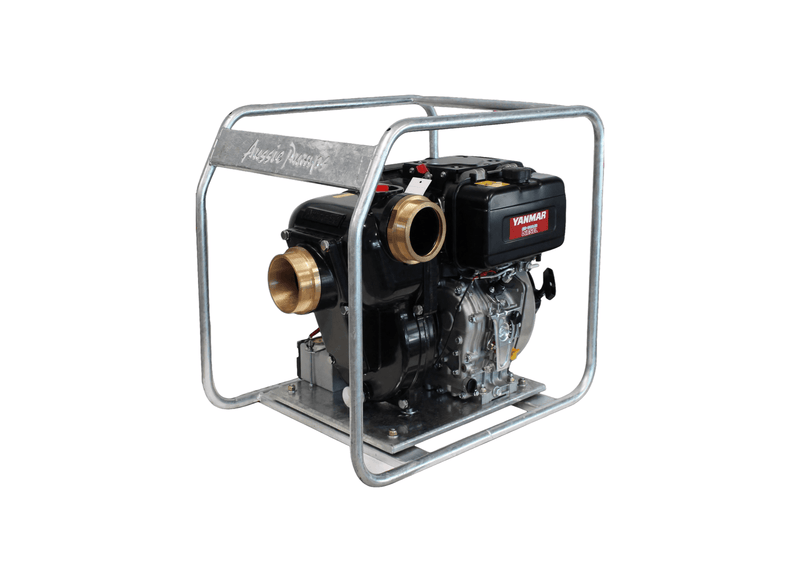

Aussie Pumps Skipper QP402SXEDL100E Aluminium 10HP Marine Transfer Pump with Yanmar Diesel Engine
Australia-Wide
(08) 9240 2992
Official Aussie Pumps
Peace of Mind
Product Overview
Bulk water movement across steep terrain and long pipe runs is the focus of this wide-port high-elevation diesel configuration. Enclosed in a protective steel roll frame for heavy site duty across rural properties. Configured for deliver proven water transfer across broadacre and civil applications.
Hydraulic performance encompasses a maximum shut-off head of 70 m (100 PSI) at zero flow and an open-discharge flow capacity of up to 700 L/min at zero static head. The marine-grade aluminium casing houses a closed bronze marine impeller, carbon ceramic mechanical seal, and nitrile check valve. Mass: 125 kg. High-tensile body metallurgy resists outdoor weathering and operational casing wear.
Driven by an electric-start Yanmar L100 (10 HP) diesel engine in a steel roll frame with battery tray (battery supplied separately). Plumbing incorporates 4" x 4" BSP male ports, supported by self-priming internal hydraulics lifting water from depths up to 7.8 m. High-torque Yanmar diesel engine drive delivers strong fuel economy and operating endurance on site.
Built with replaceable flanged suction ports and zinc-plated casing bolts for straightforward field servicing. Supported by factory technical assembly schematics, product manuals, and genuine replacement component stockists through Aussie Pumps distributor channels. Polycarbonate priming plugs and zinc-plated casing bolts simplify routine field maintenance.
Features- High-pressure closed impeller builds 70 m maximum head (100 PSI) through 4-inch ports.
- High fluid delivery volume reaching up to 700 L/min.
- Electric-start Yanmar L100 (10 HP) diesel engine in a steel roll frame with battery tray.
- Marine-grade aluminium casing with replaceable flanged suction porting.
- Self-priming internal wet end draws water from vertical suction depths up to 7.8 m.
- Wrap-around steel roll frame protects pump and engine during transport.
- Includes a 5-year Aussie Pumps warranty on the pump body and a 2-year Yanmar diesel engine warranty.
SPECIFICATIONS
| Max Flow | 700 L/Min |
| Max Head | 70 m |
| Power | Yanmar L100 Diesel Electric Start Engine |
| Suitable For | Aquaculture Transfer |
| Body Material | Marine Grade Aluminium |
| Inlet Size | 100 mm |
| Outlet Size | 100 mm |
| Warranty | 5 Years |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Which flow performance and vertical elevation boundaries apply?
Pumping throughput developed by the Aussie Pumps Sea Skipper Marine High Head QP402SXED (QP402SXEDL100E) reaches up to approximately 700 L/min in flow and up to approximately 70 m in dynamic head.
What engine package powers the shaft and how is startup handled?
Mechanical rotation on the QP402SXEDL100E is supplied by a Yanmar L100 10HP electric-start diesel engine, featuring turnkey electric start.
What long-run piping advantages does this extra-high pressure marine pump offer?
Developing up to approximately 70 m head across four-inch pipework, the QP402SXEDL100E pushes high liquid volumes through long wharf pipelines and up steep seawalls without hydraulic stalling.
What intake and discharge port arrangements are built into this casing?
Plumbing specifications for the QP402SXEDL100E include 4" x 4" BSP male threaded suction and discharge ports, providing convenient field connections.
What vertical suction elevation is supported during site drafting duties?
Vertical suction capability on the QP402SXEDL100E extends to approximately 7.6 m, enabling easy drafting from dams and channels.
