SKU: QP205SE/L48EVIT

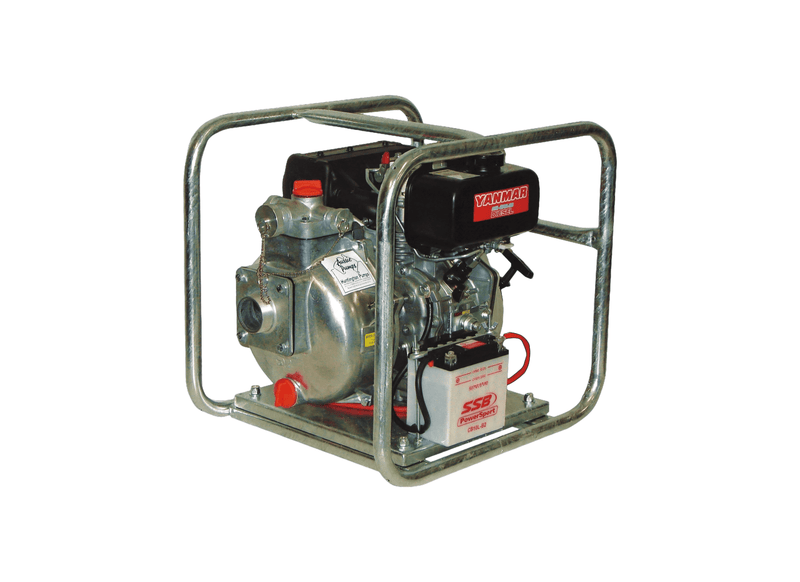

Aussie Pumps Viton Chief QP205SE/L48EVIT Aluminium Trailer Mount E-Stop Fire Pump with Yanmar Diesel Engine
Australia-Wide
(08) 9240 2992
Official Aussie Pumps
Peace of Mind
Product Overview
Electric key start is paired with Viton seals in this diesel transfer configuration for high-pressure chemical, weedicide, and diesel-fuel handling. Built for safe chemical mixing and diesel fuel transfer.
Hydraulic performance encompasses a maximum shut-off head of 60 m (85 PSI) at zero flow and an open-discharge flow capacity of up to 400 L/min at zero static head. The marine-grade aluminium casing houses a closed impeller, Viton mechanical seal, Viton check valve, and zinc-plated casing bolts simplify routine on-site servicing. Dry boxed mass: 70 kg. High-tensile body metallurgy resists outdoor weathering and operational casing wear.
Powered by an electric-start Yanmar L48 (4.8 HP) diesel engine in a steel roll frame (battery supplied separately). Plumbing features 2" inlet with 3-way discharge outlet (2 x 1" & 1 x 1.5") with replaceable flanged ports, self-priming lift reaching 7.6 m. High-torque Yanmar diesel engine drive delivers strong fuel economy on site.
Equipped with polycarbonate priming and drain plugs for straightforward field servicing. Supported by factory technical assembly diagrams, user manuals, and genuine replacement component stockists through Aussie Pumps distributor networks across Australia. Complete technical assembly schematics and spare parts stockists support ongoing site operations.
Features- Full Viton mechanical seals and elastomers protect against ag-chemicals and diesel fuel.
- Electric-start Yanmar L48 (4.8 HP) diesel engine in a protective steel roll frame (battery supplied separately).
- High-pressure delivery producing 60 m maximum head (85 PSI) and 400 L/min flow.
- Multi-port 2-inch inlet with 3-way discharge manifold for flexible hose setups.
- Basic control setup (no stop/start solenoid, no emergency stop switch).
- Self-priming wet end draws water from vertical suction depths up to 7.6 m.
- Includes a 5-year Aussie Pumps warranty on the pump body and a 2-year Yanmar diesel engine warranty.
SPECIFICATIONS
| Max Flow | 400 L/Min |
| Max Head | 60 m |
| Power | Yanmar L48 Diesel Electric Start Engine |
| Suitable For | Field Refueling |
| Body Material | Marine Grade Aluminium |
| Inlet Size | 50 mm |
| Outlet Size | 3-way (2 x 25 mm, 1 x 40 mm) |
| Warranty | 5 Years |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How does the engine package initiate rotational power in the field?
The Aussie Pumps Viton Chief Diesel Electric QP205SEV (QP205SE/L48EVIT) features propulsion from a Yanmar L48 4.8HP electric-start diesel engine, started reliably using electric key ignition.
What operational convenience does electric starting offer for field refueling?
With turnkey electric ignition, the QP205SE/L48EVIT starts effortlessly at the key switch, accelerating diesel fuel transfer and chemical spray batch preparation for mobile service operators.
What dynamic discharge rate and static head are developed in the field?
The QP205SE-L48EVIT provides flexible operational output with a maximum flow of approximately 400 L/min and a maximum head of approximately 60 m.
From what depth does the pump evacuate intake air to establish fluid prime?
The QP205SE L48EVIT evacuates suction line air from depths up to approximately 7.6 m, drafting water swiftly once primed.
Which port sizes and plumbing arrangements are provided on the wet end?
The QP205SE/L48EVIT provides connection threads consisting of 2" BSP suction port and a 3-way discharge manifold (two 1" and one 1.5" outlets), suiting quick hose connection.
