SKU: QP205SE/L48V

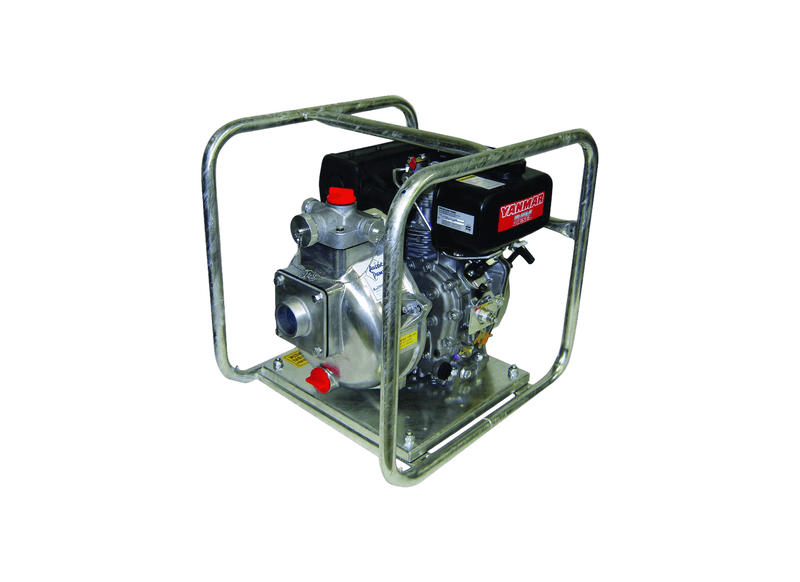

Aussie Pumps Viton Chief QP205SE/L48V Aluminium E-Stop Fire Pump with Yanmar Diesel Engine
Australia-Wide
(08) 9240 2992
Official Aussie Pumps
Peace of Mind
Product Overview
Recoil-start Yanmar L48 diesel power and Viton mechanical seals and elastomers are combined in this transfer configuration for high-pressure chemical, weedicide, and diesel-fuel duties. Built for safe chemical mixing and diesel fuel transfer across broadacre agricultural properties.
Hydraulic performance encompasses a maximum shut-off head of 60 m (85 PSI) at zero flow and an open-discharge flow capacity of up to 400 L/min at zero static head. The marine-grade aluminium casing houses a closed impeller, Viton mechanical seal, Viton check valve, and replaceable flanged ports. Boxed mass: 70 kg. High-tensile body metallurgy resists outdoor weathering and harsh operating environments.
Driven by a Yanmar L48 (4.8 HP) recoil-start diesel engine (Basic configuration: no stop/start solenoid, no emergency stop). Plumbing features a 2" inlet with 3-way discharge manifold (2 x 1" & 1 x 1.5"), self-priming to 7.6 m vertical suction depth. High-torque Yanmar diesel engine drive delivers strong fuel economy on site.
Built with zinc-plated casing bolts and polycarbonate priming plugs to simplify routine field maintenance. Supported by complete technical assembly schematics, user guides, and replacement parts stockists through Aussie Pumps distributor channels nationwide. Complete technical assembly schematics and spare parts stockists support ongoing site operations.
Features- Genuine Viton mechanical seals and elastomers resist chemical attack and diesel breakdown.
- Yanmar L48 (4.8 HP) recoil-start diesel engine provides low fuel consumption.
- Hydraulic limits: maximum shut-off head of 60 m (85 PSI) at zero flow, with open-discharge flow capacity up to 400 L/min at zero head.
- Multi-port 2-inch inlet with 3-way discharge manifold for flexible hose distribution.
- Marine-grade aluminium pump casing with replaceable flanged suction and discharge elbows.
- Self-primes rapidly from 7.6 m vertical suction lift through big-belly casing geometry.
- Includes a 5-year Aussie Pumps warranty on the pump body and a 2-year Yanmar diesel engine warranty.
SPECIFICATIONS
| Max Flow | 400 L/Min |
| Max Head | 60 m |
| Power | Yanmar L48 Diesel Recoil Start Engine |
| Suitable For | Diesel Transfer |
| Body Material | Marine Grade Aluminium |
| Inlet Size | 50 mm |
| Outlet Size | 3-way (2 x 25 mm, 1 x 40 mm) |
| Warranty | 5 Years |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How does the recoil diesel configuration support off-grid chemical and fuel transfer?
Requiring no electrical batteries, the Aussie Pumps Viton Chief Diesel QP205SEV (QP205SE/L48V) starts via manual pull-cord and runs on diesel fuel, providing dependable fuel and agrochemical transfer in isolated paddock locations.
What vertical priming limits are specified for unassisted water drafting?
Suction intake performance for the QP205SE/L48V reaches up to approximately 7.6 m in vertical depth, re-establishing prime smoothly.
What motor and startup configuration power this hydraulic assembly?
Driving the pump shaft of the QP205SE-L48V is a Yanmar L48 4.8HP recoil diesel engine, initiated via manual pull-cord rope start.
What pipe connections and discharge manifold fittings are standard?
Intake porting and delivery outlets on the QP205SE L48V incorporate 2" BSP intake with a 3-way discharge manifold (two 1" and one 1.5" ports), easing line coupling.
How much liquid volume and vertical lift pressure are achieved?
At zero discharge head, the QP205SE/L48V delivers up to approximately 400 L/min in flow, while shut-off head reaches up to approximately 60 m.
