SKU: QP205SEL48EVNFB

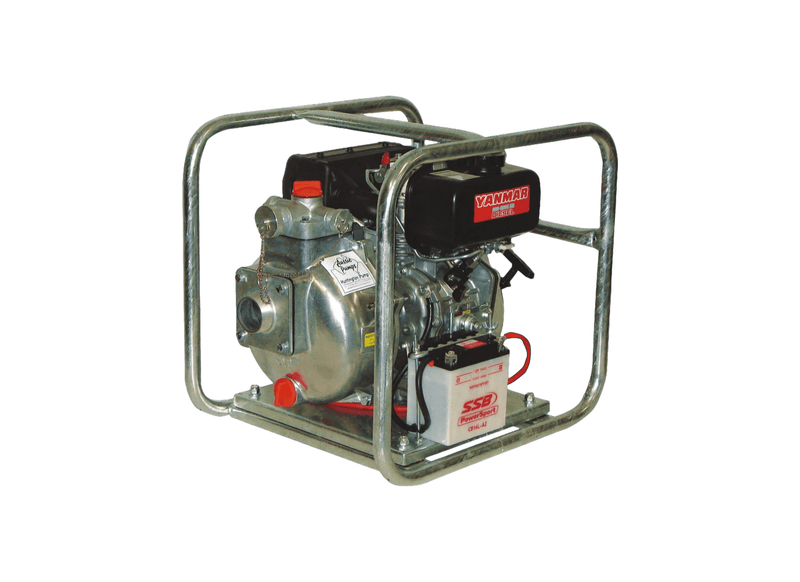

Aussie Pumps Viton Chief QP205SEL48EVNFB Aluminium Base Mount E-Stop Fire Pump with Yanmar Diesel Engine
Australia-Wide
(08) 9240 2992
Official Aussie Pumps
Peace of Mind
Product Overview
Key-switch starting convenience is built into this frame-free base layout through an engine stop/start solenoid.
Hydraulic performance encompasses a maximum shut-off head of 60 m (85 PSI) at zero flow and an open-discharge flow capacity of up to 400 L/min at zero static head. The marine-grade aluminium casing houses a closed impeller, Viton mechanical seal, Viton check valve, and replaceable flanged ports. Boxed mass: 65 kg in base trim. High-tensile body metallurgy resists outdoor weathering and harsh operating environments.
Driven by an electric-start Yanmar L48 (4.8 HP) diesel engine fitted with a stop/start solenoid (battery supplied separately). Plumbing incorporates a 2" inlet with 3-way discharge manifold (2 x 1" & 1 x 1.5"), self-priming to 7.6 m vertical suction depth. High-torque Yanmar diesel engine drive delivers strong fuel economy on site.
Built with replaceable flanged porting, zinc-plated casing bolts, and polycarbonate priming plugs to simplify routine field servicing. Supported by complete technical assembly documentation, user guides, and replacement component stockists through distributor channels. Polycarbonate priming plugs and zinc-plated casing bolts simplify routine on-site inspection and servicing.
Features- Engine stop/start solenoid fitted for key-switch starting and shutdown controls.
- Frame-free base layout (NFB) designed for compact skid and vehicle mounting (no emergency stop switch).
- Genuine Viton mechanical seals and check valve protect against chemical and diesel degradation.
- Electric-start Yanmar L48 (4.8 HP) diesel engine (battery supplied separately).
- Hydraulic limits: maximum shut-off head of 60 m (85 PSI) at zero flow, with open-discharge flow capacity up to 400 L/min at zero head.
- Multi-port 2-inch inlet with 3-way discharge manifold for flexible hose setups.
- Includes a 5-year Aussie Pumps warranty on the pump body and a 2-year Yanmar diesel engine warranty.
SPECIFICATIONS
| Max Flow | 400 L/Min |
| Max Head | 60 m |
| Power | Yanmar L48 Diesel Solenoid Start Engine |
| Suitable For | Lube Dispensing |
| Body Material | Marine Grade Aluminium |
| Inlet Size | 50 mm |
| Outlet Size | 3-way (2 x 25 mm, 1 x 40 mm) |
| Warranty | 5 Years |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How do the bare base and stop solenoid assist vehicle-mounted fuel dispensing?
The 12-volt stop solenoid on the Aussie Pumps Viton Chief Base Solenoid QP205SEV (QP205SEL48EVNFB) allows instant cab-controlled shutoff when dispensing nozzles are closed, preventing tank overflow.
What space-saving advantages are offered by the base-mounted configuration?
The compact bare base plate of the QP205SEL48EVNFB bolts flush onto service truck bodies and mobile trailers without consuming excess payload volume.
Which aggressive agricultural chemicals and fuel fluids are compatible with Viton seals?
Genuine Viton mechanical seals on the QP205SEL48EVNFB resist aromatic petroleum hydrocarbons, liquid fertilizers, and agrochemicals without degradation.
What combustion powerplant delivers drive and how is it started?
Shaft horsepower on the QP205SEL48EVNFB is provided by a Yanmar L48 4.8HP electric-start diesel engine, started via turnkey electric start with factory stop solenoid.
Which volumetric delivery and dynamic elevation limits apply?
The QP205SEL48EVNFB generates up to approximately 400 L/min in volumetric displacement and develops a maximum head of approximately 60 m.
