SKU: QP205SEV/GX200

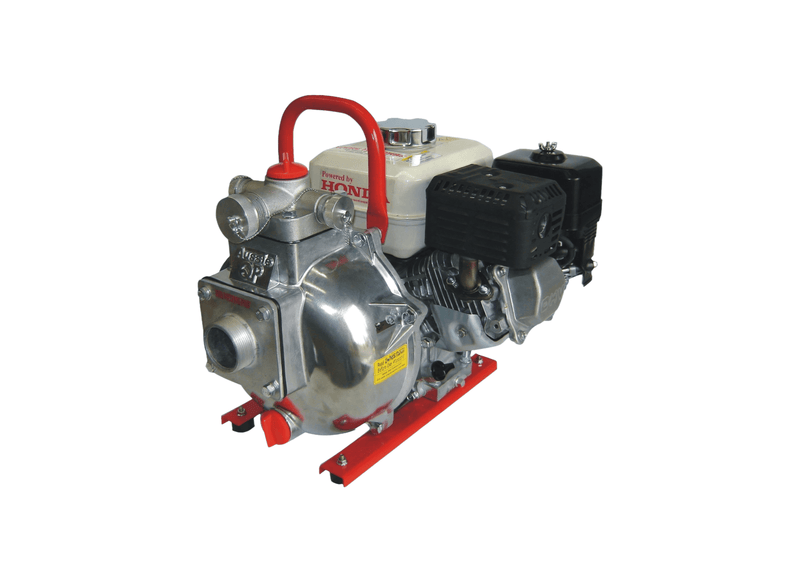

Aussie Pumps Viton Chief QP205SEV/GX200 Aluminium 6.5HP Skid Mount Fire Pump with Honda Petrol Engine
Australia-Wide
(08) 9240 2992
Official Aussie Pumps
Peace of Mind
Product Overview
With a Honda GX200 petrol engine and genuine Viton mechanical seals and elastomers, this transfer configuration is intended for diesel fuel, oils, and non-combustible liquid chemicals. Built for safe chemical mixing and diesel fuel transfer across broadacre agricultural properties.
Hydraulic performance encompasses a maximum shut-off head of 75 m (107 PSI) at zero flow and an open-discharge flow capacity of up to 450 L/min at zero static head. The marine-grade aluminium casing houses a single-piece closed impeller, Viton mechanical seal, and Viton check valve. Boxed equipment mass is not separately stated in catalog trim. High-tensile body metallurgy resists outdoor weathering and operational casing wear.
Driven by a commercial Honda GX200 (6.5 HP) petrol engine with recoil start. Plumbing connections feature a 2" inlet with 3-way outlet manifold (2 x 1" & 1 x 1.5") with replaceable flanged ports, self-priming reliably from vertical suction depths up to 7.6 m. Commercial Honda engine drive provides Steady starting torque and long operating life.
Built with zinc-plated casing bolts and polycarbonate drain plugs to streamline field servicing during ag-chem mixing shifts. Supported by complete technical assembly documentation, product schematics, and replacement component stockists across distributor networks. Complete technical assembly schematics and spare parts stockists support ongoing field operations.
Features- Full Viton mechanical seals and elastomers protect against chemical attack and diesel degradation.
- Hydraulic limits: maximum shut-off head of 75 m (107 PSI) at zero flow, with open-discharge flow capacity up to 450 L/min at zero head.
- Honda GX200 (6.5 HP) petrol engine mounted inside a protective steel roll frame.
- Multi-port 2-inch inlet with 3-way discharge manifold for multi-line hose deployment.
- Marine-grade aluminium casing with replaceable flanged suction and discharge elbows.
- Self-priming internal wet end picks up prime from suction depths up to 7.6 m.
- Includes a 5-year Aussie Pumps warranty on the pump body and a 3-year Honda GX engine warranty.
SPECIFICATIONS
| Max Flow | 450 L/Min |
| Max Head | 75 m |
| Power | Honda GX200 Petrol Engine |
| Suitable For | Boom Spraying |
| Body Material | Marine Grade Aluminium |
| Inlet Size | 50 mm |
| Outlet Size | 3-way (2 x 25 mm, 1 x 40 mm) |
| Warranty | 5 Years |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What vertical suction draw can be achieved without line flooding equipment?
Rated for vertical suction draws up to approximately 7.6 m, the Aussie Pumps Viton Chief Chemical QP205SEV (QP205SEV/GX200) establishes prime without external filling aids.
How do internal Viton elastomers withstand broadacre agrochemical pumping?
Internal Viton O-rings and mechanical seal faces on the QP205SEV/GX200 resist degradation from aggressive crop protection chemicals, preventing leaks and maintaining steady pressure.
Which motor configuration provides propulsion and how does it start up?
Configured with a Honda GX200 6.5HP petrol engine, the QP205SEV-GX200 begins pumping via manual recoil pull starter.
How much volumetric flow and shut off head are developed?
The QP205SEV GX200 develops up to approximately 75 m in maximum head and yields a maximum volumetric flow rate of approximately 450 L/min.
How are the fluid intake and discharge lines connected to the pump?
The QP205SEV/GX200 is configured with 2" BSP suction intake with a 3-way discharge manifold (two 1" and one 1.5" outlets), supporting common suction and delivery hoses.
