Roll over image to zoom
SKU: VC QP205SEV/GX160

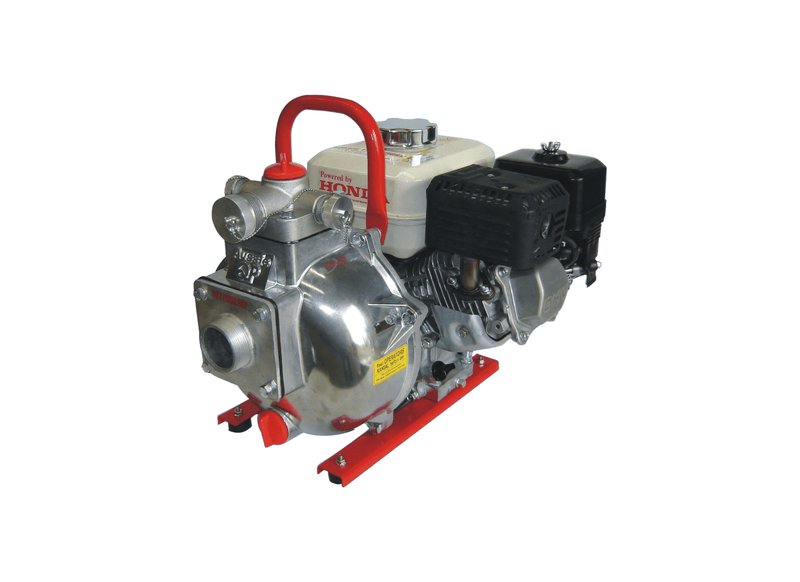

Aussie Pumps Viton Chief VC QP205SEV/GX160 Aluminium 5.5HP Skid Mount Fire Pump with Honda Petrol Engine
Australia-Wide
(08) 9240 2992
Official Aussie Pumps
Peace of Mind
Product Overview
Genuine Viton mechanical seals and internal elastomers distinguish this transfer-pump configuration for diesel fuel, oils, and non-combustible liquid weedicides. Built for safe chemical mixing and diesel fuel transfer across agricultural and commercial properties.
Hydraulic performance encompasses a maximum shut-off head of 75 m (107 PSI) at zero flow and an open-discharge flow capacity of up to 450 L/min at zero static head. Built with a marine-grade aluminium casing, single-piece closed impeller, Viton mechanical seal, and Viton check valve. Mass: 26 kg in roll frame. High-tensile body metallurgy resists outdoor weathering and operational casing wear.
Powered by a Honda GX160 (5.5 HP) petrol engine with recoil start. Plumbing connections feature a 2" BSP male inlet and 3-way discharge manifold (2 x 1" & 1 x 1.5") with replaceable flanged ports, self-priming from vertical suction depths up to 7.6 m. Commercial Honda engine drive provides Steady starting torque and long operating life.
Equipped with zinc-plated casing bolts and polycarbonate plugs for routine maintenance in chemical transfer service. Technical assembly schematics, user guides, and genuine replacement component stockists are available nationwide through Aussie Pumps distributor networks. Complete technical assembly schematics and spare parts stockists support ongoing field servicing.
Features- Genuine Viton mechanical seals and check valve resist chemical breakdown and diesel swelling.
- Hydraulic limits: maximum shut-off head of 75 m (107 PSI) at zero flow, with open-discharge flow capacity up to 450 L/min at zero head.
- Honda GX160 (5.5 HP) commercial petrol engine with Steady recoil starting.
- Multi-port 2-inch inlet with 3-way discharge manifold for flexible hose distribution.
- Marine-grade aluminium pump body with replaceable flanged ports.
- Self-primes rapidly from 7.6 m vertical suction depth through big-belly geometry.
- Includes a 5-year Aussie Pumps warranty on the pump body and a 3-year Honda GX engine warranty.
SPECIFICATIONS
| Max Flow | 450 L/Min |
| Max Head | 75 m |
| Power | Honda GX160 Petrol Engine |
| Suitable For | Fertilizer Transfer |
| Body Material | Marine Grade Aluminium |
| Inlet Size | 50 mm |
| Outlet Size | 3-way (2 x 25 mm, 1 x 40 mm) |
| Warranty | 5 Years |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Which chemical fluids and petroleum products are compatible with Viton seals?
Genuine Viton mechanical seals and internal casing elastomers equip the Aussie Pumps Viton Chief Chemical QP205SEV (VC QP205SEV/GX160) to safely pump diesel fuel, kerosene, selective weedicides, and liquid nitrogen fertilizers without rubber swelling.
How is mechanical power generated and initiated on this pump assembly?
The VC QP205SEV/GX160 runs on a Honda GX160 5.5HP petrol engine, started promptly through manual recoil pull starter.
What peak fluid output and dynamic discharge head are engineered?
Maximum performance boundaries for the VC-QP205SEV-GX160 encompass approximately 450 L/min in open discharge flow and approximately 75 m in shut-off head.
Which plumbing threads and manifold connections come on this unit?
Intake and outlet ports on the VC QP205SEV GX160 feature 2" BSP male intake and a 3-way discharge manifold (two 1" ports and one 1.5" port), permitting swift pipe hookup.
How effectively does the internal priming diffuser lift fluid from low sumps?
The VC/QP205SEV/GX160 primes swiftly from vertical depths reaching up to approximately 7.6 m, maintaining steady line suction.
