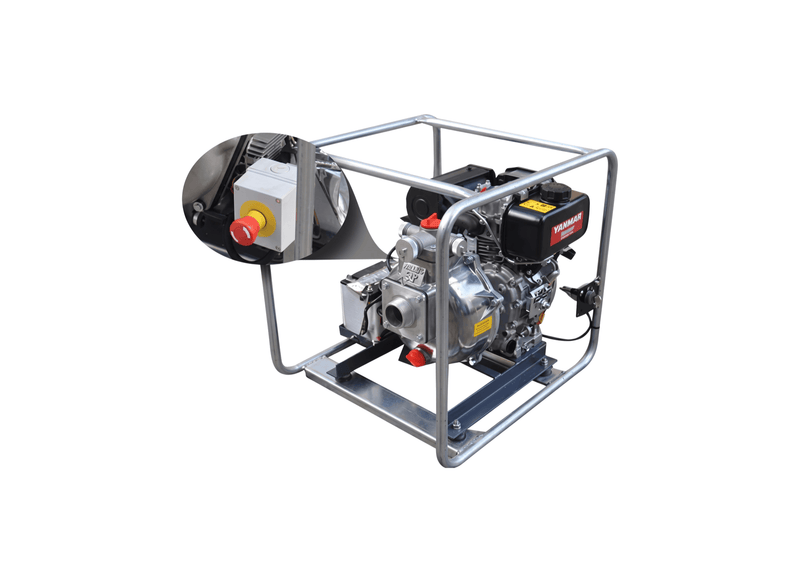

Aussie Pumps Viton Master QP205/L48EVITES Aluminium E-Stop Fire Pump with Yanmar Diesel Engine
Australia-Wide
(08) 9240 2992
Official Aussie Pumps
Peace of Mind
Product Overview
An integrated Emergency Stop Switch (E-Stop) and engine stop/start solenoid are fitted to this portable diesel configuration for chemical, weedicide, and diesel-fuel transfer where manual emergency shutdown controls are specified. Built for safe chemical mixing and diesel fuel transfer across agricultural and commercial properties.
Hydraulic performance encompasses a maximum shut-off head of 60 m (85 PSI) at zero flow and an open-discharge flow capacity of up to 400 L/min at zero static head. The marine-grade aluminium casing houses a closed impeller, Viton mechanical seal, Viton check valve, and replaceable flanged ports. Boxed weight: 70 kg in full roll frame. High-tensile body metallurgy resists outdoor weathering.
Powered by an electric-start Yanmar L48 (4.8 HP) diesel engine with stop/start solenoid and E-Stop switch (battery supplied separately). Plumbing incorporates a 2" inlet with 3-way discharge manifold (2 x 1" & 1 x 1.5"), with self-priming suction lift reaching 7.6 m. High-torque Yanmar diesel engine drive delivers strong fuel economy.
Full wrap-around roll frame protects components during site transport. Supported by complete technical assembly schematics, product manuals, and replacement component stockists through Aussie Pumps distribution networks across Australia for long-term site service. Complete technical assembly schematics and spare parts stockists support ongoing field operations.
Features- Integrated Emergency Stop Switch (E-Stop) delivers instant engine shutdown.
- Engine stop/start solenoid fitted for key-switch control and safety shutdown logic.
- Genuine Viton mechanical seals and check valve resist chemical breakdown and fuel swelling.
- Electric-start Yanmar L48 (4.8 HP) diesel engine for continuous site duty (battery supplied separately).
- High-pressure delivery producing 60 m maximum head (85 PSI) and 400 L/min flow.
- Multi-port 2-inch inlet with 3-way discharge manifold for flexible hose setups.
- Includes a 5-year Aussie Pumps warranty on the pump body and a 2-year Yanmar diesel engine warranty.
SPECIFICATIONS
| Max Flow | 400 L/Min |
| Max Head | 60 m |
| Power | Yanmar L48 Diesel Electric Start Engine |
| Suitable For | Mine Fire Defense |
| Body Material | Marine Grade Aluminium |
| Inlet Size | 50 mm |
| Outlet Size | 3-way (2 x 25 mm, 1 x 40 mm) |
| Warranty | 5 Years |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What mine site compliance features are fitted to this emergency stop unit?
The Aussie Pumps Viton Chief Mine Spec QP205 (QP205/L48EVITES) incorporates a certified lockable emergency stop button, battery isolator, and factory stop solenoid, meeting strict safety regulations on Australian mine leases.
Which petroleum products and weedicides can safely pass through the Viton seal assembly?
The QP205/L48EVITES is fitted with genuine Viton seals, accommodating diesel, kerosene, and selective herbicides safely without swelling or chemical decay.
What drive system is standard and how is starting initiated on site?
The QP205-L48EVITES is motivated by a Yanmar L48 4.8HP electric-start diesel engine, beginning operation through key-switch electric start with emergency stop switch.
What dynamic throughput and total discharge pressure are achieved?
At rated engine speed, the QP205 L48EVITES delivers a maximum flow of approximately 400 L/min and develops a maximum head of approximately 60 m.
What intake and outlet threads are built into the pump housing?
Port attachments fitted to the QP205/L48EVITES provide 2" BSP suction intake with a 3-way discharge manifold (two 1" and one 1.5" outlets), facilitating fast hose connections.
