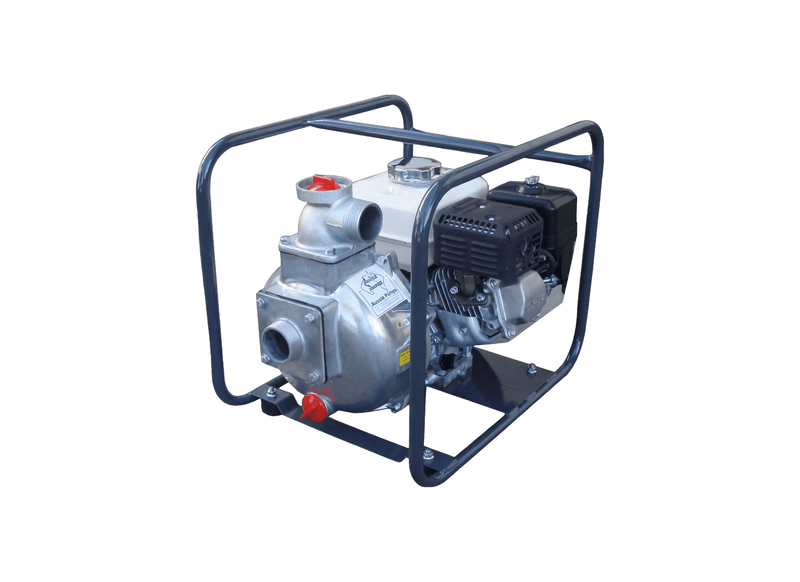

Aussie Pumps Viton Master QP209/GX160VIT Aluminium 5.5HP Trailer Mount Chemical Transfer Pump with Honda Petrol Engine
Australia-Wide
(08) 9240 2992
Official Aussie Pumps
Peace of Mind
Product Overview
An open cast-iron impeller and Viton seals equip this compact-port pump for high-flow transfer of dirty liquids, diesel fuel, and non-combustible chemicals. Built in a full roll frame for agricultural and site transport. Built for safe chemical mixing and diesel fuel transfer across agricultural and commercial properties.
Hydraulic performance encompasses a maximum shut-off head of 33 m (47 PSI) at zero flow and an open-discharge flow capacity of up to 800 L/min at zero static head. The marine-grade aluminium volute and casing house an open cast-iron impeller, Viton mechanical seal, and Viton check valve. Mass: 30 kg. High-tensile body metallurgy resists outdoor weathering and operational casing wear.
Driven by a Honda GX160 (5.5 HP) petrol engine with recoil start. Plumbing connections incorporate full 2" x 2" BSP male ports with replaceable flanged porting, while the self-priming internal hydraulics pick up prime reliably from suction depths up to 7.6 m. Commercial Honda engine drive provides Steady starting torque and long operating life.
Equipped with replaceable flanged suction and discharge ports for easy field inspection and servicing. Technical assembly documentation, schematics, and factory replacement parts stockists are available nationwide through Aussie Pumps distributor networks. Polycarbonate priming plugs and zinc-plated casing bolts simplify routine field maintenance.
Features- Genuine Viton mechanical seals and elastomers protect against ag-chemicals and diesel.
- Open cast-iron impeller paired with a marine-grade aluminium volute and casing.
- High-flow 2-inch porting moves up to 800 L/min (with 2-inch outlet configuration).
- Honda GX160 (5.5 HP) commercial petrol engine delivers Steady recoil starting.
- Protective steel roll frame with anti-vibration rubber mounting isolators.
- Self-priming internal wet end draws fluid from vertical suction depths up to 7.6 m.
- Includes a 5-year Aussie Pumps warranty on the pump body and a 3-year Honda GX engine warranty.
SPECIFICATIONS
| Max Flow | 800 L/Min |
| Max Head | 33 m |
| Power | Honda GX160 Petrol Engine |
| Suitable For | Fertilizer Transfer |
| Body Material | Marine Grade Aluminium |
| Inlet Size | 50 mm |
| Outlet Size | 50 mm |
| Warranty | 5 Years |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What advantage does the open cast-iron impeller offer during chemical transfer?
The open impeller on the Aussie Pumps Viton Open Impeller QP209VIT (QP209/GX160VIT) passes suspended particulate crystals and thick slurries without clogging, while Viton elastomers protect internal shaft seals from corrosive fluid attack.
What suction and delivery pipe threads are fitted to the casing?
Connection ports engineered on the QP209/GX160VIT provide 2" x 2" BSP male threaded suction and discharge ports, accommodating standard delivery lines.
What maximum fluid displacement and head pressure are delivered?
Under open discharge conditions, the QP209-GX160VIT moves up to approximately 800 L/min in volume and develops up to approximately 33 m in total head.
What drive engine is paired with the pump and how is it ignited?
The QP209 GX160VIT draws engine power from a Honda GX160 5.5HP petrol engine, started smoothly with manual recoil pull starter.
From what depth can this self priming assembly pull water from storage tanks?
The QP209/GX160VIT draws fluid vertically from depths up to approximately 7.6 m, supporting dependable operation across open water sources.
