SKU: QP209/L48EVIT

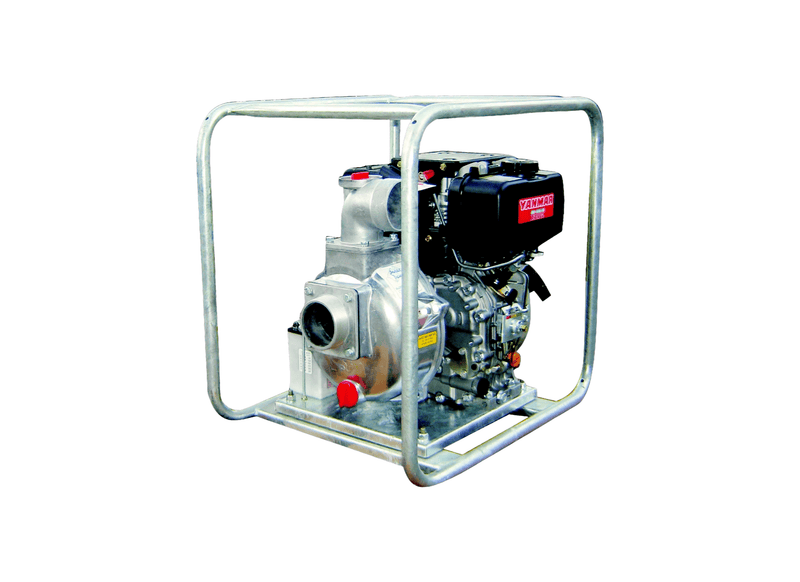

Aussie Pumps Viton Master QP209/L48EVIT Aluminium Trailer Mount E-Stop Chemical Transfer Pump with Yanmar Diesel Engine
Australia-Wide
(08) 9240 2992
Official Aussie Pumps
Peace of Mind
Product Overview
Electric key-switch ignition distinguishes this compact-port diesel configuration for high-volume chemical and fuel transfer.
Hydraulic performance encompasses a maximum shut-off head of 28 m (40 PSI) at zero flow and an open-discharge flow capacity of up to 700 L/min at zero static head. Built with a marine-grade aluminium volute and casing, open cast-iron impeller, Viton mechanical seal, and Viton check valve. Boxed mass: 70 kg. High-tensile body metallurgy resists outdoor weathering and operational casing wear.
Driven by an electric-start Yanmar L48 (4.8 HP) diesel engine in a steel roll frame (battery supplied separately). Plumbing incorporates 2" x 2" BSP male ports with replaceable flanged porting, self-priming from vertical suction depths up to 7.6 m. High-torque Yanmar diesel engine drive delivers strong fuel economy on site.
Equipped with zinc-plated casing bolts and polycarbonate priming/drain plugs for routine maintenance. Technical assembly documentation, user guides, and replacement component stockists are available nationwide through Aussie Pumps distribution channels. Complete technical assembly schematics and spare parts stockists support ongoing site operations.
Features- Full Viton mechanical seals and elastomers protect against ag-chemicals and diesel fuel.
- Open cast-iron impeller paired with a marine-grade aluminium volute and casing.
- Electric-start Yanmar L48 (4.8 HP) diesel engine in a steel roll frame (battery supplied separately).
- High-flow 2-inch porting moves up to 700 L/min (with 2-inch outlet configuration).
- Basic control setup (no stop/start solenoid, no emergency stop switch).
- Self-priming internal wet end draws fluid from vertical suction depths up to 7.6 m.
- Includes a 5-year Aussie Pumps warranty on the pump body and a 2-year Yanmar diesel engine warranty.
SPECIFICATIONS
| Max Flow | 700 L/Min |
| Max Head | 28 m |
| Power | Yanmar L48 Diesel Electric Start Engine |
| Suitable For | Rig Fueling |
| Body Material | Marine Grade Aluminium |
| Inlet Size | 50 mm |
| Outlet Size | 50 mm |
| Warranty | 5 Years |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What vertical lift performance is achievable from low agricultural sumps?
The Aussie Pumps Viton Open Impeller Diesel Electric QP209VIT (QP209/L48EVIT) draws water vertically from up to approximately 7.6 m suction elevation, maintaining steady line flow.
What maximum water throughput and dynamic head pressure are produced?
Rated output parameters for the QP209/L48EVIT encompass a maximum flow rate of approximately 700 L/min and a maximum head of approximately 28 m.
What mechanical drive system and ignition controls are fitted?
The QP209-L48EVIT pairs a heavy wet end with a Yanmar L48 4.8HP electric-start diesel engine, utilizing key-switch electric start.
How do electric starting and Viton seals streamline machinery fleet fueling?
Key-switch electric starting and chemically inert Viton seals on the QP209 L48EVIT allow service crews to pump high volumes of clean diesel into heavy machinery swiftly without seal leakage.
Which factory warranty terms and replacement parts support apply nationwide?
Equipment reliability for the QP209/L48EVIT is backed by a 5-year pump end warranty and a 2-year Yanmar diesel engine warranty, with nationwide service agent and spare parts support.
