SKU: QP209/L48VIT

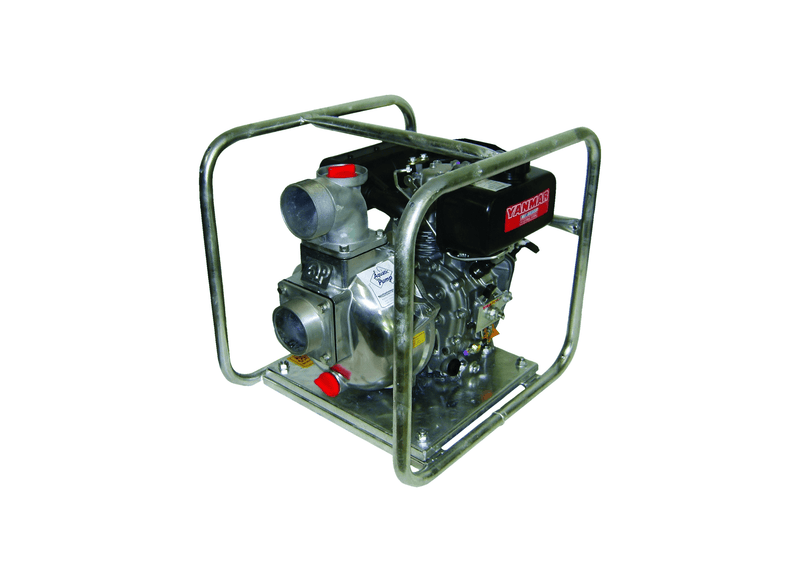

Aussie Pumps Viton Master QP209/L48VIT Aluminium Trailer Mount E-Stop Chemical Transfer Pump with Yanmar Diesel Engine
Australia-Wide
(08) 9240 2992
Official Aussie Pumps
Peace of Mind
Product Overview
An open cast-iron impeller and Viton seals are fitted to this recoil-start diesel configuration for chemical and fuel transfer. Built for safe chemical mixing and diesel fuel transfer across broadacre agricultural properties.
Hydraulic performance encompasses a maximum shut-off head of 28 m (40 PSI) at zero flow and an open-discharge flow capacity of up to 700 L/min at zero static head. The marine-grade aluminium volute and casing house an open cast-iron impeller, Viton mechanical seal, and Viton check valve. Mass: 70 kg. High-tensile body metallurgy resists outdoor weathering and operational casing wear.
Driven by a Yanmar L48 (4.8 HP) recoil-start diesel engine. Plumbing connections feature full 2" x 2" BSP male ports with replaceable flanged porting, while self-priming internal wet end passages draw fluid from vertical suction depths up to 7.6 m. High-torque Yanmar diesel engine drive delivers strong fuel economy on site.
Built with zinc-plated casing bolts and polycarbonate drain plugs for easy site servicing. Supported by complete technical assembly schematics, user guides, and genuine replacement component stockists through Aussie Pumps distributor networks across Australia. Complete technical assembly schematics and spare parts stockists support ongoing site operations.
Features- Genuine Viton mechanical seals and elastomers protect against ag-chemicals and diesel.
- Open cast-iron impeller paired with a marine-grade aluminium volute and casing.
- High-flow 2-inch porting moves up to 700 L/min (with 2-inch outlet configuration).
- Yanmar L48 (4.8 HP) recoil-start diesel engine delivers low fuel consumption.
- Basic control configuration (no stop/start solenoid, no emergency stop switch).
- Self-priming internal wet end draws fluid from vertical suction depths up to 7.6 m.
- Includes a 5-year Aussie Pumps warranty on the pump body and a 2-year Yanmar diesel engine warranty.
SPECIFICATIONS
| Max Flow | 700 L/Min |
| Max Head | 28 m |
| Power | Yanmar L48 Diesel Recoil Start Engine |
| Suitable For | Camp Refueling |
| Body Material | Marine Grade Aluminium |
| Inlet Size | 50 mm |
| Outlet Size | 50 mm |
| Warranty | 5 Years |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How are intake and outlet fittings configured for rapid hose attachment?
Suction and discharge fittings on the Aussie Pumps Viton Open Impeller Diesel QP209VIT (QP209/L48VIT) include 2" x 2" BSP male threaded suction and delivery ports, facilitating rapid field deployment.
Which power unit is installed and what starting mechanism is used?
Mechanical power output for the QP209/L48VIT is produced by a Yanmar L48 4.8HP recoil diesel engine, initiated through manual recoil rope start.
Why are Viton mechanical seals specified for bulk diesel relocation?
Viton elastomers withstand aromatic hydrocarbons found in diesel, maintaining positive seal contact without softening, blistering, or hardening over extended transfer cycles.
Which peak volumetric output and elevation limits apply to this pump?
Dynamic performance for the QP209 L48VIT spans up to approximately 700 L/min in volumetric water displacement and up to approximately 28 m in total head.
How does the self priming wet end manage deep vertical intake draws on site?
Operating with high self-priming suction, the QP209/L48VIT pulls fluid vertically from up to approximately 7.6 m.
