SKU: QP303/GX160VIT

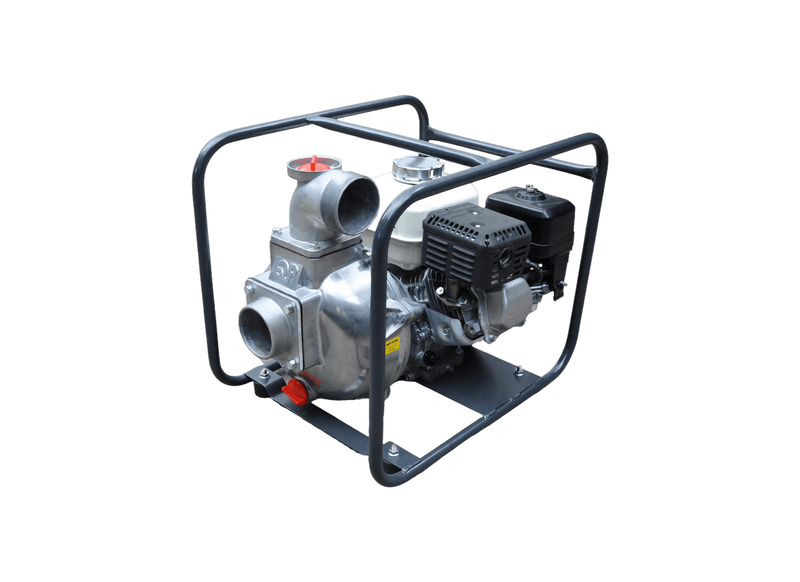

Aussie Pumps Viton Master QP303/GX160VIT Aluminium 5.5HP Trailer Mount Chemical Transfer Pump with Honda Petrol Engine
Australia-Wide
(08) 9240 2992
Official Aussie Pumps
Peace of Mind
Product Overview
Three-inch porting and Viton chemical seals form the core of this high-flow transfer setup for liquid fertilizer, agricultural chemicals, and diesel fuel. Built for safe chemical mixing and diesel fuel transfer across broadacre agricultural properties.
Hydraulic performance encompasses a maximum shut-off head of 32 m (45 PSI) at zero flow and an open-discharge flow capacity of up to 1,000 L/min at zero static head. Built with a marine-grade aluminium casing and volute, the wet end houses an open cast-iron impeller, Viton mechanical seal, and Viton check valve. Weight: 30 kg. High-tensile body metallurgy resists outdoor weathering and harsh operating environments.
Powered by a commercial Honda GX160 (5.5 HP) petrol engine with recoil start. Plumbing features full 3" x 3" BSP male ports with replaceable flanged suction porting, self-priming reliably from vertical suction depths up to 7.6 m. Commercial Honda engine drive provides Steady starting torque and long operating life.
Built with zinc-plated casing bolts and polycarbonate drain plugs to streamline field servicing during ag-chem batching operations. Supported by complete technical assembly schematics, user guides, and genuine replacement component stockists across distributor channels. Complete technical assembly schematics and spare parts stockists support ongoing field servicing.
Features- Full Viton mechanical seals and internal elastomers for liquid chemical and diesel transfer.
- High-capacity 3-inch porting achieves a maximum flow rate of 1,000 L/min.
- Open cast-iron impeller paired with a marine-grade aluminium volute and casing.
- Honda GX160 (5.5 HP) petrol engine mounted inside a protective steel roll frame.
- Self-priming internal wet end draws fluid from vertical suction depths up to 7.6 m.
- Replaceable flanged suction port simplifies routine field inspection and maintenance.
- Includes a 5-year Aussie Pumps warranty on the pump body and a 3-year Honda GX engine warranty.
SPECIFICATIONS
| Max Flow | 1000 L/Min |
| Max Head | 32 m |
| Power | Honda GX160 Petrol Engine |
| Suitable For | Spray Loading |
| Body Material | Marine Grade Aluminium |
| Inlet Size | 80 mm |
| Outlet Size | 80 mm |
| Warranty | 5 Years |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How is the combustion powerplant set up for field starting?
Supplying mechanical drive to the Aussie Pumps Viton Gusher Chemical QP303VIT (QP303/GX160VIT) is a Honda GX160 5.5HP petrol engine, operated through manual recoil pull starter.
How does this high-flow Viton assembly accelerate bulk chemical pod transfer?
Delivering high volumetric flow through 3-inch ports with full Viton seal compatibility, the QP303/GX160VIT empties bulk chemical pods and intermediate bulk containers in minutes.
What vertical lift capability is engineered for open water point drafting?
With big-belly casing geometry, the QP303-GX160VIT achieves rapid self-priming from vertical suction depths up to approximately 7.6 m.
Which hydraulic output and total elevation parameters apply?
The QP303 GX160VIT is rated to supply up to approximately 1,000 L/min in liquid displacement and up to approximately 32 m in vertical head elevation.
Which connection hardware and outlet ports are incorporated?
The QP303/GX160VIT offers plumbing connections comprising 3" x 3" BSP male threaded inlet and outlet connections, matching standard fittings.
