SKU: QP303/GX200VIT

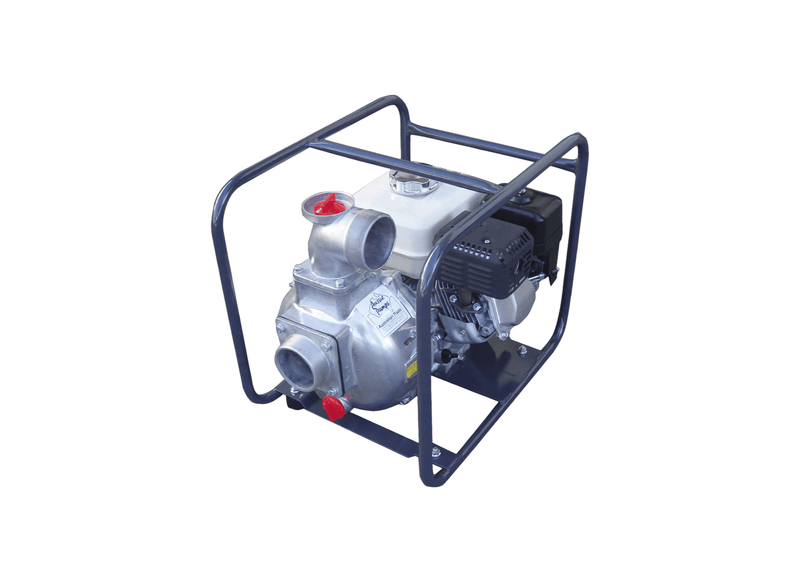

Aussie Pumps Viton Master QP303/GX200VIT Aluminium 6.5HP Trailer Mount Chemical Transfer Pump with Honda Petrol Engine
Australia-Wide
(08) 9240 2992
Official Aussie Pumps
Peace of Mind
Product Overview
A Honda GX200 petrol engine drives this large-port transfer configuration, with Viton mechanical seals and a check valve for chemical and diesel-fuel handling. Viton mechanical seals and check valve protect against chemical swelling and seal degradation in a roll frame. Built for safe chemical mixing and diesel fuel transfer across agricultural and commercial properties.
Hydraulic performance encompasses a maximum shut-off head of 32 m (45 PSI) at zero flow and an open-discharge flow capacity of up to 1,000 L/min at zero static head. The marine-grade aluminium casing and volute house an open cast-iron impeller, Viton mechanical seal, and Viton check valve. Boxed mass: 30 kg. High-tensile body metallurgy resists outdoor weathering and operational casing wear.
Powered by a Honda GX200 (6.5 HP) petrol engine with recoil start. Plumbing connections feature full 3" x 3" BSP male ports with replaceable flanged suction porting, self-priming reliably from vertical suction depths up to 7.6 m. Commercial Honda engine drive provides Steady starting torque and long operating life.
Equipped with zinc-plated casing bolts and polycarbonate drain plugs for straightforward field servicing. Supported by factory technical assembly diagrams, user manuals, and replacement component stockists through Aussie Pumps distributor networks across Australia. Complete technical assembly schematics and spare parts stockists support ongoing field operations.
Features- Genuine Viton mechanical seals and elastomers protect against ag-chemicals and diesel fuel.
- High-capacity 3-inch porting moves up to 1,000 L/min for fast batch mixing.
- Open cast-iron impeller paired with a marine-grade aluminium volute and casing.
- Honda GX200 (6.5 HP) commercial petrol engine in a protective steel roll frame.
- Self-priming internal wet end picks up prime from vertical suction depths up to 7.6 m.
- Replaceable flanged suction port simplifies field repairs and hose servicing.
- Includes a 5-year Aussie Pumps warranty on the pump body and a 3-year Honda GX engine warranty.
SPECIFICATIONS
| Max Flow | 1000 L/Min |
| Max Head | 32 m |
| Power | Honda GX200 Petrol Engine |
| Suitable For | Yard Refueling |
| Body Material | Marine Grade Aluminium |
| Inlet Size | 80 mm |
| Outlet Size | 80 mm |
| Warranty | 5 Years |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What open discharge throughput and dynamic head are rated?
Hydraulic ratings for the Aussie Pumps Viton Gusher Chemical QP303VIT (QP303/GX200VIT) specify a maximum flow rate of approximately 1,000 L/min and a maximum head of approximately 32 m.
How are suction lines and delivery hoses attached to this assembly?
Plumbing hardware integrated into the QP303/GX200VIT encompasses 3" x 3" BSP male threaded suction and discharge ports, simplifying field attachment.
What makes this high-flow Viton pump suitable for bulk diesel relocation?
Combining Viton chemical elastomers with high-volume hydraulic galleries, the QP303-GX200VIT transfers clean diesel fuel between bulk tanks and field machinery without seal degradation.
Which engine package delivers rotational drive across daily duties?
The QP303 GX200VIT is matched with a Honda GX200 6.5HP petrol engine, featuring manual recoil pull starter for everyday convenience.
How deep can the suction hose draw water during dam and creek pumping?
The QP303/GX200VIT lifts liquid vertically from depths up to approximately 7.6 m, enabling easy water harvesting from streams.
