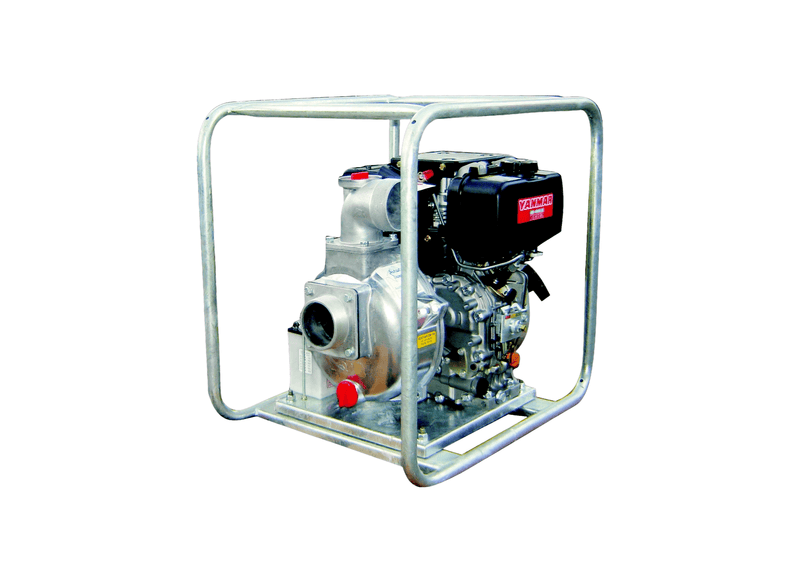

Aussie Pumps Viton Master QP303/L48EVIT Aluminium Trailer Mount E-Stop Chemical Transfer Pump with Yanmar Diesel Engine
Australia-Wide
(08) 9240 2992
Official Aussie Pumps
Peace of Mind
Product Overview
Electric key start and large-port suction and discharge define this diesel transfer configuration for high-volume chemical and fuel handling.
Hydraulic performance encompasses a maximum shut-off head of 30 m (43 PSI) at zero flow and an open-discharge flow capacity of up to 1,050 L/min at zero static head. Constructed with a marine-grade aluminium casing and volute, the wet end houses an open cast-iron impeller, Viton seal, and Viton check valve. Mass: 70 kg. High-tensile body metallurgy resists outdoor weathering and operational casing wear.
An electric-start Yanmar L48 (4.8 HP) diesel engine provides drive power (battery supplied separately). Plumbing features 3" x 3" BSP male ports with replaceable flanged suction porting, self-priming reliably from vertical suction depths up to 7.6 m. High-torque Yanmar diesel engine drive delivers strong fuel economy on site.
Equipped with zinc-plated casing bolts and polycarbonate priming/drain plugs for straightforward field servicing. Supported by factory technical assembly schematics, product guides, and replacement component stockists through distributor networks across Australia. Complete technical assembly schematics and spare parts stockists support ongoing field operations.
Features- Full Viton mechanical seals and elastomers protect against chemical attack and diesel degradation.
- High-capacity 3-inch porting moves up to 1,050 L/min for fast batch mixing.
- Open cast-iron impeller paired with a marine-grade aluminium volute and casing.
- Electric-start Yanmar L48 (4.8 HP) diesel engine in a protective roll frame (battery supplied separately).
- Basic control setup (no stop/start solenoid, no emergency stop switch).
- Self-priming internal wet end draws fluid from vertical suction depths up to 7.6 m.
- Includes a 5-year Aussie Pumps warranty on the pump body and a 2-year Yanmar diesel engine warranty.
SPECIFICATIONS
| Max Flow | 1050 L/Min |
| Max Head | 30 m |
| Power | Yanmar L48 Diesel Electric Start Engine |
| Suitable For | Depot Fueling |
| Body Material | Marine Grade Aluminium |
| Inlet Size | 80 mm |
| Outlet Size | 80 mm |
| Warranty | 5 Years |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Which drive motor is incorporated and what starting method applies?
The Aussie Pumps Viton Gusher Diesel Electric QP303VIT (QP303/L48EVIT) relies upon a Yanmar L48 4.8HP electric-start diesel engine, equipped with key-switch electric start for field duty.
What total hydraulic capacity and discharge height are developed?
Tested performance boundaries for the QP303/L48EVIT indicate a maximum flow rate of approximately 1,050 L/min and a maximum head of approximately 30 m.
How do intake and delivery lines attach to the pump connections?
Connection couplings supplied with the QP303-L48EVIT incorporate 3" x 3" BSP male threaded suction and discharge ports, suiting standard hoses.
How does electric key start simplify high-volume diesel and chemical transfer?
The turnkey ignition system on the QP303 L48EVIT allows operators to start high-flow diesel transfer with ease, avoiding manual cranking and maintaining steady volumetric discharge.
What vertical suction capacity is available for rapid dewatering operations?
The QP303/L48EVIT incorporates a self-priming wet end that draws water vertically from up to approximately 7.6 m.
