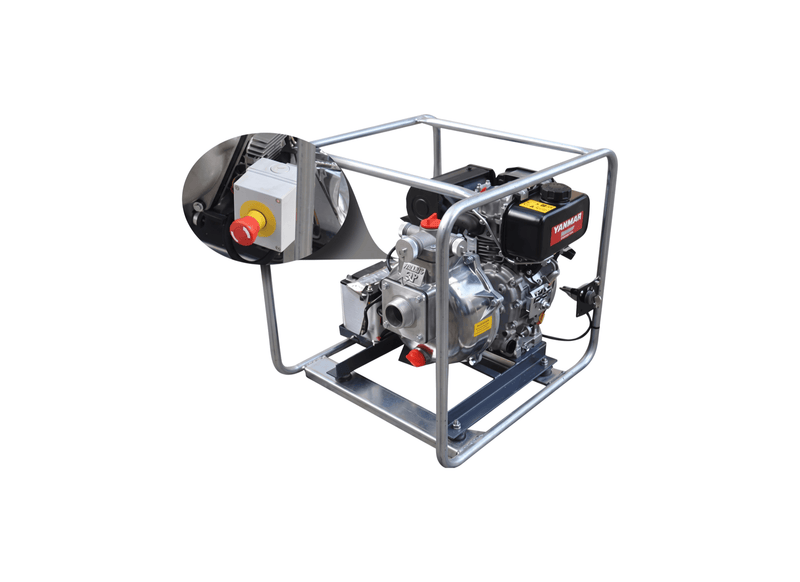

Aussie Pumps Viton Master QP303/L48EVITES Aluminium E-Stop Chemical Transfer Pump with Yanmar Diesel Engine
Australia-Wide
(08) 9240 2992
Official Aussie Pumps
Peace of Mind
Product Overview
High-flow safety duties are the focus of this large-port portable diesel configuration, which combines an Emergency Stop Switch (E-Stop) with an engine stop/start solenoid. Built for safe chemical mixing and diesel fuel transfer.
Hydraulic performance encompasses a maximum shut-off head of 30 m (43 PSI) at zero flow and an open-discharge flow capacity of up to 1,050 L/min at zero static head. Built with a marine-grade aluminium casing and volute, the wet end houses an open cast-iron impeller, Viton mechanical seal, and Viton check valve. Boxed mass: 70 kg. High-tensile body metallurgy resists outdoor weathering and harsh operating environments.
An electric-start Yanmar L48 (4.8 HP) diesel engine with stop/start solenoid and E-Stop button provides drive power (battery supplied separately). Plumbing features 3" x 3" BSP male ports with replaceable flanged suction porting, self-priming to 7.6 m. High-torque Yanmar diesel engine drive delivers strong fuel economy on site.
Full wrap-around roll frame protects pump components during site transit. Supported by complete technical assembly schematics, user guides, and genuine replacement component stockists through distributor networks across Australia for long-term site reliability. Complete technical assembly schematics and spare parts stockists support ongoing site operations.
Features- Integrated Emergency Stop Switch (E-Stop) delivers instant engine shutdown.
- Engine stop/start solenoid fitted for key-switch control and safety shutdown logic.
- High-capacity 3-inch porting achieves a maximum flow rate of 1,050 L/min.
- Open cast-iron impeller paired with a marine-grade aluminium volute and Viton seals.
- Electric-start Yanmar L48 (4.8 HP) diesel engine in a full roll frame (battery supplied separately).
- Self-priming internal wet end draws fluid from vertical suction depths up to 7.6 m.
- Includes a 5-year Aussie Pumps warranty on the pump body and a 2-year Yanmar diesel engine warranty.
SPECIFICATIONS
| Max Flow | 1050 L/Min |
| Max Head | 30 m |
| Power | Yanmar L48 Diesel Electric Start Engine |
| Suitable For | Fuel Transfer |
| Body Material | Marine Grade Aluminium |
| Inlet Size | 80 mm |
| Outlet Size | 80 mm |
| Warranty | 5 Years |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What site safety protection is provided by the factory emergency stop system?
Equipped with an external lockable emergency stop switch and engine stop solenoid, the Aussie Pumps Viton Gusher Mine Spec QP303 (QP303/L48EVITES) provides instant push-button shutdown to protect personnel during high-flow fuel and water transfer.
What total water volume and vertical discharge head are engineered?
Operating across field environments, the QP303/L48EVITES yields a maximum flow rate of approximately 1,050 L/min and develops a maximum head of approximately 30 m.
How are pipe and hose connections set up on the suction and discharge ports?
The QP303-L48EVITES connects to delivery networks through 3" x 3" BSP male threaded suction and discharge ports, accommodating standard hoses.
What chemical fluid compatibility is engineered into the internal Viton seals?
Viton mechanical seals and internal gaskets in the QP303 L48EVITES provide broad compatibility with diesel fuel, fertilizers, and agricultural chemicals.
What vertical intake capability is engineered for drafting from open waterways?
The QP303/L48EVITES lifts water from vertical depths up to approximately 7.6 m, supporting rapid setup at open water points.
