SKU: QP303/L48EVNF

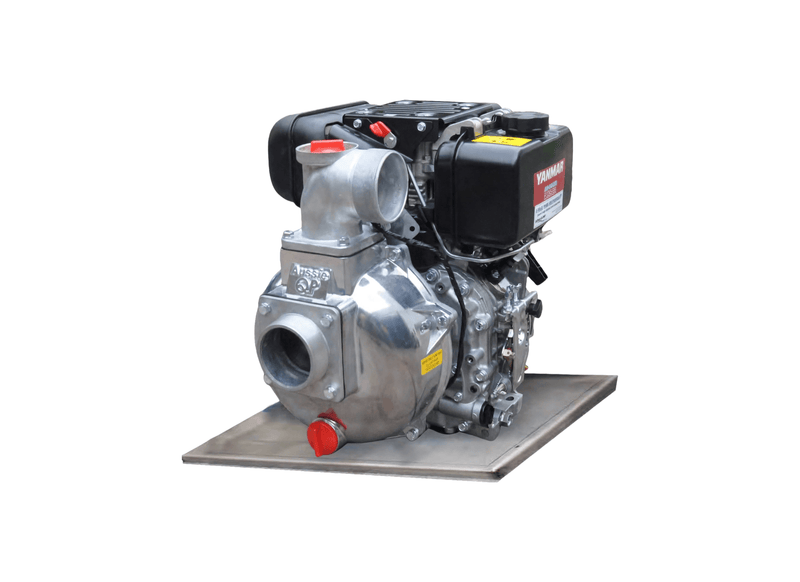

Aussie Pumps Viton Master QP303/L48EVNF Aluminium Base Mount E-Stop Chemical Transfer Pump with Yanmar Diesel Engine
Australia-Wide
(08) 9240 2992
Official Aussie Pumps
Peace of Mind
Product Overview
Key-switch control for bulk chemical and fuel transfer is provided by the engine stop/start solenoid in this base-only large-inch configuration. Built for safe chemical mixing and diesel fuel transfer across agricultural and commercial properties.
Hydraulic performance encompasses a maximum shut-off head of 30 m (43 PSI) at zero flow and an open-discharge flow capacity of up to 1,050 L/min at zero static head. Boxed equipment mass measures 65 kg in base trim. High-tensile body metallurgy resists outdoor weathering and operational casing wear.
Powered by an electric-start Yanmar L48 (4.8 HP) diesel engine with stop/start solenoid (battery supplied separately). Plumbing connections feature 3" x 3" BSP male ports with replaceable flanged suction porting, self-priming reliably from depths up to 7.6 m. High-torque Yanmar diesel engine drive delivers strong fuel economy on site.
Built with zinc-plated casing bolts and polycarbonate drain plugs to streamline field servicing during ag-chem batching operations. Supported by complete technical assembly schematics, user guides, and genuine replacement parts stockists across distributor networks. Complete technical assembly schematics and spare parts stockists support ongoing field operations.
Features- Engine stop/start solenoid fitted for convenient key-switch starting and shutdown.
- Frame-free base-mounted layout (NF) designed for machinery skid integration (no emergency stop switch).
- High-capacity 3-inch porting achieves a maximum flow rate of 1,050 L/min.
- Open cast-iron impeller paired with a marine-grade aluminium volute and Viton seals.
- Electric-start Yanmar L48 (4.8 HP) diesel engine (battery supplied separately).
- Self-priming internal wet end draws fluid from vertical suction depths up to 7.6 m.
- Includes a 5-year Aussie Pumps warranty on the pump body and a 2-year Yanmar diesel engine warranty.
SPECIFICATIONS
| Max Flow | 1050 L/Min |
| Max Head | 30 m |
| Power | Yanmar L48 Diesel Solenoid Start Engine |
| Suitable For | Quarry Refueling |
| Body Material | Marine Grade Aluminium |
| Inlet Size | 80 mm |
| Outlet Size | 80 mm |
| Warranty | 5 Years |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How does the cab-controlled stop solenoid assist service truck fuel transfer?
The integrated stop solenoid on the Aussie Pumps Viton Gusher Base Solenoid QP303VIT (QP303/L48EVNF) cuts engine fuel flow instantly via an auxiliary switch inside the driver cab, preventing tank overflows and saving turnaround time.
What chemical compatibility is provided by the factory Viton seal package?
Equipped with genuine Viton mechanical seals, the QP303/L48EVNF transfers agrochemicals, weedicides, and diesel without seal failure.
How much open fluid volume and head elevation are developed across duties?
The QP303-L48EVNF provides high-output fluid displacement with a maximum flow rate of approximately 1,050 L/min and a maximum head of approximately 30 m.
Which motor option powers the hydraulic end and how does it ignite?
Fitted for demanding operations, the QP303 L48EVNF houses a Yanmar L48 4.8HP electric-start diesel engine, started by electric key start with factory stop solenoid.
How does the low-profile base mounting assist service truck bodywork?
Eliminating the bulky external roll frame allows the QP303/L48EVNF to mount flush inside custom vehicle compartments and low-clearance service bodies.
